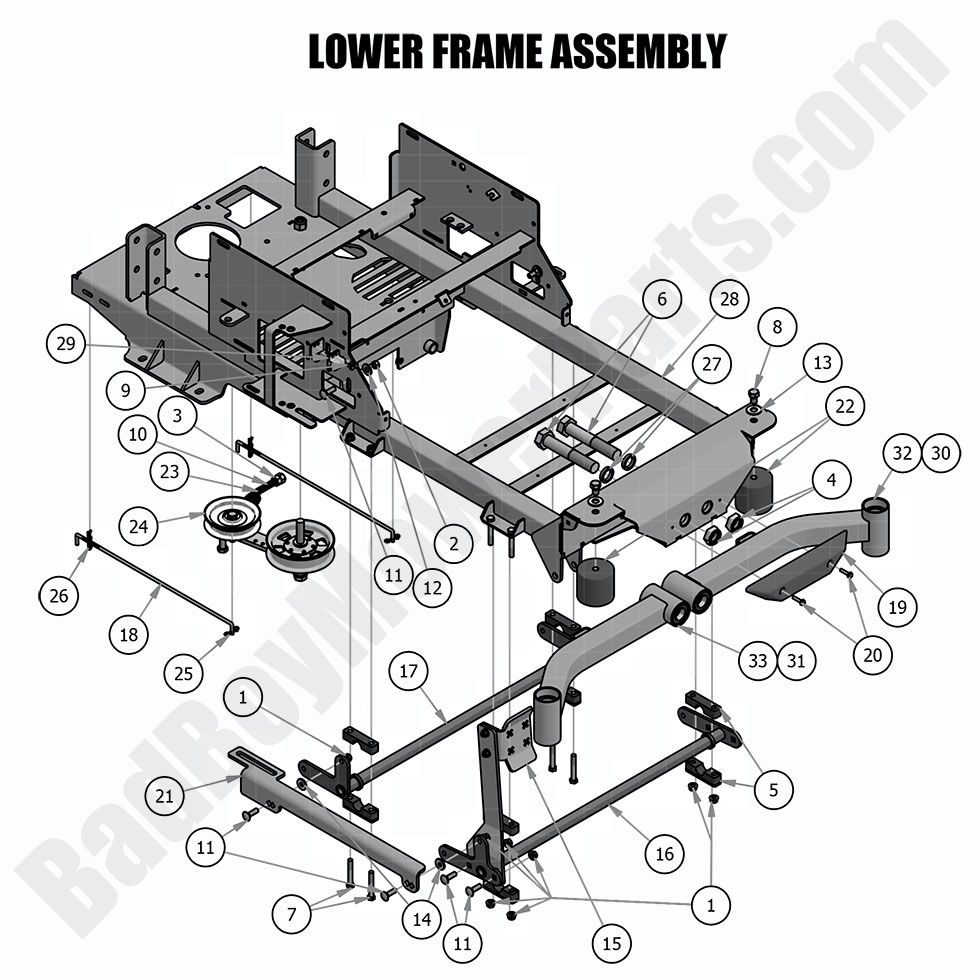

2019 Maverick - Lower Frame Assembly

2019 Maverick - Lower Frame Assembly

The 2019 Maverick Lower Frame Assembly provides the foundation for the mower’s structural integrity, ensuring stability and durability. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including frame reinforcements, mounting brackets, and securing hardware to maintain a solid structure. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for longevity and reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary lower frame components for seamless installation. A well-maintained frame absorbs vibrations, prevents misalignment, and enhances mower performance. We stock Bad Boy Parts Online for fast replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Maverick Lower Frame Assembly is now more affordable. Order today for superior stability and extended mower lifespan.

Bad Boy Mower Parts Lookup

2019 Maverick - Lower Frame Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
5 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
6 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
7 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
8 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
9 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
10 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
11 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
12 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
13 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
14 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
15 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
16 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
17 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
18 028-0070-00 028-0070-00 - Neutral Rod
$12.48
19 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
20 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
21 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
22 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
23 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
24 039-5944-05 039-5944-05 - Pump Idler Bracket Assy-EZT
$70.97
25 044-2004-00 044-2004-00 - Bow Pin
$2.99
26 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
27 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
28 070-5490-18 070-5490-18 - 2018-2020 Maverick Frame
$1099.99
29 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
30 250-2700-98 250-2700-98 - 2018-2020 Maverick Suspension Arm Assembly - Left Short - For 48" Deck Models Only
$70.57
31 250-2750-98 250-2750-98 - 2018-2020 Maverick Suspension Arm Assembly - Right Short - For 48" Deck Models Only
$70.57
32 250-2800-98 250-2800-98 - 2018-2020 Maverick Suspension Arm Assembly - Long Left - Not Used On 48" Deck Models
$93.64
33 250-2850-98 250-2850-98 - 2018-2020 Maverick Suspension Arm Assembly - Long Right - Not Used On 48" Deck Models
$93.64
