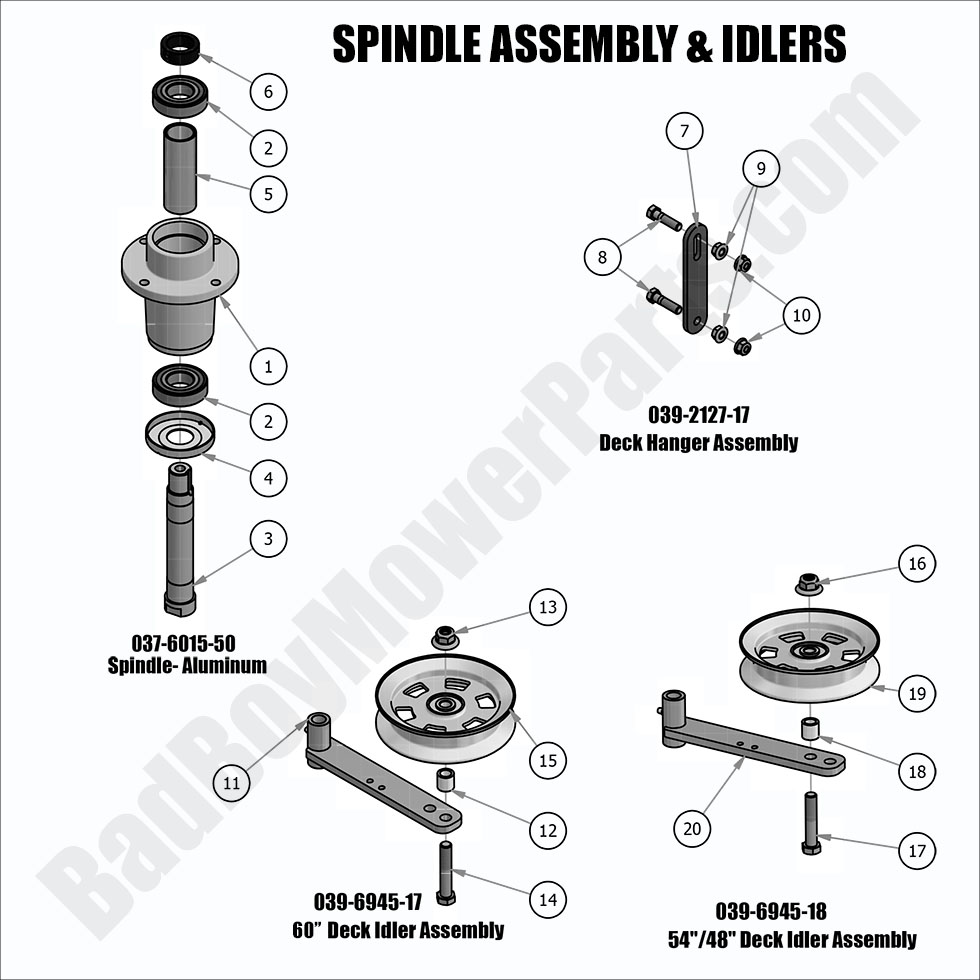

2019 Maverick - Spindle Assembly and Idlers

2019 Maverick - Spindle Assembly and Idlers

The 2019 Maverick Spindle Assembly and Idlers are crucial for smooth blade rotation and even cutting performance. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including spindles, bearings, idler pulleys, and securing hardware to maintain peak efficiency. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability and long-lasting use. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary spindle and idler components for fast installation. Proper maintenance prevents belt slippage, reduces vibration, and extends component lifespan. We stock Bad Boy Parts Online for fast replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Maverick Spindle Assembly and Idlers is now more affordable. Order today for optimal cutting performance and extended mower durability.

Bad Boy Mower Parts Lookup

2019 Maverick - Spindle Assembly and Idlers
  Position Number SKU Product Title Price
1.0 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
1 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$199.99
2 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
3 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
5 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
7.0 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
7 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
8 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11.0 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
11 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
12 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
14 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
15 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
16.0 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
