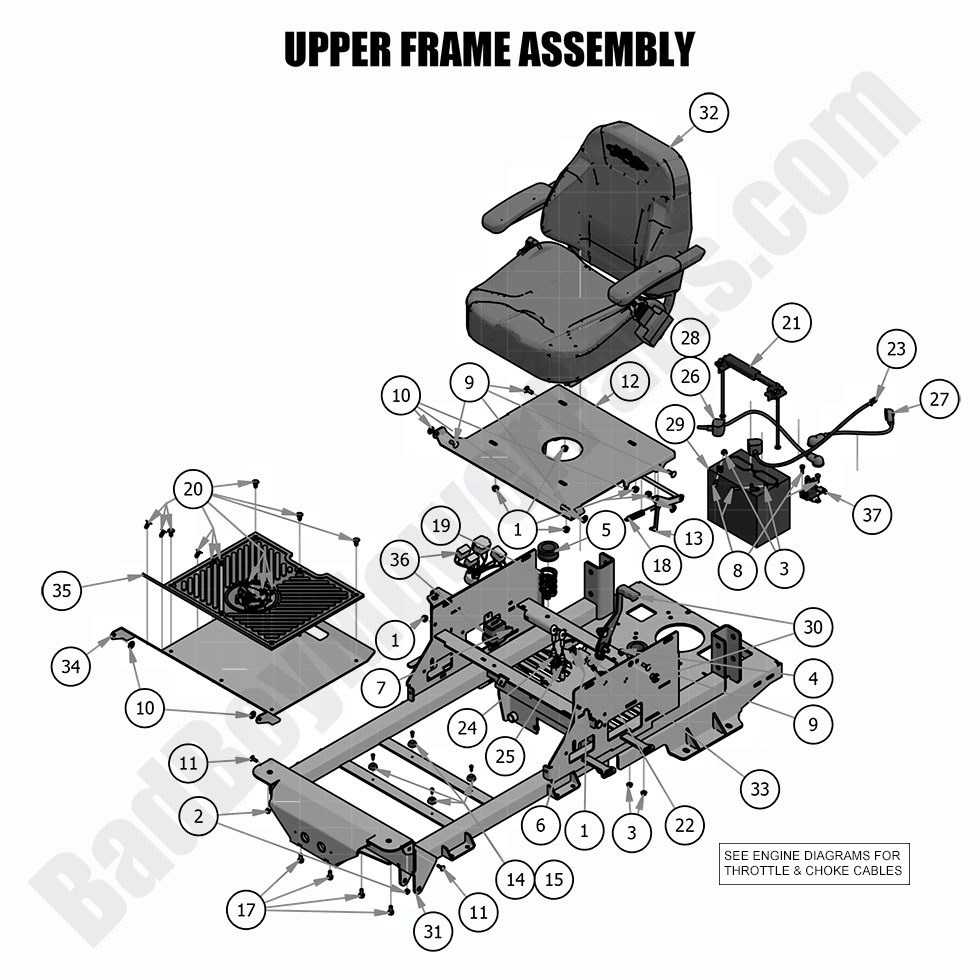

2019 Maverick - Upper Frame Assembly

2019 Maverick - Upper Frame Assembly

The 2019 Maverick Upper Frame Assembly provides critical structural support, ensuring the durability and stability of your mower. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including upper frame reinforcements, mounting brackets, and securing bolts for maximum strength. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for long-lasting use. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary upper frame components for fast installation. A well-maintained frame enhances operator safety, prevents misalignment, and increases mower longevity. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Maverick Upper Frame Assembly is now more budget-friendly. Order today to ensure a strong and stable mower structure for years to come.

Bad Boy Mower Parts Lookup

2019 Maverick - Upper Frame Assembly
  Position Number SKU Product Title Price
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
3 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
5 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
6 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
7 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
8 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
9 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
10 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
11 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
12 026-1016-00 026-1016-00 - Seat Plate
$102.11
13 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
14 029-4010-00 029-4010-00 - Button Bumper
$2.99
15 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
17 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
18 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
19 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
20 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
21 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
23 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
24 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
25 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
26 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
27 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
28 064-8060-00 064-8060-00 - 36" Red Battery Cable (See Models Used On For Details)
$20.93
30 069-1050-01 069-1050-01 - Brake Handle Assembly
$21.39
31 070-5490-18 070-5490-18 - 2018-2020 Maverick Frame
$1099.99
32 071-5080-18 071-5080-18 - 2019-2020 Maverick Seat/Compact Outlaw Seat
$599.99
33 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
34 079-3470-18 079-3470-18 - Floor Panel 2018-2024 Maverick, 2021-2024 ZT Elite
$106.99
35 081-4000-00 081-4000-00 - 2017-2021 Floor Mat (See Models Used On For Details)
$62.48
36 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
37 108-0001-00 108-0001-00 - Solenoid
$29.41
