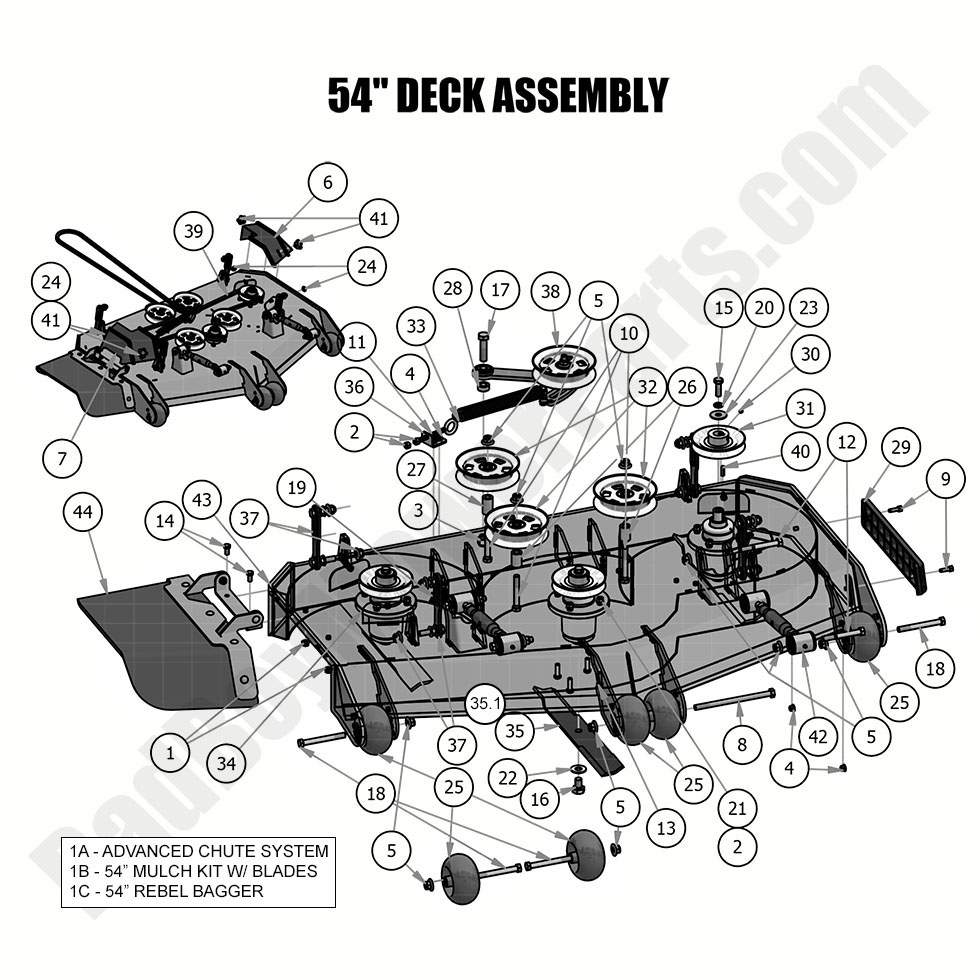

2019 Rebel - 54" Deck Assembly

2019 Rebel - 54" Deck Assembly

The 2019 Rebel 54" Deck Assembly is designed for precision cutting and durability in tough mowing conditions. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including deck spindles, blades, idler pulleys, and belt kits to keep your deck operating smoothly. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for long-term performance. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary deck components for fast installation. Regular maintenance ensures consistent cutting height, reduces vibration, and extends the life of your mower. We offer Bad Boy Parts Online for quick replacements and fast shipping. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rebel 54" Deck Assembly is now more affordable. Order today for high-performance cutting and long-lasting durability.

Bad Boy Mower Parts Lookup

2019 Rebel - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-5419-00 088-5419-00 - Advanced Chute System for 2019-2025 54" Outlaws
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 014-5050-00 014-5050-00 - 54" Deck Left Pulley Cover 2019-2022 Rebel & Rogue
$17.86
7 014-5051-00 014-5051-00 - 54" Deck Right Pulley Cover 2019-2025 Rebel & Rogue
$17.86
8 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
9 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
10 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
11 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
18 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
19 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
22 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
26 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
27 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
28 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
29 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
30 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
31 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
32 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
33 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
34 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
35.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
35 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
36 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
37 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
38 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
39 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
40 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
41 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
42 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
43 060-5551-19 060-5551-19 - 2019 54" Sloped Deck Weldment
$1099.99
44 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
