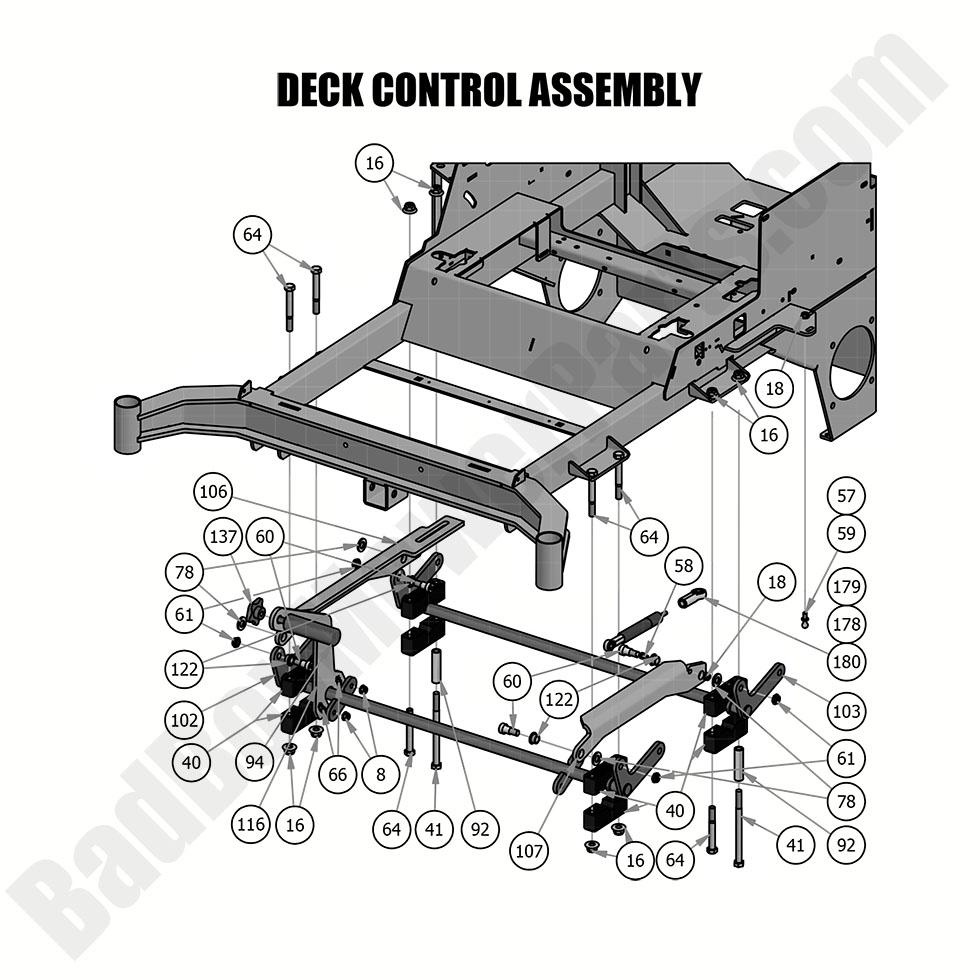

2019 Rebel - Deck Control Assembly

2019 Rebel - Deck Control Assembly

The 2019 Rebel Deck Control Assembly provides the necessary adjustments for precision cutting and ease of use. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including deck height controls, linkages, actuators, and securing hardware for reliable operation. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for longevity. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary deck control assembly components for seamless installation. Regular maintenance improves control response, prevents uneven cuts, and extends the mower’s lifespan. We stock Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rebel Deck Control Assembly is now more affordable. Order today for superior cutting height control and smoother operation.

Bad Boy Mower Parts Lookup

2019 Rebel - Deck Control Assembly
  Position Number SKU Product Title Price
8 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
40 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
41 018-0004-00 018-0004-00 - 1/2-13 X 7" Hex Bolt -
$5.49
57 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
58 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
59 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
60 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
61 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
64 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
66 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
78 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
92 025-0033-00 025-0033-00 - Deck Stop Spacer (See Models Used On For Details)
$8.79
94 026-0026-00 026-0026-00 - Knurled Foot Pedal
$39.03
102 028-0026-00 028-0026-00 - Front Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$119.41
103 028-0027-00 028-0027-00 - Rear Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$82.38
106 028-6075-00 028-6075-00 - Actuator Linkage-Right 2019-2021 Rebel, Renegade & Rogue
$53.49
107 028-6076-00 028-6076-00 - Actuator Linkage-Left 2019-2021 Rebel, Renegade & Rogue
$12.94
116 031-0120-00 031-0120-00 -2019-2021 Rebel/Rogue/Renegade Foot Lift Upright Lever (obsolete)
use part #031-0003-00
$17.11
122 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
137 045-6044-00 045-6044-00 - Foot Pedal Knob 1/2-13
$12.48
178 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
179 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
180 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40
