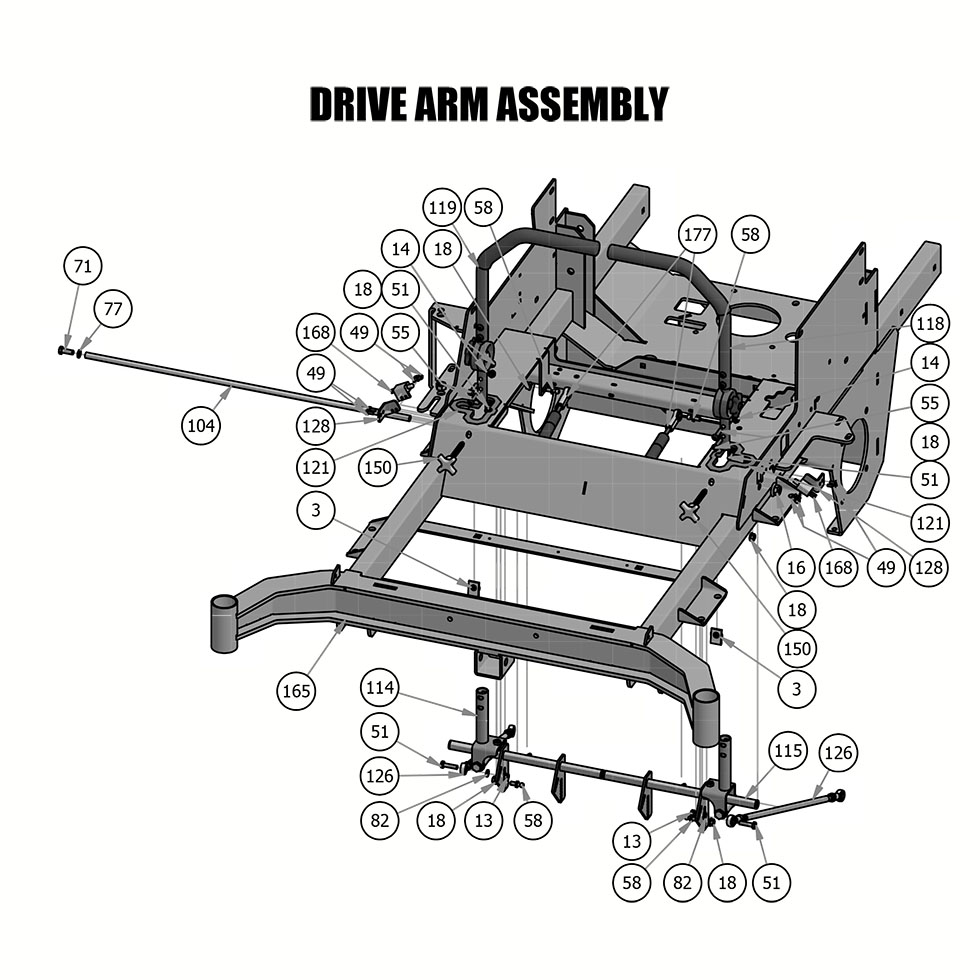

2019 Rebel - Drive Arm Assembly

2019 Rebel - Drive Arm Assembly

The 2019 Rebel Drive Arm Assembly ensures smooth power transfer and responsive steering for optimal mowing performance. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including drive arm assemblies, pivot joints, hydraulic fittings, and mounting brackets for long-term durability. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements built to last. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary drive arm assembly components for seamless installation. Routine maintenance enhances maneuverability, reduces vibration, and extends the life of hydraulic systems. We stock Bad Boy Parts Online for fast replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rebel Drive Arm Assembly is now more budget-friendly. Order today for improved control and smooth mowing operation.

Bad Boy Mower Parts Lookup

2019 Rebel - Drive Arm Assembly
  Position Number SKU Product Title Price
3 013-0021-00 013-0021-00 - Extruded Nut 3/8"-16 3/4"
$4.39
13 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
14 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
49 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
51 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
51 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
55 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
58 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
71 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
77 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
82 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
104 028-0051-00 028-0051-00 - Steering Actuator Rod 2019-2025 Rebel, Renegade & Rogue
$23.41
114 031-0030-19 031-0030-19 - R Series Right Arm Rod Assembly (See Models Used On For Details)
$85.17
115 031-0031-19 031-0031-19 - R Series Left Arm Rod Assembly, 2019-2023 Rebel/Renegade/Rogue
$85.17
118 031-9005-70 031-9005-70 - Left Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$132.68
119 031-9055-70 031-9055-70 - Right Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$115.31
121 032-0002-00 032-0002-00 - Snap-In Bushing 2019-2022 Rebel, Renegade & Rogue
$15.55
126 035-0003-00 035-0003-00 - 2019 - 2022 Rebel Push Rod Assembly
$42.58
128 039-2160-00 039-2160-00 - Arm Switch Bracket (See Models Used On For More Detail)
$13.90
150 057-5800-00 057-5800-00 - Speed Limiting Knob 3/8-16X 3"
$6.41
165 070-5371-19 070-5371-19 - 2019 - 2021 Rigid Frame Welded Assembly
$1299.99
168 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
177 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
