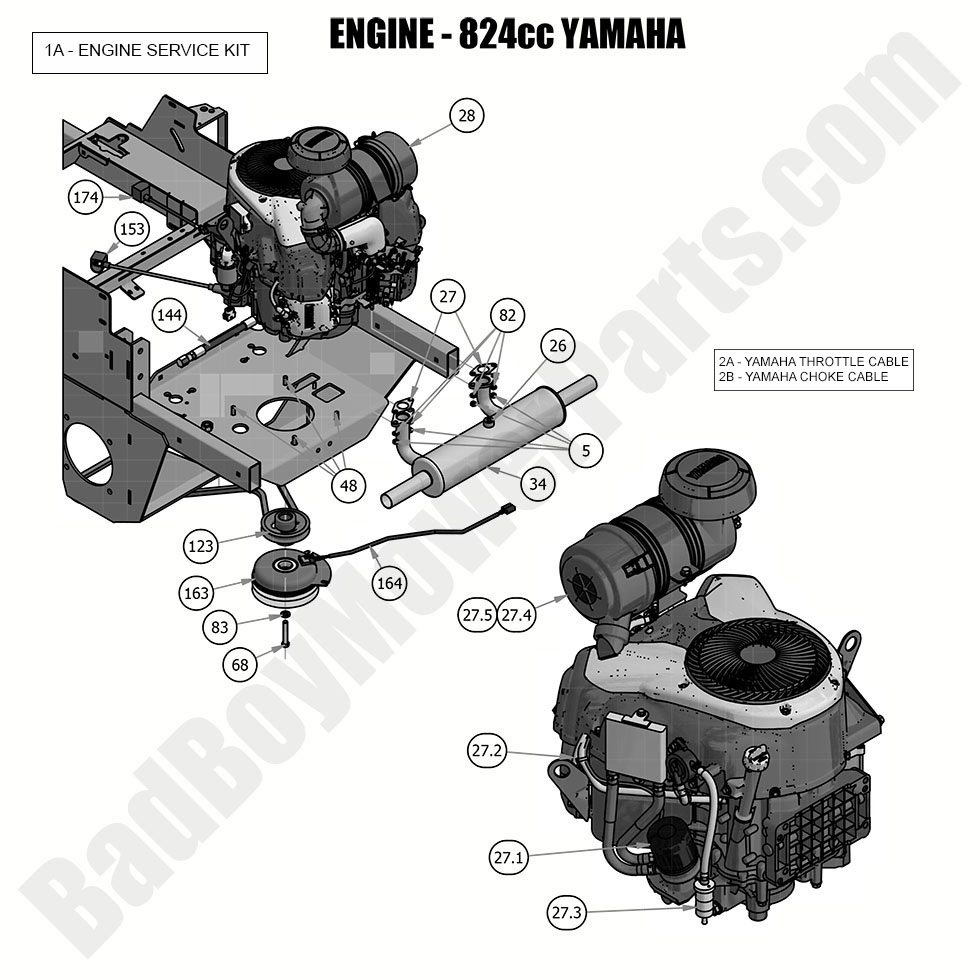

2019 Rebel - Engine - Yamaha

2019 Rebel - Engine - Yamaha

The 2019 Rebel Engine - Yamaha delivers high-end performance and efficiency, requiring regular maintenance for long-lasting operation. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts, including oil filters, fuel pumps, air intake components, and cooling system parts for optimal efficiency. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary Yamaha engine components for easy installation. Routine maintenance prevents overheating, enhances fuel economy, and prolongs engine life. We provide Bad Boy Parts Online for fast replacements and seamless ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rebel Engine - Yamaha is now more budget-friendly. Order today for superior power and long-term mower performance.

Bad Boy Mower Parts Lookup

2019 Rebel - Engine - Yamaha
  Position Number SKU Product Title Price
1A 063-2000-11 063-2000-11 - Yamaha 824cc Engine Service Kit
$134.86
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
26 015-0050-01 015-0050-01 - O2 Bung Plug 12mm x 1.25
$9.89
27.1 015-0053-02 015-0053-02 - 2017-2022 Yamaha Oil Filter
$34.23
27.2 015-0053-06 015-0053-06 - 2017-2022 Yamaha Spark Plug
$10.99
27.3 015-0053-21 015-0053-21 - Fuel Filter for Yamaha MX825VJ7X6
$10.99
27.4 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
27.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
27 015-0053-01 015-0053-01 - 2017-2022 Yamaha Exhaust Gasket
$8.01
28 015-0076-00 015-0076-00 - Yamaha Engine-27.5hp Carbureted
$3981.37
34 015-1015-00 015-1015-00 - 2019 - 2022 Rebel/Rogue Yamaha 824 EFI/Carb Muffler Catalytic Combustion # 582984-MUF17
$108.90
48 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
68 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
82 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
83 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
123 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
144 051-5403-00 051-5403-00 - Yamaha Oil Drain
$35.84
153 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
163 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
164 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
174 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
