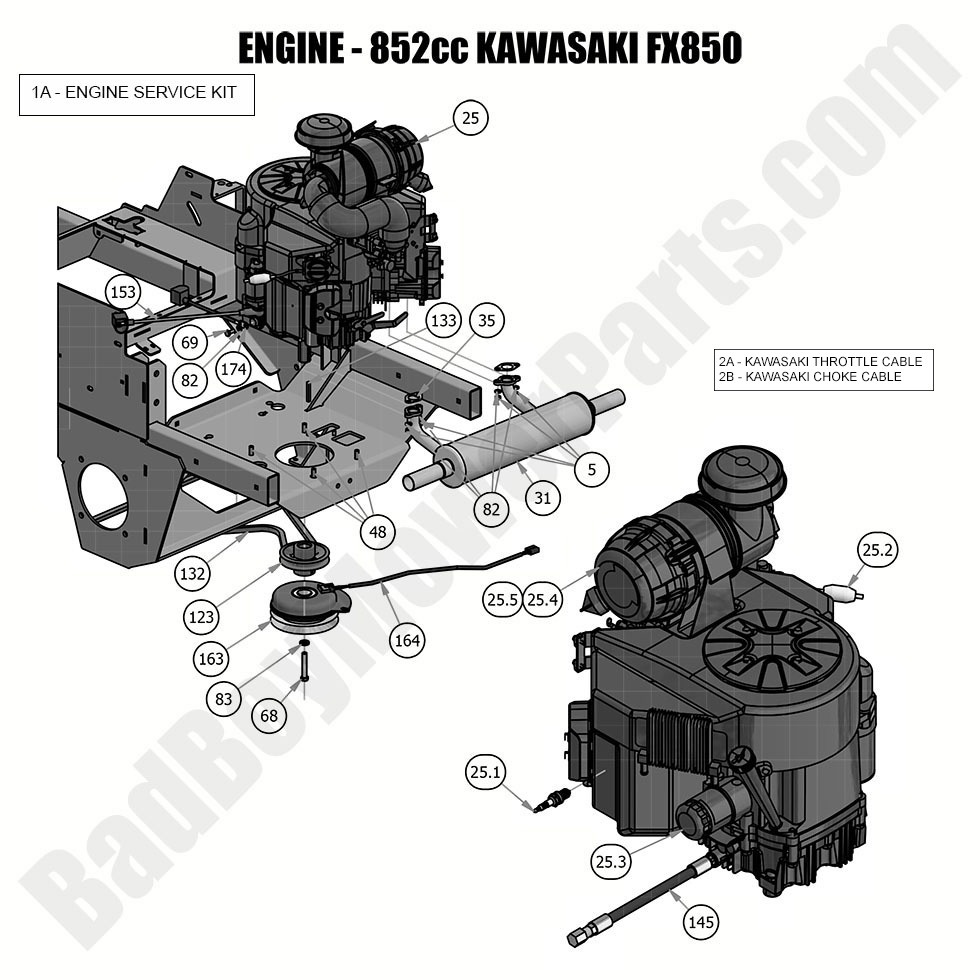

2019 Rebel - Engine - Kawasaki FX850

2019 Rebel - Engine - Kawasaki FX850

The 2019 Rebel Engine - Kawasaki FX850 delivers exceptional power, making proper maintenance essential for long-term reliability. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including oil filters, spark plugs, fuel lines, and cooling system components to keep your Kawasaki FX850 engine running smoothly. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability and efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct engine components for seamless installation. Regular engine upkeep prevents overheating, improves fuel efficiency, and extends the lifespan of your mower. We stock Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rebel Engine - Kawasaki FX850 is now more affordable. Order today for powerful performance and reliable operation.

Bad Boy Mower Parts Lookup

2019 Rebel - Engine - Kawasaki FX850
  Position Number SKU Product Title Price
1A 063-2000-02 063-2000-02 - Kawasaki FX850 Engine Service Kit
$124.74
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
25.0 015-0031-00 015-0031-00 - Kaw Engine FX-850V-AS15R
$3395.00
25.1 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
25.2 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
25.3 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
25.4 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
25.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
31 015-1011-00 015-1011-00 - Kawasaki FX850 Muffler for Rebel/Rebel X and Rogue
$199.00
35 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
48 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
68 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
69 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
82 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
83 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
123 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
132 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
133 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
145 051-5407-00 051-5407-00 - 12" Kawasaki Oil Drain FX850 / FX1000/ FX730
$42.58
153 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
163 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
164 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
174 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
