2019 Rebel - Engine - Kawasaki FX1000

2019 Rebel - Engine - Kawasaki FX1000

The 2019 Rebel Engine - Kawasaki FX1000 provides exceptional power and endurance, making proper upkeep crucial. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including oil filters, fuel injectors, cooling fans, and air filters to optimize engine function. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements for superior performance. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct Kawasaki FX1000 engine components for easy installation. Routine maintenance helps prevent mechanical issues, ensures efficient fuel consumption, and extends engine longevity. We stock Bad Boy Parts Online for fast replacements and convenient ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rebel Engine - Kawasaki FX1000 is now more budget-friendly. Order today to maximize power and keep your mower operating at its best.

Bad Boy Mower Parts Lookup

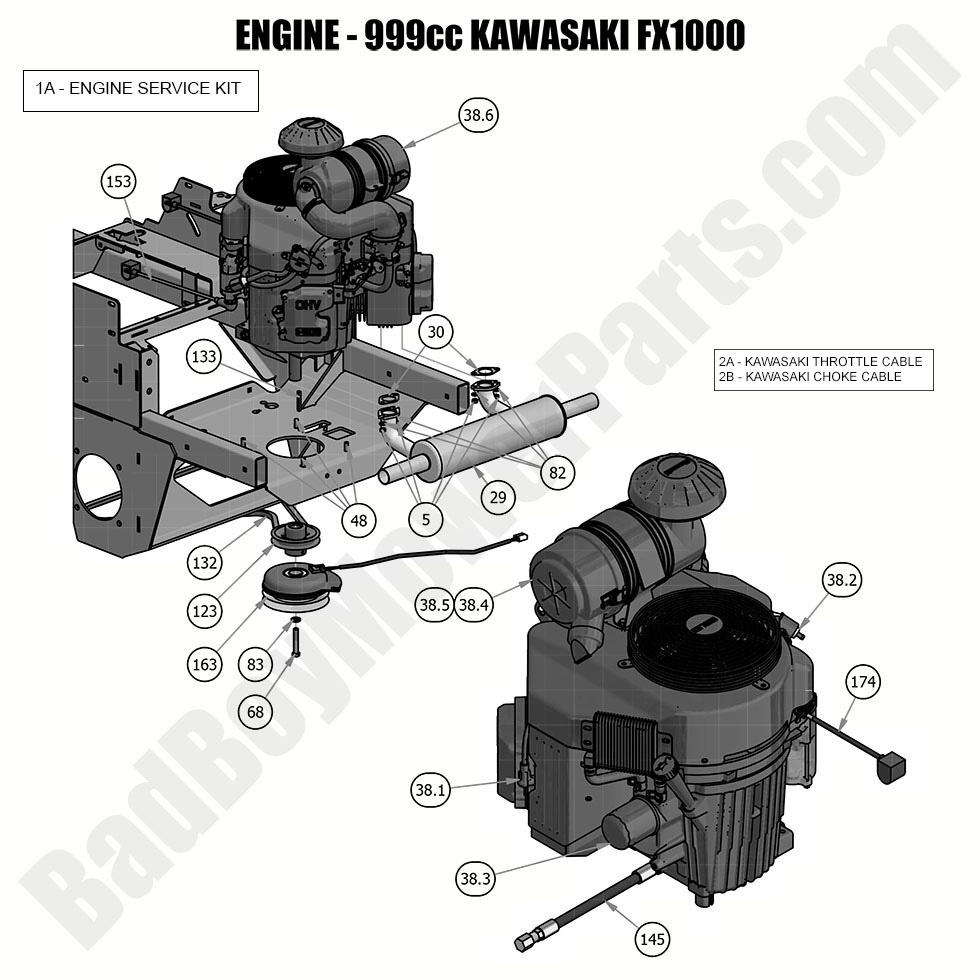

2019 Rebel - Engine - Kawasaki FX1000
  Position Number SKU Product Title Price
1A 063-2000-20 063-2000-20 - Kawasaki FX1000 Engine Service Kit
$123.99
2A 055-8022-00 055-8022-00 - Throttle Cable 35hp Kawasaki (NON-EFI) and 36 Vanguard Engines (NON-EFI) 2019-2025 Rebel & Rogue
$39.03
2B 054-8019-00 054-8019-00 - Choke Cable For 2019-2025 36HP Vanguard and FX1000 Engines
$26.54
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
29 015-1010-00 015-1010-00 - Muffler for Kawasaki FX1000V/EFI Engines (See Models Used On For Details)
$199.00
30 015-1010-01 015-1010-01 - Exhaust Gasket for FX1000V Kawasaki
$8.79
38.0 015-9911-00 015-9911-00 - 2019 - 2024 FX1000V Kawasaki Engine
$2799.99
38.1 515-0011-00 515-0011-00 Spark Plug for FX1000
$5.99
38.2 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
38.3 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
38.4 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
38.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
48 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
82 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
83 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
123 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
132 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
133 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
145 051-5407-00 051-5407-00 - 12" Kawasaki Oil Drain FX850 / FX1000/ FX730
$42.58
153 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
163 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
174 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
