2019 Rebel - Engine - Kohler CV752

2019 Rebel - Engine - Kohler CV752

The 2019 Rebel Engine - Kohler CV752 is designed for peak performance and longevity, making routine servicing a necessity. At BadBoyMowerParts.com, we offer top-quality Bad Boy Mower Parts, including oil filters, air intake components, ignition coils, and fuel system parts to optimize engine efficiency. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct Kohler CV752 engine components for seamless installation. Regular maintenance prevents fuel system issues, enhances power output, and ensures smooth operation. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rebel Engine - Kohler CV752 is now more cost-effective. Order today for a dependable, high-powered mowing experience.

Bad Boy Mower Parts Lookup

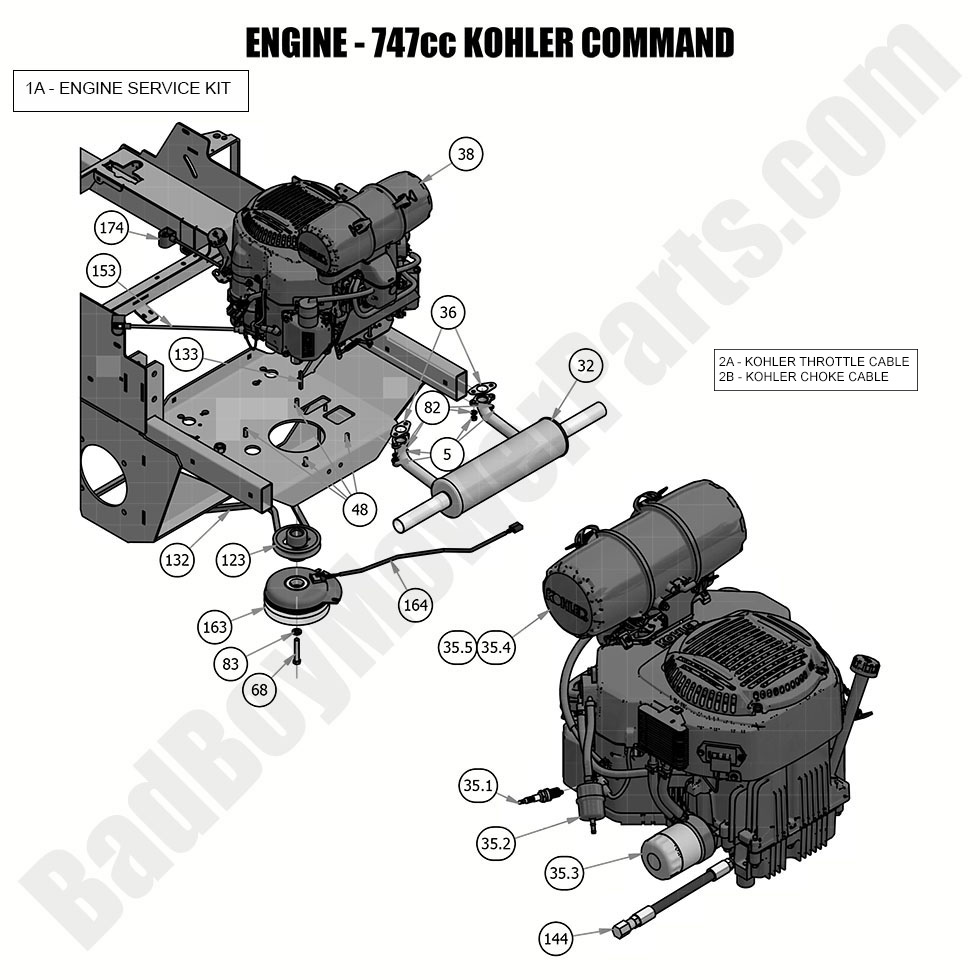

2019 Rebel - Engine - Kohler CV752
  Position Number SKU Product Title Price
1A 063-2000-09 063-2000-09 - Kohler Command (Non-EFI Models)
$121.25
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
32 015-1013-00 015-1013-00 - 2019 - 2022 Rebel Kohler CV752 Muffler Catalytic Combustion # 582937-MUF1701 REV 3
$199.00
35.1 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
35.2 063-5001-00 063-5001-00 - Kohler Fuel Filter
$19.25
35.3 063-5400-00 063-5400-00 - Oil Filter (Long) for Kohler Engines
$22.46
35.4 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
35.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
36 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
48 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
68 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
82 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
83 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
123 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
132 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
133 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
144 051-5403-00 051-5403-00 - Yamaha Oil Drain
$35.84
153 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
163 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
164 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
174 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
