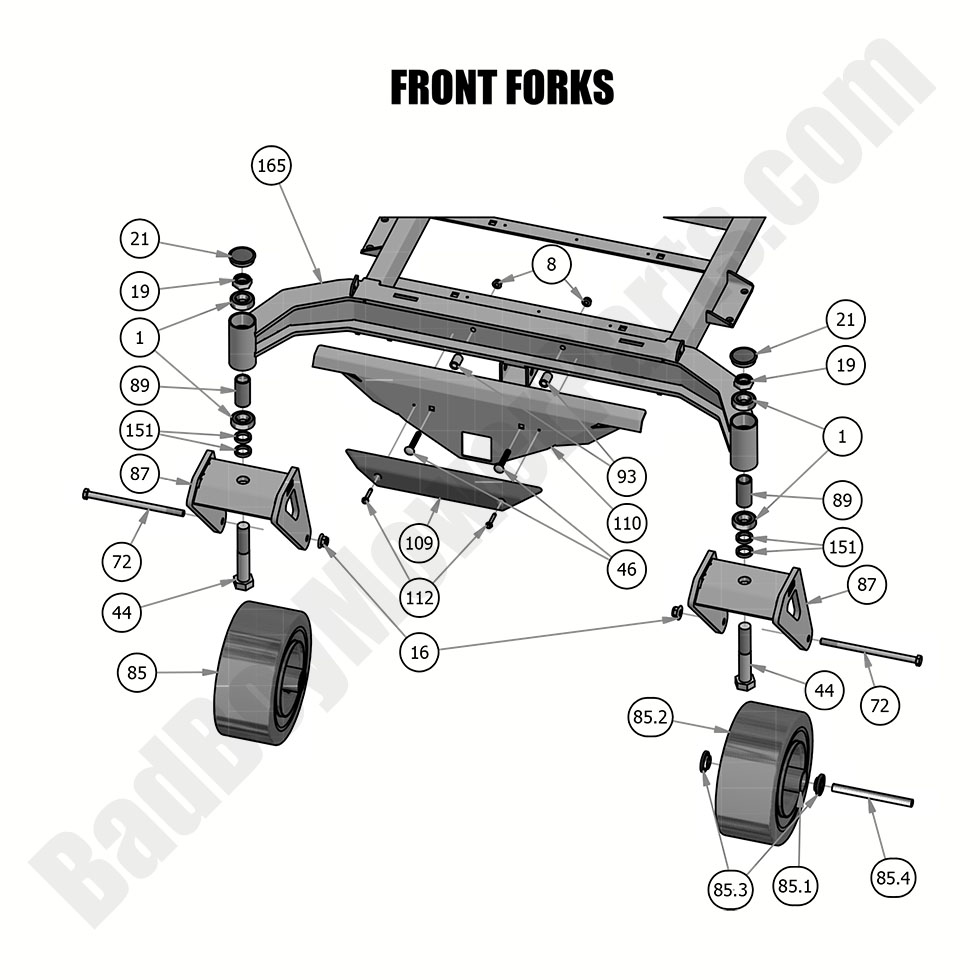

2019 Rebel - Front Forks

2019 Rebel - Front Forks

The 2019 Rebel Front Forks provide critical support for maneuverability and stability, making regular maintenance essential. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including front forks, bushings, caster wheels, and securing hardware to ensure smooth steering. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements built for durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary front fork components for seamless installation. Proper maintenance improves control, reduces vibrations, and extends the lifespan of your mower’s front suspension system. We stock Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rebel Front Forks is now more affordable. Order today for improved handling and enhanced mowing comfort.

Bad Boy Mower Parts Lookup

2019 Rebel - Front Forks
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
8 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
19 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
21 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
44 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
46 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
72 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
85.0 022-3085-00 022-3085-00 - 13x6.50-6 LARGE BORE-Black Front Assembly
$112.99
85.1 022-3090-00 022-3090-00 - Black Front Rim Only (See Models Used For Detail) (obsolete)
use part #022-3085-00
$112.99
85.2 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
85.3 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
85.4 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
87 023-0030-00 023-0030-00 - 2019-2021 Rebel Front Fork Weldment
$139.31
89 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
93 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
109 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
110 029-8019-00 029-8019-00 - Rigid Front Bumper Plate 2019-2022 Rebel
$53.49
112 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
151 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
165 070-5371-19 070-5371-19 - 2019 - 2021 Rigid Frame Welded Assembly
$1299.99
