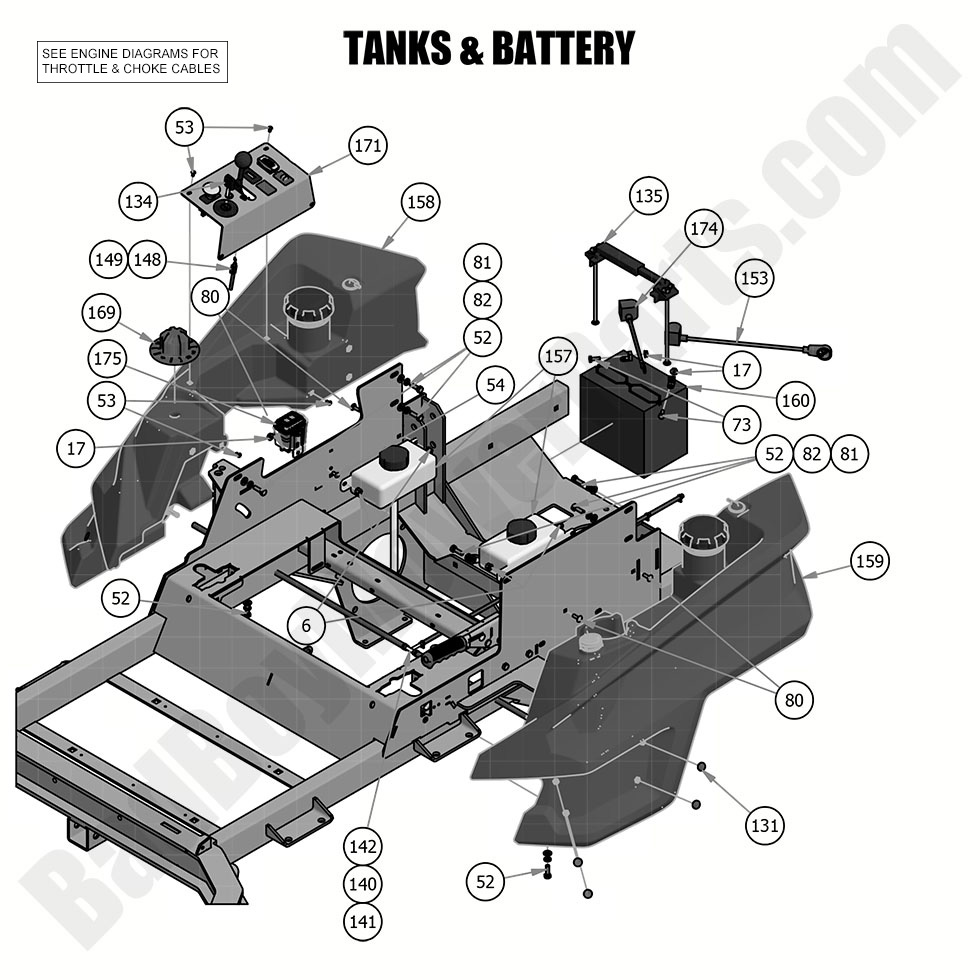

2019 Rebel - Tanks and Battery

2019 Rebel - Tanks and Battery

The 2019 Rebel Tanks and Battery system ensures reliable fuel storage and consistent electrical power for seamless mowing. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including fuel tanks, gas caps, batteries, wiring harnesses, and securing hardware to maintain optimal performance. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for longevity. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary fuel tank and battery components for fast installation. Regular maintenance prevents fuel leaks, ensures reliable engine starting, and prolongs battery life. We offer Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rebel Tanks and Battery system is now more cost-effective. Order today for efficient fuel management and reliable electrical performance.

Bad Boy Mower Parts Lookup

2019 Rebel - Tanks and Battery
  Position Number SKU Product Title Price
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
17 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
52 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
53 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
54 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
73 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
80 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
81 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
82 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
131 040-6081-00 040-6081-00 - 3/16 x.48 Christmas Tree Nylon Black
$2.99
134 042-9000-00 042-9000-00 - Ignition Key
$4.06
135 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
140 051-2019-22 051-2019-22 - Rebel Rogue Renegade Fuel Line for Vanguard and Yamaha Units
$44.93
141 051-2019-28 051-2019-28 - Rebel Rogue Renegade Fuel Line for Kohler
$53.49
142 051-2019-32 051-2019-32 - Rebel Rogue Fuel Line for Kawasaki Units
$53.49
153 064-5301-01 064-5301-01 - 12" Red Battery Cable for Rebel/Rebel X
$12.94
157 067-8085-19 067-8085-19 - Hydro Tank Assembly-Rebel
$49.92
158 067-9950-50 067-9950-50 - Rebel/Rogue/Renegade Right Fuel Tank
$341.99
159 067-9960-50 067-9960-50 - Rebel/Rogue/Renegade Left Fuel Tank
$262.99
169 077-9002-00 077-9002-00 - Deck Dial 1.5 to 5.5 2019-2022 Rebel
$31.17
171 079-3481-19 079-3481-19 - Rebel/Rogue Control Panel Assy (See Models Used On for Detail)
$109.00
174 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
175 086-2050-19 086-2050-19 - Wiring Harness-No Display 2019-2025 Rebel & Rogue
$363.44
