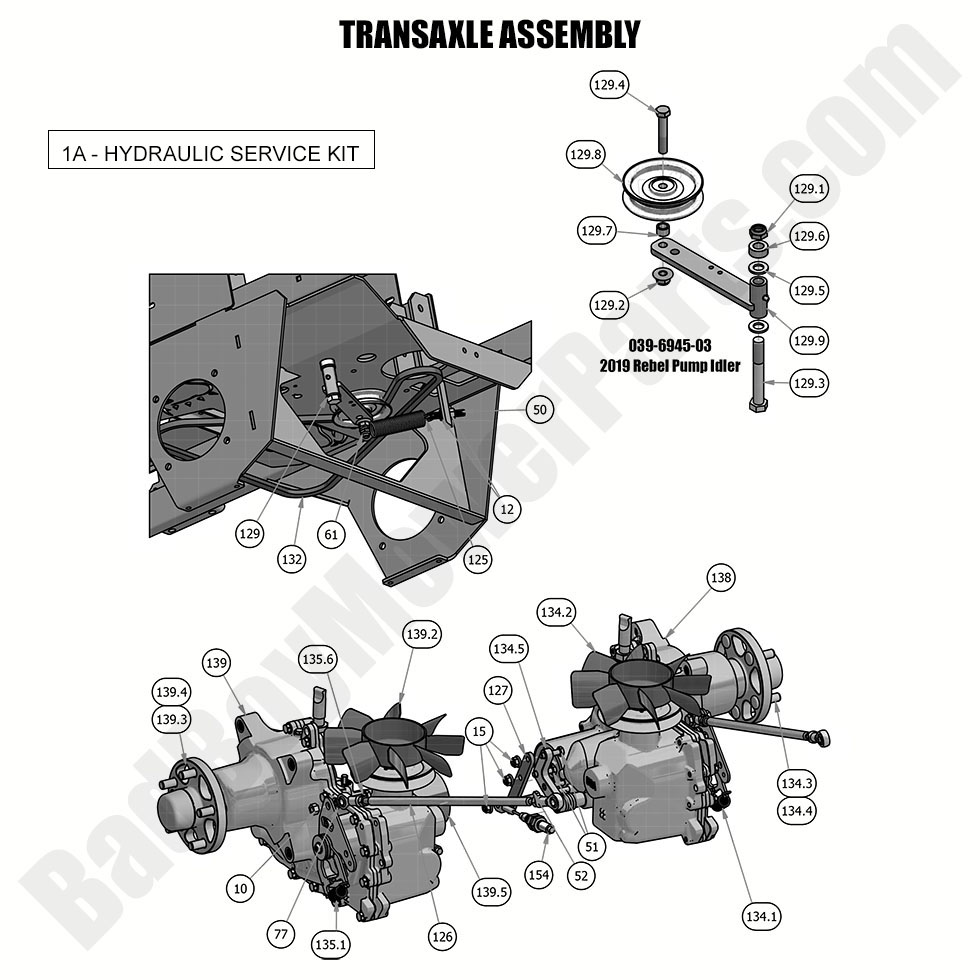

2019 Rebel - Transaxle Assembly

2019 Rebel - Transaxle Assembly

The 2019 Rebel Transaxle Assembly ensures smooth power transfer and superior traction for optimal mowing performance. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including transaxles, hydraulic pumps, drive belts, and securing hardware to maintain mower efficiency. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for long-term reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct transaxle assembly components for fast installation. Proper transaxle maintenance enhances maneuverability, improves speed control, and prolongs mower lifespan. We provide Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rebel Transaxle Assembly is now more affordable. Order today for smooth operation and extended durability.

Bad Boy Mower Parts Lookup

2019 Rebel - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4050-00 085-4050-00 - Hydro-Gear ZT4400 Hydro Service Kit
$124.44
10 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
12 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
15 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
50 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
51 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
52 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
61 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
77 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
125 034-9050-00 034-9050-00 - Pump Idler Spring - Big Diameter
$17.11
126 035-0003-00 035-0003-00 - 2019 - 2022 Rebel Push Rod Assembly
$42.58
127 039-2135-00 039-2135-00 - Brake Adapter Bracket - 4400 Transaxle (See Models Used On)
$7.69
129.0 039-6945-03 039-6945-03 - Pump Idler Assembly
$53.45
129.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
129.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
129.3 018-5309-00 018-5309-00 - 5/8-11 x 4-1/2 Hex Bolt
$2.99
129.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
129.5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
129.6 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
129.7 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
129.8 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
129.9 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
132 041-8050-00 041-8050-00 - Pump Belt (See Models Used On For Detail)
$80.24
134.1 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
134.2 050-1025-00 050-1025-00 - Fan/Pulley Kit For ZT-4400 Transaxle (See Models Used On For Details)
$109.46
134.3 050-2082-00 050-2082-00 - Hub for 4400 Transaxle
$156.99
134.4 050-8003-00 050-8003-00 - Seal Kit for 4400 Series Outlaw Transaxle
$106.48
134.5 063-1070-00 063-1070-00 - Hydraulic Filter for ZT4400 Transaxle
$36.37
138.0 050-1000-00 050-1000-00 - 4400 Transaxle-Left
$909.99
139.0 050-1050-00 050-1050-00 - 4400 Transaxle - Right
$909.99
154 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
