2019 Renegade - Diesel - Floorboard, ROPS & Radiator

2019 Renegade - Diesel - Floorboard, ROPS & Radiator

The 2019 Renegade - Diesel Floorboard, ROPS & Radiator components ensure operator safety, stability, and cooling efficiency. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts, including radiator cooling systems, rollover protection structures (ROPS), and secure floorboards for durability. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built to last. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary parts for seamless installation. Routine maintenance prevents overheating, ensures operator protection, and enhances mower performance. We stock Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Renegade - Diesel Floorboard, ROPS & Radiator system is now more affordable. Order today for enhanced safety and long-term cooling efficiency.

Bad Boy Mower Parts Lookup

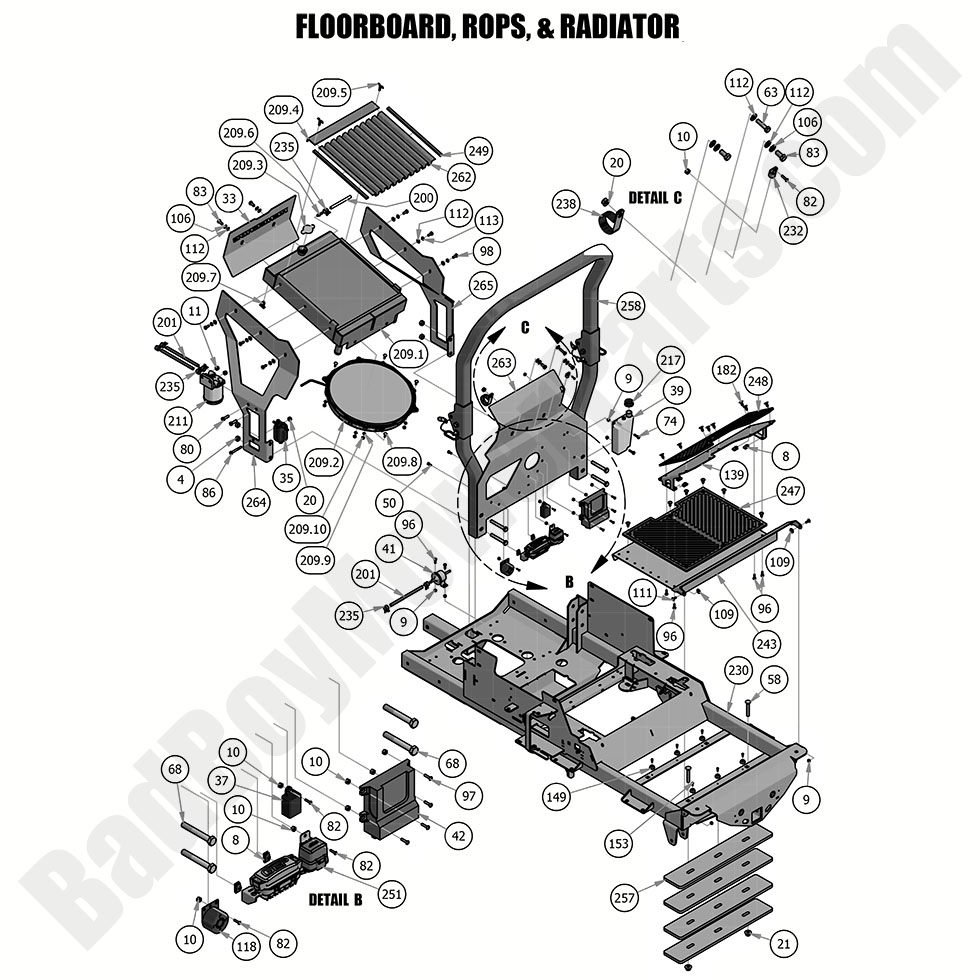

2019 Renegade - Diesel - Floorboard, ROPS & Radiator
  Position Number SKU Product Title Price
4 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
8 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
9 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
10 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
11 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
20 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
33 014-5065-00 014-5065-00 - Upper Rear Cover 2019-2021 Renegade Diesel
$21.39
35 015-0007-00 015-0007-00 - Caterpillar Fuel Bowl Kit
$150.99
37 015-0015-00 015-0015-00 - Auto Shut Down for Cat Diesels
$699.99
39 015-0111-00 015-0111-00 - Overflow Reservoir-27 Kaw
$74.89
41 015-4000-00 015-4000-00 - Fuel Pump for 1100cc Diesel
$331.72
50 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
58 018-0067-00 018-0067-00 - 1/2-13 x 3 Carriage Bolt
$3.29
63 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
68 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
74 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
80 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
82 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
83 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
86 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
96 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
97 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
98 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
106 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
109 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
111 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
112 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
113 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
118 021-8059-00 021-8059-00 - Heat Warning Piezo Buzzer
$36.37
139 026-2230-00 026-2230-00 - Adjustable Foot Plate 2019-2022 Rebel, Renegade & Rogue
$70.97
149 029-4010-00 029-4010-00 - Button Bumper
$2.99
153 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
182 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
200 051-8069-00 051-8069-00 - 5/16 Clear Hose (Priced Per Foot)
$2.99
201 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
209.1 061-5001-00 061-5001-00 - 2019 Diesel Radiator
$1399.99
209.2 014-3005-00 014-3005-00 - Electric Fan for Radiator (See Models Used On For Details)
$729.99
209.3 015-0104-00 015-0104-00 - CAT Diesel Radiator Cap
$31.22
209.4 026-2008-00 026-2008-00 - Screen Retention Plate for 2019 Diesel Radiator Ki
$26.74
209.5 030-0090-00 030-0090-00 - 1/4-20 x 3/4 Thumb Screw
$7.36
209.6 024-0015-00 024-0015-00 - 1/4 Barb to 3/16 NPT Overflow Fitting fits the 2019-2024 Renegade Diesel Radiator
$16.04
209.7 015-0098-00 015-0098-00 - 1/4 NPT Drain Plug for the Radiator 2019-2025 Renegade Diesel
$8.79
209.9 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
209.10 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
209 061-5001-98 061-5001-98 - 2019 Diesel Radiator Kit No Longer Available
Obsolete.
211 063-2011-00 063-2011-00 - CAT Fuel Filter - Big
$29.95
217 066-8075-00 066-8075-00 - Reservoir Tank Cap-Overflow Tank
$6.48
230 070-5374-19 070-5374-19 - Horizontal Diesel Renegade Frame
$1299.99
232 072-0001-00 072-0001-00 - 3/8 Cable Clamp-Black Nylon
$5.49
235 072-8067-00 072-8067-00 - 5/8 Hose Clamp SS
$2.99
238 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
243 079-3155-00 079-3155-00 - Floorboard (See Models Used On For Detail)
$109.99
247 081-0050-00 081-0050-00 - Floor Mat 2019-2022 Rebel, Renegade & Rogue
$78.10
248 081-0051-00 081-0051-00 - Foot Plate Mat 2019-2024 Rebel, Renegade & Rogue
$78.10
249 084-4015-00 084-4015-00 - Rubber Trim
$10.99
251 086-0247-19 086-0247-19 - 2019-2021 24.7 Renegade Diesel Harness
$509.41
257 088-1999-00 088-1999-00 - Outlaw Counter Weight (See Models Used On For Details)
$74.99
258 089-0006-00 089-0006-00 - 2019-2024 2x2 R SERIES Outlaw Folding Rops Femco # SIP3980
$836.43
262 094-5088-00 094-5088-00 - Radiator Screen Diesel
$129.99
263 201-8025-00 201-8025-00 - 2019 Diesel Radiator Mount-Front
$42.79
264 201-8026-00 201-8026-00 - 2019 Diesel Radiator Mount-Right
$42.79
265 201-8027-00 201-8027-00 - 2019 Diesel Radiator Mount-Left
$43.86
