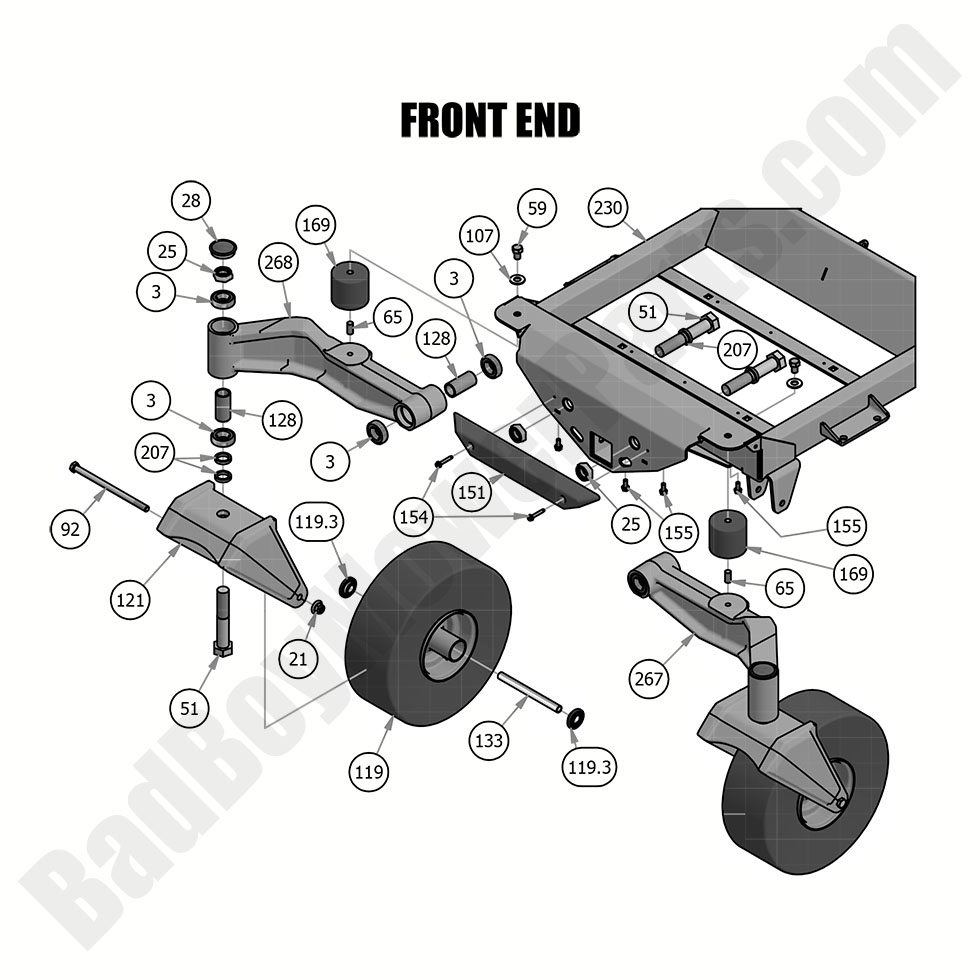

2019 Renegade - Diesel - Front End

2019 Renegade - Diesel - Front End

The 2019 Renegade - Diesel Front End system plays a critical role in handling, steering precision, and overall mower stability. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including front forks, bushings, caster wheels, and securing hardware to maintain smooth operation. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability and maneuverability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct front-end components for seamless installation. Proper maintenance enhances control, reduces vibration, and extends the lifespan of suspension components. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Renegade - Diesel Front End is now more affordable. Order today for superior control and smoother mowing performance.

Bad Boy Mower Parts Lookup

2019 Renegade - Diesel - Front End
  Position Number SKU Product Title Price
3 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
21 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
25 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
28 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
51 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
59 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
65 018-2009-00 018-2009-00 - 1/2-13 x 1" Stud
$5.82
92 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
107 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
119.0 022-0003-00 022-0003-00 - 15x6.00-6 No-Flat Black Front Assembly
$159.99
119.3 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
121 023-0004-00 023-0004-00 - 2019-2020 Renegade & Rogue Front Fork
$169.99
128 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
133 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
151 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
154 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
155 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
169 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
207 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
230 070-5374-19 070-5374-19 - Horizontal Diesel Renegade Frame
$1299.99
267 250-0032-00 250-0032-00 - Left Front I-Beam 2019-2021 Renegade & Rogue
$248.99
268 250-0033-00 250-0033-00 - Right Front I-Beam 2019-2021 Renegade & Rogue
$320.99
