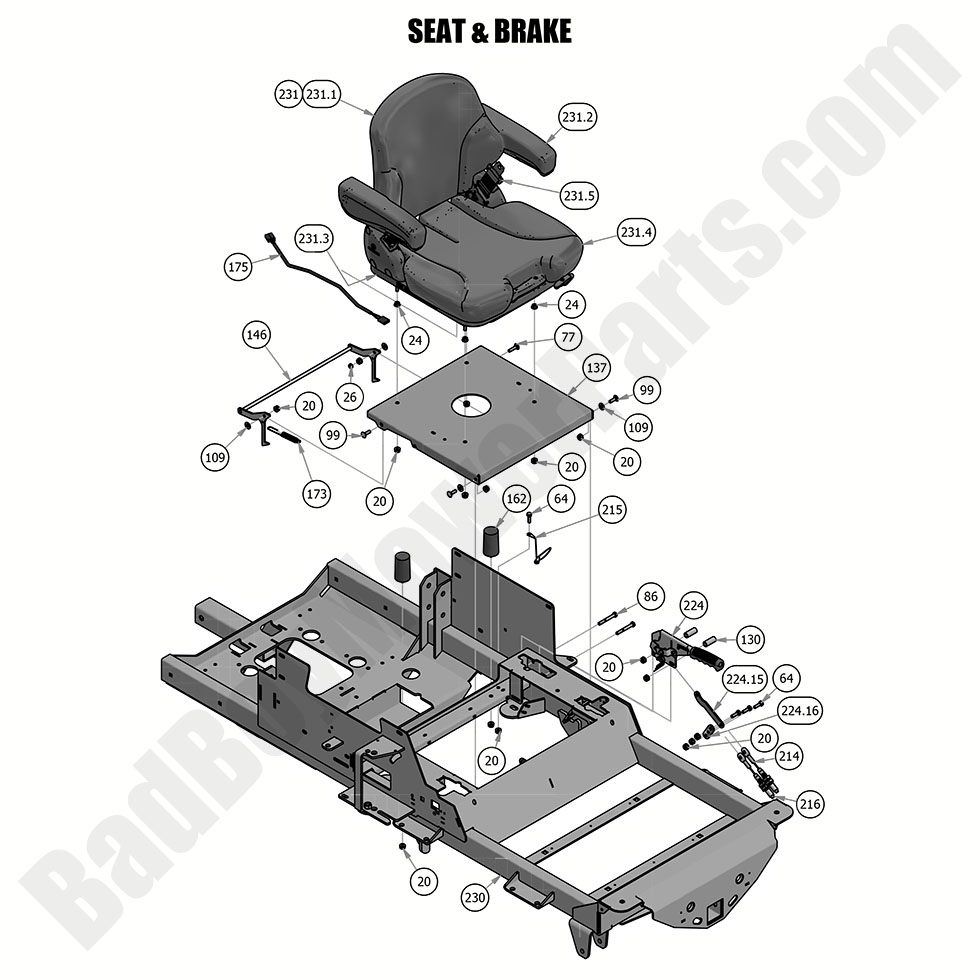

2019 Renegade - Diesel - Seat & Brake

2019 Renegade - Diesel - Seat & Brake

The 2019 Renegade - Diesel Seat & Brake system is essential for operator comfort and mower safety. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts, including replacement seats, seat brackets, brake levers, and hydraulic brake components to maintain smooth and reliable operation. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct seat and brake system components for fast installation. Proper seat and brake maintenance improves comfort, enhances stopping power, and ensures safer operation. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Renegade - Diesel Seat & Brake system is now more budget-friendly. Order today for improved comfort and dependable braking.

Bad Boy Mower Parts Lookup

2019 Renegade - Diesel - Seat & Brake
  Position Number SKU Product Title Price
1A 071-5065-07 071-5065-07 - Seat Switch fits the 071-5065-00 (See Models Used On For Details)
$42.58
20 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
24 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
26 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
64 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
77 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
86 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
99 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
109 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
130 025-0027-00 025-0027-00 - Brake Handle Spacer.625 x 1.5 2019-2022 Rebel, Renegade & Rogue
$7.25
137 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
146 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
162 032-0001-00 032-0001-00 - Rubber Bumper (Seat) 2019-2022 Rebel, Renegade & Rogue
$23.41
173 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
175 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
214 064-8054-00 064-8054-00 - Short Brake Cable-Suspension Models (See Models Used On For Details)
$51.47
215 064-8081-00 064-8081-00 - Seat Cable
$15.60
216 064-9002-00 064-9002-00 - Long Brake Cable- 2019-2025 Renegade, Rogue
$51.47
224.0 069-0001-00 069-0001-00 - Brake Handle Assembly (See Models Used On For Details)
$132.68
224.15 039-2136-00 039-2136-00 - 2019 Brake Load Balancer Tab-Upper
$21.39
224.16 039-2138-00 039-2138-00 - 2019 Brake Load Balancer Tab-Lower
$21.39
230 070-5374-19 070-5374-19 - Horizontal Diesel Renegade Frame
$1299.99
231.0 071-5065-00 071-5065-00 - 2019 - 2021 Seat with Seatbelt with ROPS (See Models Used On For Details)
$899.99
231.1 071-5065-03 071-5065-03 - Backrest Cushion fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$180.99
231.2 071-5065-06 071-5065-06 - Armrest Kit fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$139.99
231.3 071-5065-05 071-5065-05 - Seat Rail Kit fits the 071-5065-00 (See Models Used On For Details)
$85.17
231.4 071-5065-04 071-5065-04 - Seat Cushion fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$191.99
231.5 071-5065-02 071-5065-02 - Seatbelt for 2019-2021 Rebel & Renegade
$132.68
