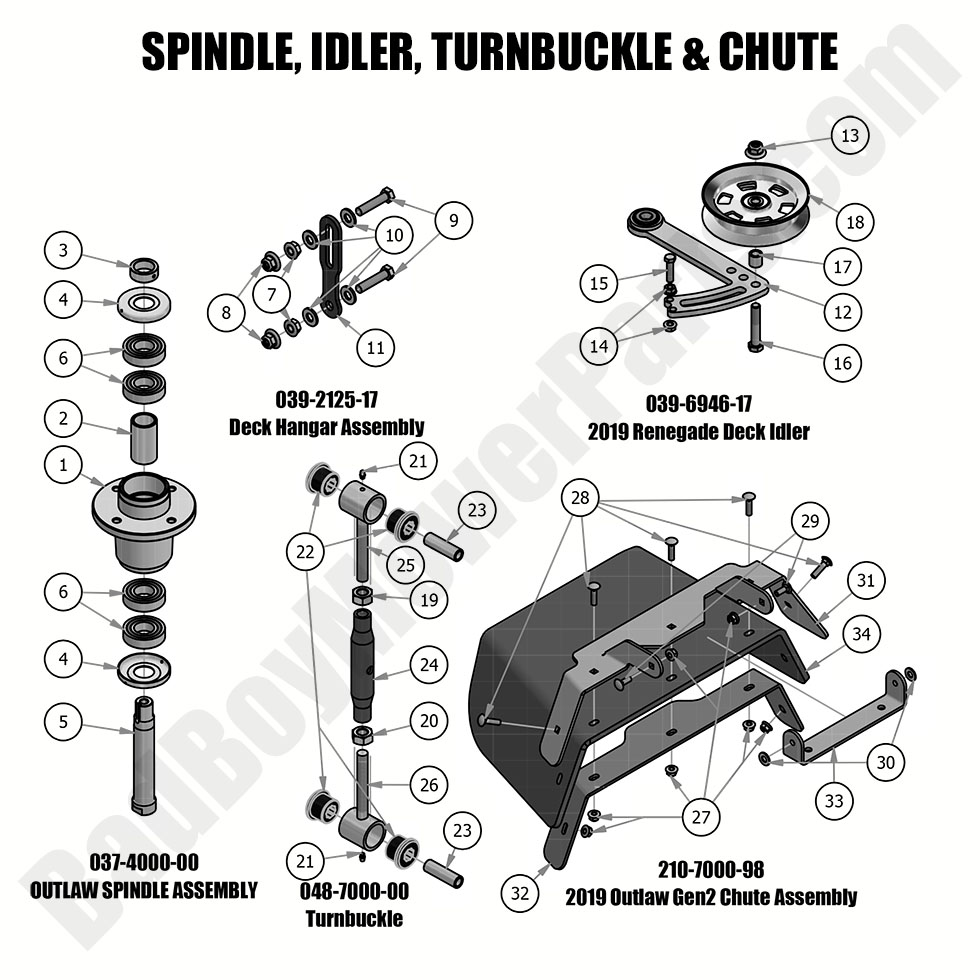

2019 Renegade - Diesel - Spindle, Idler, Turnbuckle & Chute

2019 Renegade - Diesel - Spindle, Idler, Turnbuckle & Chute

The 2019 Renegade - Diesel Spindle, Idler, Turnbuckle & Chute system plays a crucial role in smooth blade operation and efficient grass dispersal. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including durable spindles, high-tension idler pulleys, reinforced turnbuckles, and sturdy discharge chutes for optimal performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for long-lasting reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary spindle, idler, turnbuckle, and chute components for seamless installation. Regular maintenance prevents belt slippage, ensures smooth blade rotation, and enhances cutting precision. We provide Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Renegade - Diesel Spindle, Idler, Turnbuckle & Chute is now more affordable. Order today for optimal mowing performance and durability.

Bad Boy Mower Parts Lookup

2019 Renegade - Diesel - Spindle, Idler, Turnbuckle & Chute
  Position Number SKU Product Title Price
1.0 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
2 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
3 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
5 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
6 037-6029-00 037-6029-00 - Spindle Bearing (See Models Used On For Details)
$42.58
7.0 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
7 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
10 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
11 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
12.0 039-6946-17 039-6946-17 - 2019-2025 Renegade Deck Idler Assembly
$78.08
12 039-6946-00 039-6946-00 - Deck Tensioner 2019-2025 Rebel, Renegade & Rogue
$35.48
14 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
15 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
16 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
17 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
18 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
19.0 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
19 013-0007-00 013-0007-00 - 11/16-12 Hex Nut Toplink
$2.99
20 013-0008-00 013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink
$2.99
21 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
22 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
23 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
24 048-7020-00 048-7020-00 - Outlaw Toplink Body (See Models Used On For Details)
$28.32
25 048-7021-00 048-7021-00 - Outlaw Toplink RH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
26 048-7022-00 048-7022-00 - Outlaw Toplink LH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
27.0 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
27 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
28 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
29 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
30 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
31 039-4893-00 039-4893-00 - Upper Chute Bracket (See Models Used On For Details)
$46.84
32 039-4894-00 039-4894-00 - Lower Chute Bracket (See Models Used On For Details)
$43.72
33 206-6018-00 206-6018-00 - Chute Hanger 2019-2025 Rebel, Revolt, Renegade & Rogue
$9.67
34 210-6025-00 210-6025-00 - Belted Chute with Logo 2019-& Up Rebel, Revolt, Renegade & Rogue
$62.40
