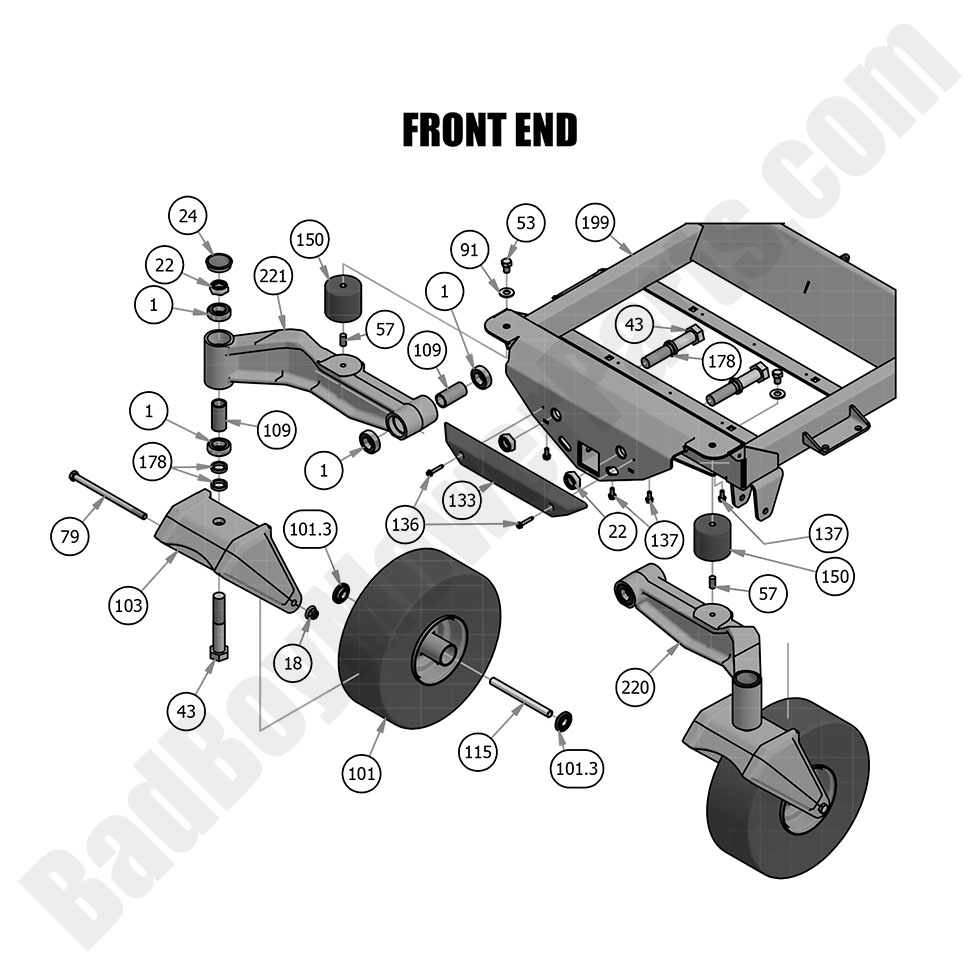

2019 Renegade - Gas - Front End

2019 Renegade - Gas - Front End

The 2019 Renegade - Gas Front End plays a crucial role in maneuverability and durability. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including front forks, caster wheels, bushings, and securing hardware to maintain smooth operation. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for longevity. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct front-end components for seamless installation. Routine maintenance enhances steering control, prevents premature wear, and ensures optimal performance. We provide Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Renegade - Gas Front End is now more affordable. Order today for superior handling and extended durability.

Bad Boy Mower Parts Lookup

2019 Renegade - Gas - Front End
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
22 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
24 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
43 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
53 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
57 018-2009-00 018-2009-00 - 1/2-13 x 1" Stud
$5.82
79 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
91 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
101.0 022-0003-00 022-0003-00 - 15x6.00-6 No-Flat Black Front Assembly
$159.99
101.3 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
103 023-0004-00 023-0004-00 - 2019-2020 Renegade & Rogue Front Fork
$169.99
109 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
115 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
133 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
136 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
137 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
150 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
178 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
199 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1461.53
220 250-0032-00 250-0032-00 - Left Front I-Beam 2019-2021 Renegade & Rogue
$248.99
221 250-0033-00 250-0033-00 - Right Front I-Beam 2019-2021 Renegade & Rogue
$320.99
