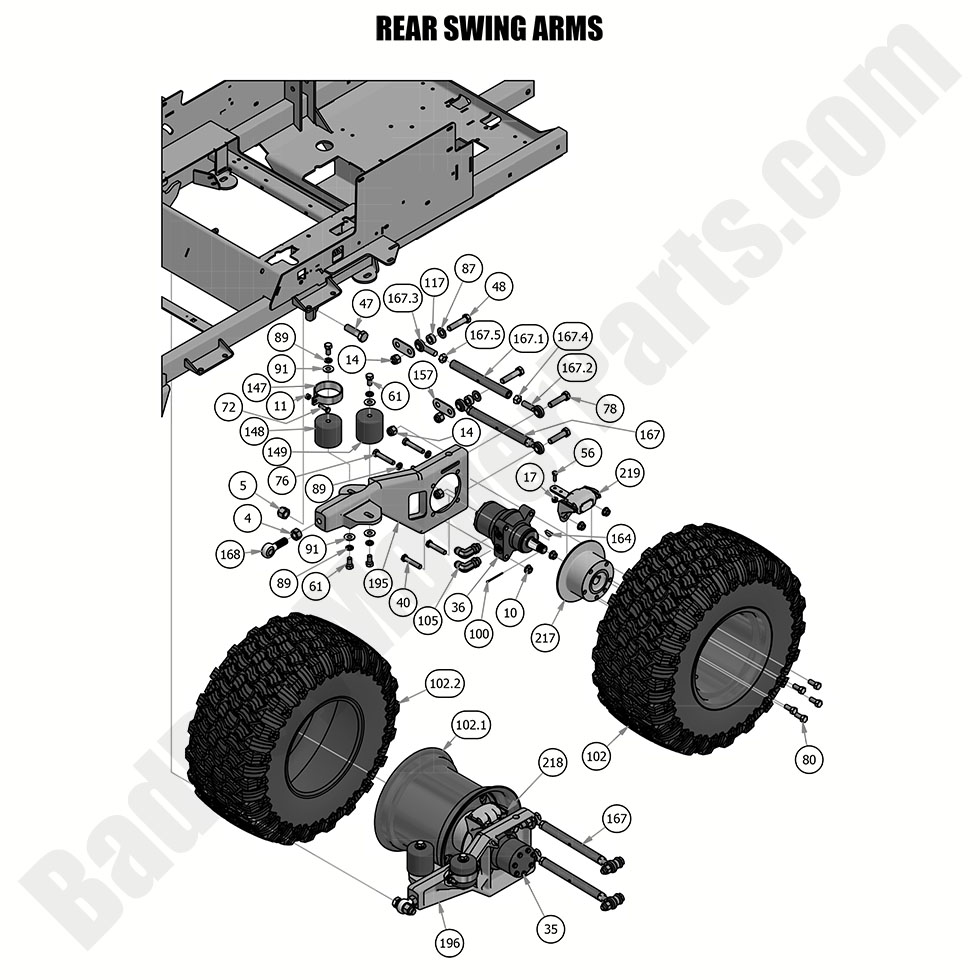

2019 Renegade - Gas - Rear Swing Arm

2019 Renegade - Gas - Rear Swing Arm

The 2019 Renegade - Gas Rear Swing Arm plays a key role in mower suspension, traction, and handling. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts, including swing arms, pivot brackets, bushings, and securing hardware to maintain superior durability. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements built for reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct rear swing arm components for easy installation. Proper maintenance enhances mower stability, reduces vibration, and prolongs the life of suspension components. We provide Bad Boy Parts Online for quick replacements and fast ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Renegade - Gas Rear Swing Arm is now more budget-friendly. Order today for smoother rides and enhanced mower durability.

Bad Boy Mower Parts Lookup

2019 Renegade - Gas - Rear Swing Arm
  Position Number SKU Product Title Price
4 013-0022-00 013-0022-00 - 3/4"-16 Fine Full Nut
$7.36
5 013-0023-00 013-0023-00 - 3/4" Course Thread Nylon Lock Nut
$7.36
10 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
11 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
35 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right (See Models Used On for Detail)
$599.99
36 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor
$599.99
40 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
47 018-0045-00 018-0045-00 - 3/4 x 2 1/2 Course Thread Bolt
$2.99
48 018-0049-00 018-0049-00 - 5/8-11 x 2 3/4 Hex Head Bolt
$4.39
56 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
61 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
72 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
76 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
78 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
80 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
87 019-0009-00 019-0009-00 - 5/8" Flat Washer SAE Spec Grade 8
$2.99
89 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
91 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
100 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
102.0 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
102.1 022-4086-00 022-4086-00 - 2019-2022 10.5" Wheel Fits 022-4090-00
$190.99
102.2 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99
105 024-2065-00 024-2065-00 - Rogue/Renegade Wheel Motor 90 Degree Fitting
$18.67
117 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
147 032-7000-00 032-7000-00 - Iso-Mount w/Band 2019 Rogue & Renegade
$78.01
148 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
149 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97
157 039-2145-00 039-2145-00 - Suspension Gusset (See Models Used On For Details)
$14.19
164 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
167.0 048-0001-98 048-0001-98 - Suspension Radius Rod Assembly - Obsolete Use Part 048-6061-00 (obsolete)
use part #048-6061-00
$58.84
167.1 048-0001-00 048-0001-00 - Suspension Link Body-RH and LH Threads 2019-& Up Renegade & Rogue
$28.32
167.2 048-6062-00 048-6062-00 - RH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
167.3 048-6063-00 048-6063-00 - LH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
167.4 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
167.5 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
168 048-7001-00 048-7001-00 - 3/4-16 RH Male Rod End for suspension mowers -CMX12
$28.39
195 070-0001-00 070-0001-00 - Left Trailing Arm 2019-2022 Renegade & Rogue
$291.91
196 070-0002-00 070-0002-00 - Right Trailing Arm 2019-2022 Renegade & Rogue
$219.99
217 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2020 Diesel/Outlaw XP, 2019-2025 Renegade/Rogue Brake Disc 8
$119.36
218 092-7001-00 092-7001-00 - 2014-2018 Left Brake Caliper Outlaw XP/Diesel, 2019-2025 Renegade/Rogue
$99.32
219 092-7000-00 092-7000-00 - 2014-2018 Right Brake Caliper Outlaw XP/Diesel, 2019-2024 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
