2019 Renegade - Gas - Seat & Brake

2019 Renegade - Gas - Seat & Brake

The 2019 Renegade - Gas Seat & Brake system ensures operator comfort and safety for efficient mowing. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including ergonomic seats, brake levers, hydraulic brake systems, and mounting brackets to ensure reliability. Our Bad Boy Lawn Mower Parts inventory provides factory-grade replacements designed for long-term use. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary seat and brake components for seamless installation. Proper seat and brake maintenance enhances comfort, improves stopping power, and ensures operator safety. We stock Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Renegade - Gas Seat & Brake system is now more affordable. Order today for a safe and comfortable mowing experience.

Bad Boy Mower Parts Lookup

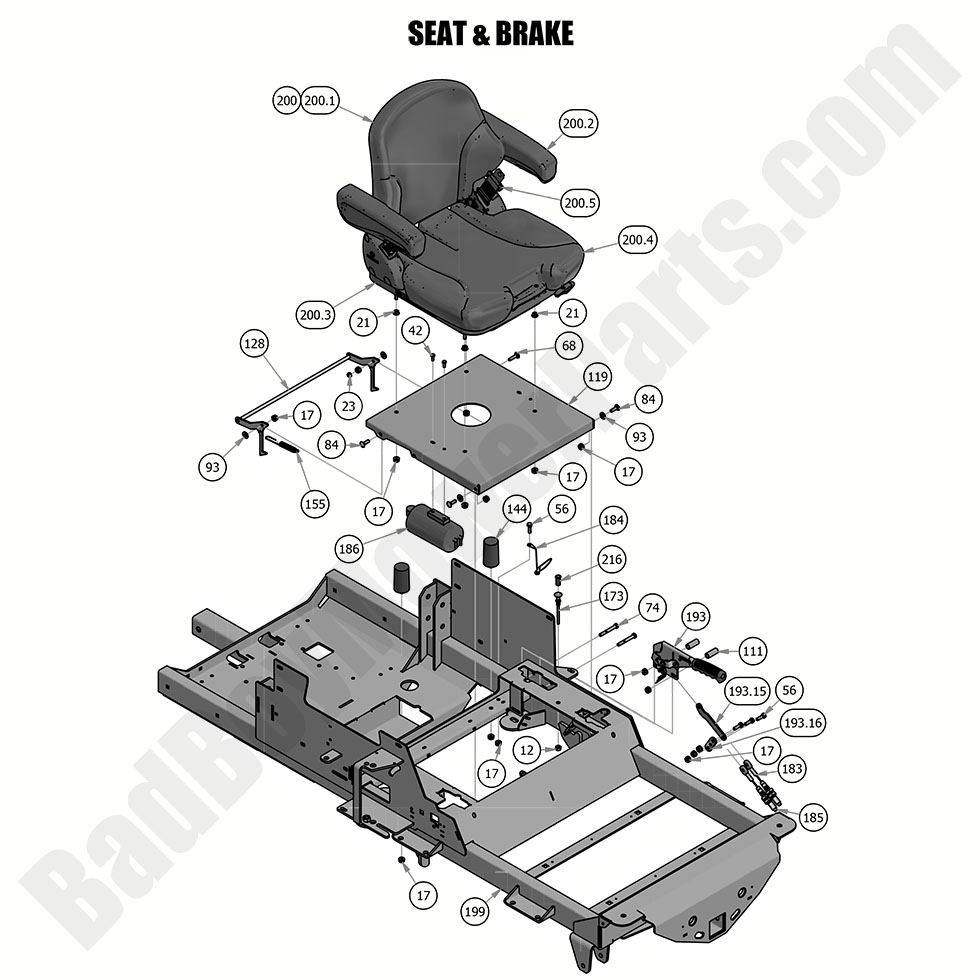

2019 Renegade - Gas - Seat & Brake
  Position Number SKU Product Title Price
1A 071-5065-07 071-5065-07 - Seat Switch fits the 071-5065-00 (See Models Used On For Details)
$42.58
12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
23 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
42 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
56 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
68 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
74 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
84 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
93 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
111 025-0027-00 025-0027-00 - Brake Handle Spacer.625 x 1.5 2019-2022 Rebel, Renegade & Rogue
$7.25
119 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
128 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
144 032-0001-00 032-0001-00 - Rubber Bumper (Seat) 2019-2022 Rebel, Renegade & Rogue
$23.41
155 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
183 064-8054-00 064-8054-00 - Short Brake Cable-Suspension Models (See Models Used On For Details)
$51.47
184 064-8081-00 064-8081-00 - Seat Cable
$15.60
185 064-9002-00 064-9002-00 - Long Brake Cable- 2019-2025 Renegade, Rogue
$51.47
186 067-0020-19 067-0020-19 - EPA Cannister Assembly Rebel/Renegade Gas/Rogue (See Models Used On For Details)
$47.62
193.0 069-0001-00 069-0001-00 - Brake Handle Assembly (See Models Used On For Details)
$132.68
193.15 039-2136-00 039-2136-00 - 2019 Brake Load Balancer Tab-Upper
$21.39
193.16 039-2138-00 039-2138-00 - 2019 Brake Load Balancer Tab-Lower
$21.39
199 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1461.53
200.0 071-5065-00 071-5065-00 - 2019 - 2021 Seat with Seatbelt with ROPS (See Models Used On For Details)
$899.99
200.1 071-5065-03 071-5065-03 - Backrest Cushion fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$180.99
200.2 071-5065-06 071-5065-06 - Armrest Kit fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$139.99
200.3 071-5065-05 071-5065-05 - Seat Rail Kit fits the 071-5065-00 (See Models Used On For Details)
$85.17
200.4 071-5065-04 071-5065-04 - Seat Cushion fits the 071-5065-00 for 2019-2021 Rebel & Renegade
$191.99
200.5 071-5065-02 071-5065-02 - Seatbelt for 2019-2021 Rebel & Renegade
$132.68
216 089-2000-00 089-2000-00 - Code Indicator Light-Yamaha
$21.39
