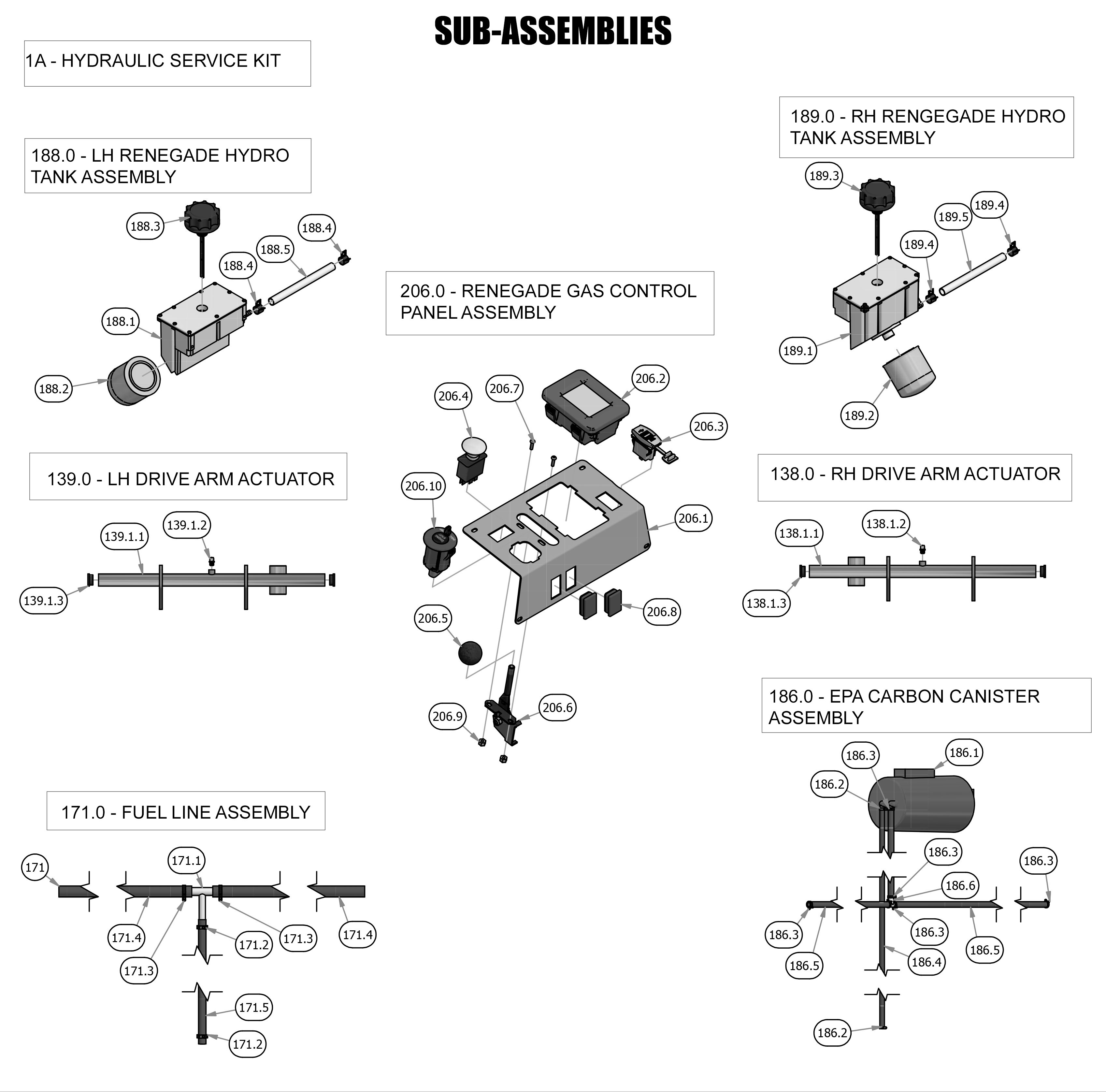

2019 Renegade - Gas - Sub-Assemblies

2019 Renegade - Gas - Sub-Assemblies

The 2019 Renegade - Gas Sub-Assemblies include critical components that ensure smooth operation and efficient mowing. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including hydraulic systems, steering mechanisms, control linkages, and fuel system components for reliable performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary sub-assembly components for fast installation. Routine maintenance improves mower functionality, prevents component wear, and extends the overall life of your equipment. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Renegade - Gas Sub-Assemblies is now more cost-effective. Order today for superior performance and long-lasting reliability.

Bad Boy Mower Parts Lookup

2019 Renegade - Gas - Sub-Assemblies
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
138.0 031-0030-00 031-0030-00 - Bad Boy Max Right Drive Arm Actuator (See Models Used On For Detail)
$46.78
138.1.2 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
138.1.3 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange)
$7.28
139.0 031-0031-00 031-0031-00 - Left Drive Arm Actuator for Rebel, Renegade & Rogue
$46.78
171.0 051-2019-22 051-2019-22 - Rebel Rogue Renegade Fuel Line for Vanguard and Yamaha Units
$44.93
171.1 073-8069-00 073-8069-00 - 5/16 x 5/16 x 1/4 Fuel Line T
$9.77
171.2 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
171.3 072-8068-00 072-8068-00 - 5/16 Fuel Line Clamp
$3.62
171.4 051-8075-26 051-8075-26 - 26" 5/16 Fuel Line No Clamps
$18.72
171.5 051-8067-22 051-8067-22 - 22" 1/4" Fuel Line No Clamp
$11.76
186.0 067-0020-19 067-0020-19 - EPA Cannister Assembly Rebel/Renegade Gas/Rogue (See Models Used On For Details)
$47.62
186.1 067-0020-00 067-0020-00 - Carbon Canister
$62.40
186.2 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
186.3 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
186.4 051-2025-66 051-2025-66 - 66" 3/16 Vinyl EPA Line
$13.26
186.5 051-8072-38 051-8072-38 - 38" 1/4 Vinyl Tubing
$28.39
186.6 073-8068-00 073-8068-00 - Fuel Line T
$9.70
188.1 067-8053-00 067-8053-00 - Hydro Tank LH (See Models Used On For Details)
$150.99
188.2 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
188.3 066-8050-00 066-8050-00 - Hydraulic Tank Cap w/Dipstick (See Models Used On For Details)
$31.22
188.4 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
188.5 051-8064-21 051-8064-21 - 21" 1/2 Braided Hose
$11.34
188 067-8053-18 067-8053-18 - LH Renegade Hydro Tank Assy
$201.96
189.0 067-8054-18 067-8054-18 - RH Renegade Hydro Tank Assy
$201.96
189.1 067-8054-00 067-8054-00 - Hydro Tank RH 2019-2022 Renegade & Rogue
$149.99
206.0 079-3482-19 079-3482-19 - Renegade Control Panel ASSY
$309.99
206.1 079-3482-00 079-3482-00 - Digital Control Panel
$55.37
206.2 086-0013-00 086-0013-00 - 2019-2022 Display
$239.99
206.3 077-2076-00 077-2076-00 - USB Port
$46.84
206.4 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
206.5 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
206.6 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
206.7 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
206.8 018-1040-00 018-1040-00 - Light Plug
$2.99
206.9 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
206.10 077-0004-00 077-0004-00 - Push to Start Switch w/fob (See Models Used On For Details)
$62.40
