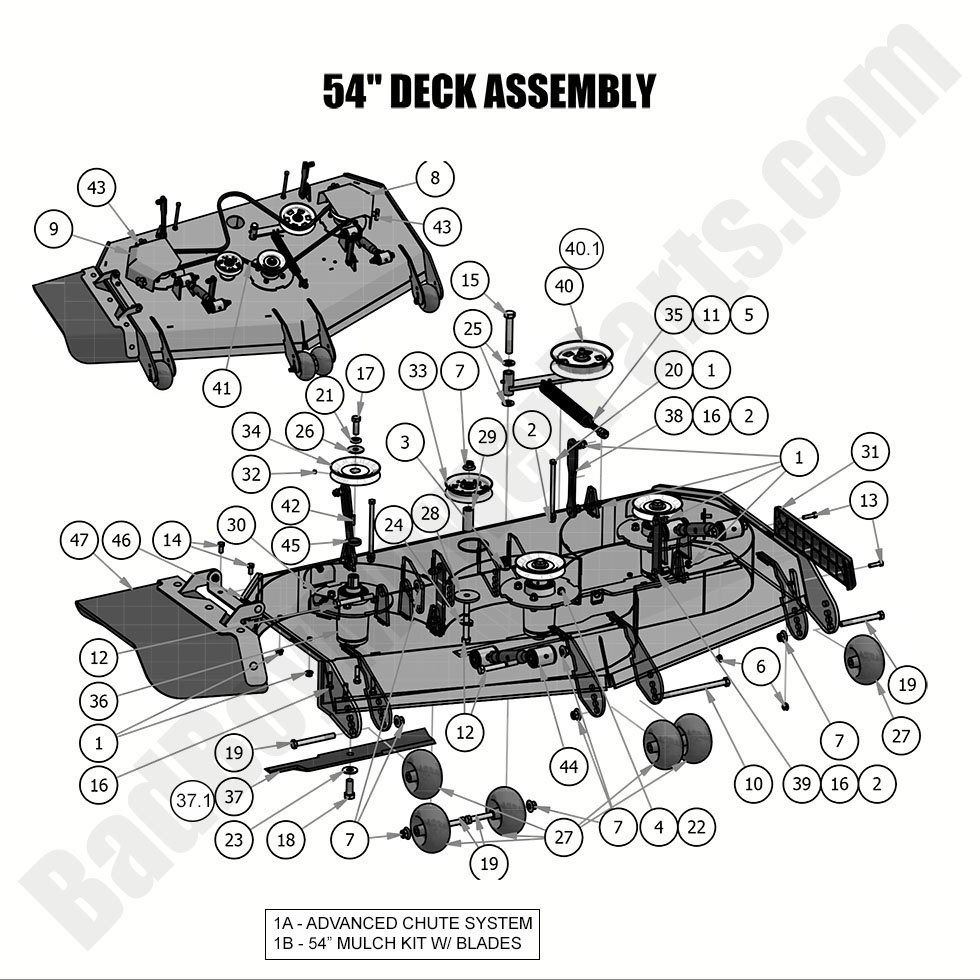

2019 Revolt - 54" Deck Assembly

2019 Revolt - 54" Deck Assembly

The 2019 Revolt 54" Deck Assembly provides a wider cutting path for increased efficiency and performance. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts, including reinforced spindles, high-performance cutting blades, deck belts, and idler pulleys for long-lasting use. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements built for durability and precision cutting. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary deck components for seamless installation. Routine maintenance prevents belt slippage, ensures even cutting, and extends the life of deck components. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Revolt 54" Deck Assembly is now more budget-friendly. Order today for professional-grade mowing efficiency and superior durability.

Bad Boy Mower Parts Lookup

2019 Revolt - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6048-00 088-6048-00 - Advanced Chute System for Revolt 48", 54", and 61" Decks
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
4 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4811-00 014-4811-00 - Trim Side Pulley Cover (See Models Used On For Details)
$16.04
9 014-4812-00 014-4812-00 - 54" Discharge Side Pulley Cover (See Models Used On For Detail)
$26.74
10 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
11 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
19 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
20 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
23 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
24 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
25 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
26 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
27 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
28 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
29 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
30 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
31 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
32 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
33 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
34 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
35 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
36 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
37.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
37 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
38 039-2128-00 039-2128-00 - Stand On Deck Hanger Rear (See Models Used On For Details)
$14.19
39 039-2129-00 039-2129-00 - Stand On Deck Hanger Front (See Models Used On For Detail)
$16.04
40.1 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
40 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
41 041-0120-00 041-0120-00 - Deck Belt (See Models Used On For More Details - Not for 54" MZ)
$88.80
42 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
43 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
44 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
45 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
46 060-1154-19 060-1154-19 - 2019-2022 Revolt 54" Sloped Deck Welded Assembly
$1299.99
47 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
