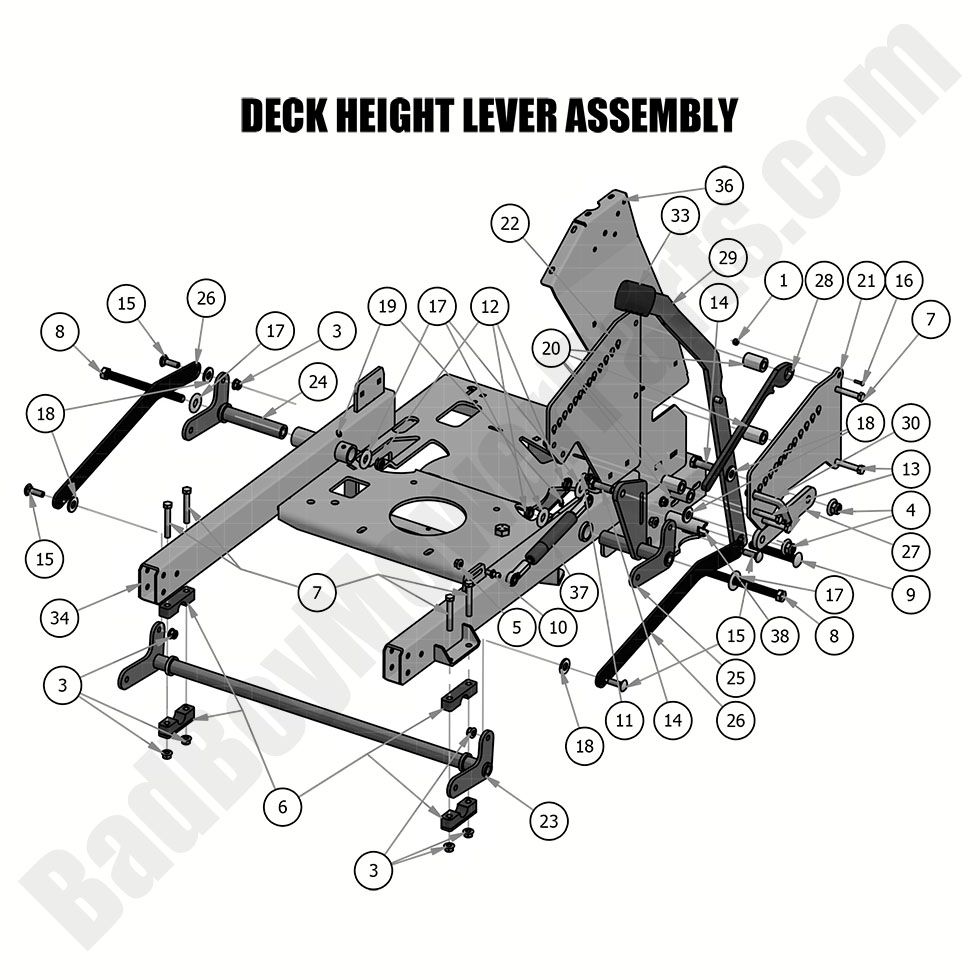

2019 Revolt - Deck Height Lever Assembly

2019 Revolt - Deck Height Lever Assembly

The 2019 Revolt Deck Height Lever Assembly ensures precise cutting height adjustments for optimal mowing results. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including height adjustment levers, control rods, mounting brackets, and securing hardware to maintain efficiency. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct height lever components for fast installation. Proper maintenance of deck height controls improves cutting precision, enhances efficiency, and prolongs mower lifespan. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Revolt Deck Height Lever Assembly is now more affordable. Order today for smoother adjustments and improved cutting control.

Bad Boy Mower Parts Lookup

2019 Revolt - Deck Height Lever Assembly
  Position Number SKU Product Title Price
1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
7 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
8 018-0038-00 018-0038-00 - 1/2-13 x 7" Carriage Bolt
$2.99
9 018-0060-00 018-0060-00 - -13 x 4 carriage bolt No Longer Available
Obsolete.
10 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
11 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
12 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
13 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
14 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
15 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
16 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
17 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
18 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
19 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
20 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
21 026-0082-00 026-0082-00 - Outer Adjustment Plate
$32.09
23 028-0028-00 028-0028-00 - Front Actuator Bar Weldment 2019-2022 Revolt
$35.30
24 028-0029-00 028-0029-00 - Rear Actuator Bar 2019-2022 Revolt
$102.16
26 028-0033-00 028-0033-00 - Actuator Linkage 2019-2022 Revolt
$10.21
27 028-5001-00 028-5001-00 - Lever Secondary Linkage-Black
$12.83
28 031-0093-00 031-0093-00 - 2019-2022 Stand On Deck Lever Lock
$24.12
29 031-7146-00 031-7146-00 - Deck Lift Lever Welded Assembly 2019-2022 Revolt
$99.32
30 040-4001-00 040-4001-00 - Pin and Lanyard 1/2 x 2 (See Models Used On For Details)
$14.19
33 069-4012-00 069-4012-00 - Revolt Lift Grip (See Models Used On For Details)
$14.19
34 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
36 079-4111-00 079-4111-00 - LH Podium Panel 2019-2022 Revolt
$37.44
37 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
