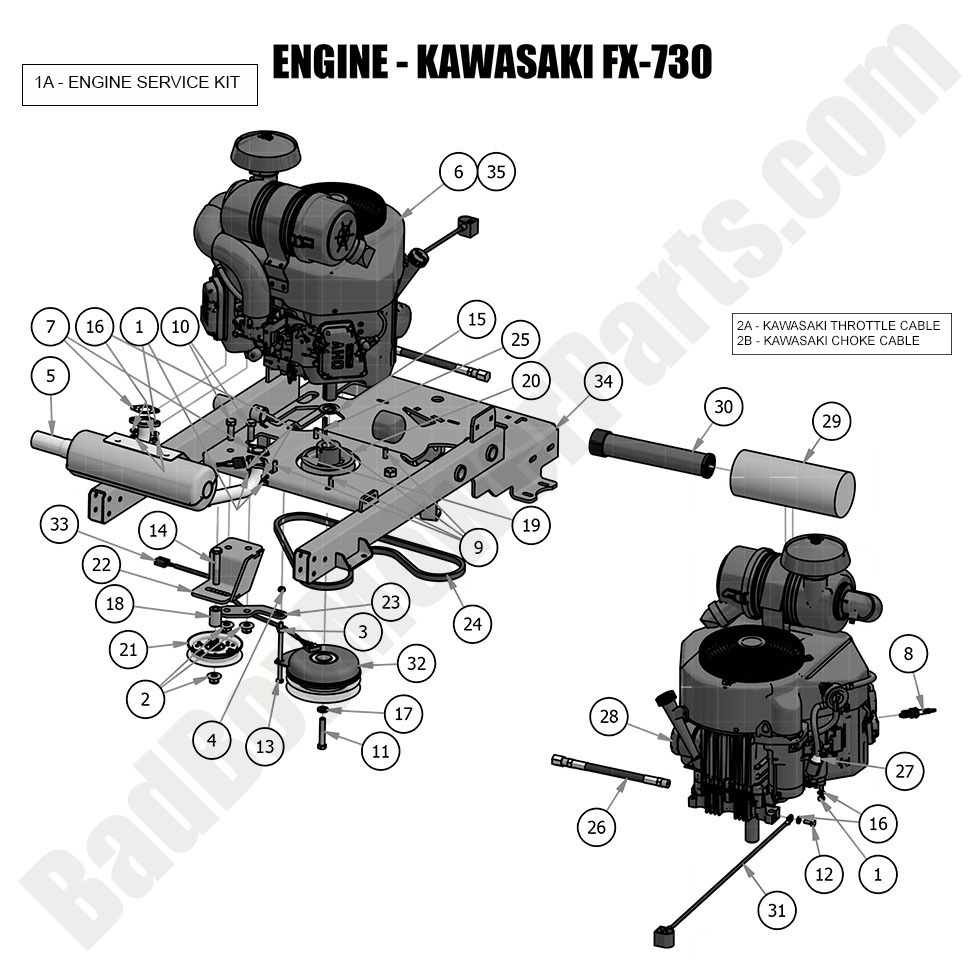

2019 Revolt - Engine - Kawasaki FX730V

2019 Revolt - Engine - Kawasaki FX730V

The 2019 Revolt Engine - Kawasaki FX730V delivers powerful performance and requires regular maintenance to ensure peak efficiency. At BadBoyMowerParts.com, we supply top-quality Bad Boy Mower Parts, including air filters, fuel injectors, cooling fans, and oil filters to keep your engine running at its best. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for long-term use. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct Kawasaki FX730V engine components for seamless installation. Routine maintenance enhances fuel efficiency, prevents overheating, and extends the life of your mower. We offer Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Revolt Engine - Kawasaki FX730V is now more cost-effective. Order today for a powerful and reliable engine performance.

Bad Boy Mower Parts Lookup

2019 Revolt - Engine - Kawasaki FX730V
  Position Number SKU Product Title Price
1A 063-2000-14 063-2000-14 - Kawasaki FX691V & FX730V Engine Service Kit
$127.15
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
4 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
5 015-0692-00 015-0692-00 - Exhaust-Stand On-FX691V Kawasaki
$145.95
6 015-0730-00 015-0730-00 - FX730 Kawasaki Engine
$2599.00
7 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
8 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
9 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
10 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
11 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
12 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
13 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
14 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
15 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
16 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
17 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
18 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
19 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
20 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
21 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
22 039-0089-00 039-0089-00 - Idler Pulley Bracket Weldment 2019-2022 Revolt
$28.39
23 039-0119-00 039-0119-00 - Clutch Stop Bracket 2019-2022 Revolt
$10.21
24 041-8052-00 041-8052-00 - 2019-2025 Revolt Drive Belt, 48", 54", 61" Decks Only
$80.24
25 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
26 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
27 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
28 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
29 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
30 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
31 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
32 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
33 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
34 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
35 086-9002-19 086-9002-19 - Wiring Harness Adaptor-All Kawasaki FX (See Models Used On For Details)
$20.29
