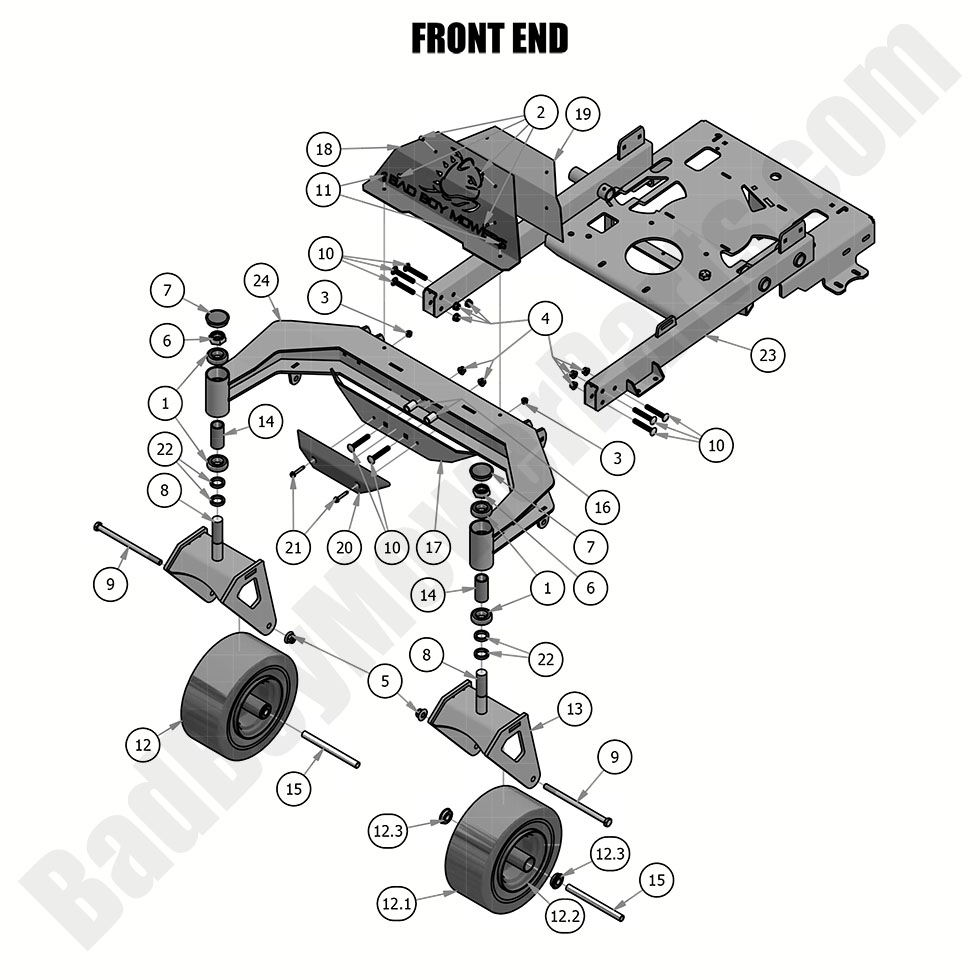

2019 Revolt - Front End

2019 Revolt - Front End

The 2019 Revolt Front End is essential for steering precision, maneuverability, and mower stability. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including front forks, caster wheels, bushings, and securing hardware to ensure smooth operation. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for long-term durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct front-end components for fast installation. Routine maintenance enhances control, reduces vibrations, and extends the life of your mower’s front suspension. We provide Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Revolt Front End is now more affordable. Order today for smoother steering and superior mower stability.

Bad Boy Mower Parts Lookup

2019 Revolt - Front End
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
3 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
7 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
8 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
9 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
10 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
11 018-0058-00 018-0058-00 - 1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head No Longer Available
Obsolete.
12.0 022-2017-00 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly
$94.15
12.1 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
12.2 022-7007-00 022-7007-00 - 6 x 4.5 Black Wheel Small Bore (See Models Used On For Details)
$56.81
12.3 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
13 023-1010-00 023-1010-00 - Front Fork 2019-2022 Revolt, 2021-2022 Maverick
$145.95
14 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
15 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
16 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
17 026-0049-00 026-0049-00 - 2019-2022 Revolt Front Bumper Plate
$26.74
18 026-0084-00 026-0084-00 - Exhaust Shield Plate 2019-2022 Revolt
$13.90
19 026-0085-00 026-0085-00 - Exhaust Backer Plate
$16.04
20 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
21 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
22 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
23 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
24 070-9048-19 070-9048-19 - 48" Stand On Front End 2019-2022 Welded Assembly
$129.99
