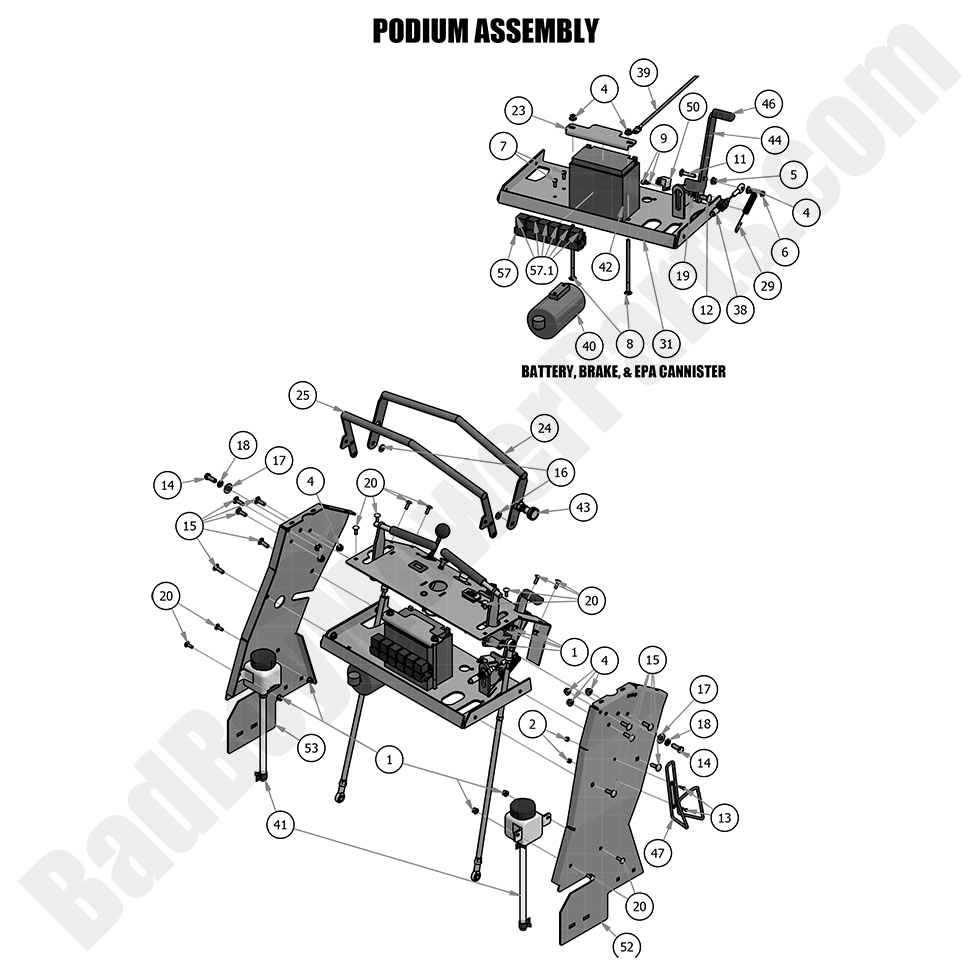

2019 Revolt - Podium Assembly

2019 Revolt - Podium Assembly

The 2019 Revolt Podium Assembly houses critical mower controls, ensuring ease of use and precise operation. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts, including control panels, switches, wiring harnesses, and mounting brackets to keep your mower operating smoothly. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements built for durability and seamless integration. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct podium assembly components for easy installation. Regular maintenance enhances operational efficiency, prevents wiring malfunctions, and ensures long-lasting performance. We stock Bad Boy Parts Online for fast replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Revolt Podium Assembly is now more budget-friendly. Order today for superior control and long-lasting reliability.

Bad Boy Mower Parts Lookup

2019 Revolt - Podium Assembly
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
7 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
8 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
9 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
11 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
12 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
13 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
14 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
15 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
16 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
17 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
18 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
19 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
20 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
23 026-0098-00 026-0098-00 - Battery Hold Down Plate
$17.02
24 031-0026-00 031-0026-00 - Front Control Arm Stop 2019-2022 Revolt
$61.09
25 031-0027-00 031-0027-00 - Rear Control Arm Stop 2019-2022 Revolt
$46.00
29 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
31 039-0087-00 039-0087-00 - Console Bracket Weldment 2019-2022 Revolt
$21.39
38 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
39 064-8060-00 064-8060-00 - 36" Red Battery Cable (See Models Used On For Details)
$20.93
40 067-0020-18 067-0020-18 - Revolt EPA Canister- Assy
$85.59
41 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
43 069-0002-00 069-0002-00 - Retractable Spring Plunger Black Steel 5/8-11
$84.52
44 069-2013-00 069-2013-00 - 2019 Revolt Brake Handle
$109.99
46 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
47 071-6005-00 071-6005-00 - Revolt Cup Holder (See Models Used On For Details)
$22.71
50 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
52 079-4106-00 079-4106-00 - RH Podium Panel 2019-2022 Revolt
$37.44
53 079-4111-00 079-4111-00 - LH Podium Panel 2019-2022 Revolt
$37.44
57.0 086-0091-00 086-0091-00 - 2019 - 2025 Revolt Wiring Harness
$363.44
57.1 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
