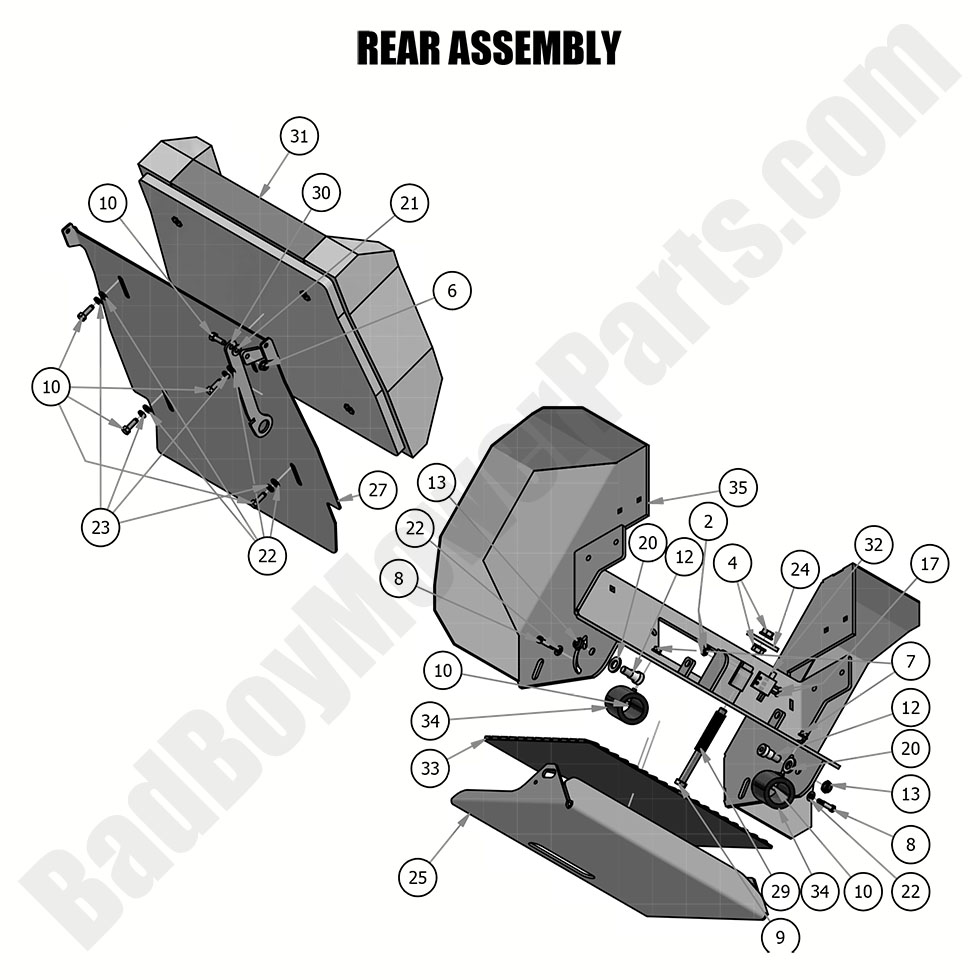

2019 Revolt - Rear Assembly

2019 Revolt - Rear Assembly

The 2019 Revolt Rear Assembly plays a crucial role in the mower’s overall structure and stability. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts, including rear frames, mounting brackets, hydraulic system components, and wheel assemblies for reliable operation. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for long-lasting performance. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary rear assembly components for seamless installation. Proper maintenance ensures optimal balance, improves durability, and extends mower lifespan. We provide Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Revolt Rear Assembly is now more budget-friendly. Order today for enhanced mower stability and long-term durability.

Bad Boy Mower Parts Lookup

2019 Revolt - Rear Assembly
  Position Number SKU Product Title Price
2 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
4 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
8 018-0059-00 018-0059-00 - Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"
$4.39
9 018-0062-00 018-0062-00 - 1/2-13 X 6 Hex Head Bolt Gr5
$3.29
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
13 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
17 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
20 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
21 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
22 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
23 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
24 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
25 026-0062-00 026-0062-00 - Revolt Platform Plate for 48"-61" Models
$67.99
27 026-0096-00 026-0096-00 - Pad Plate for 2019-2022 Revolt (For 48"-61" Models Only)
$99.32
29 034-1001-00 034-1001-00 - 3-1/8" x 0.75 OD x 0.568 ID Compression Spring
$12.83
30 039-0082-00 039-0082-00 - Operator Pad Kickstand 2019-2022 Stand On
$28.39
31 071-6004-00 071-6004-00 - Revolt Platform Pad, 48"-61" Models Only (See Models Used On For Details)
$189.99
32 077-0002-00 077-0002-00 - Safety Switch (See Models Used On For Detail)
$23.41
33 081-3001-00 081-3001-00 - 2019 Revolt Mat
$56.81
34 087-0003-00 087-0003-00 - 2019-2022 Revolt Platform Dampener
$85.17
35 201-1120-19 201-1120-19 - 2019-2022 Stand On Platform Support Welded Assembly (For 48" and 54" Models Only)
$584.99
