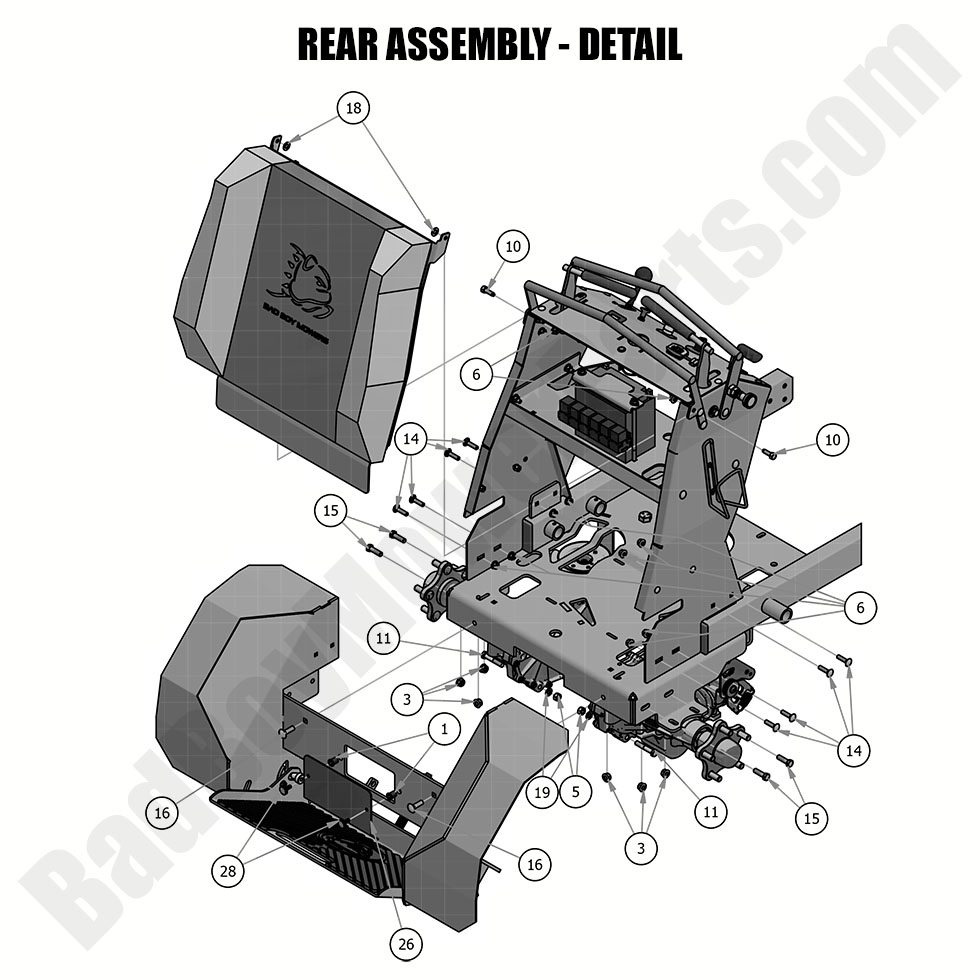

2019 Revolt - Rear Assembly Detail

2019 Revolt - Rear Assembly Detail

The 2019 Revolt Rear Assembly Detail covers the smaller but essential components within the rear frame of the mower. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including mounting bolts, bushings, rear axle brackets, and hydraulic fittings to maintain precision performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements built for durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct rear assembly detail components for seamless installation. Regular maintenance enhances mower handling, prevents premature wear, and ensures smooth operation. We stock Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Revolt Rear Assembly Detail is now more affordable. Order today for enhanced structural integrity and long-term reliability.

Bad Boy Mower Parts Lookup

2019 Revolt - Rear Assembly Detail
  Position Number SKU Product Title Price
1 013-0057-00 013-0057-00 - Wellnut 1/4-20 x 5/8
$4.39
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
14 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
15 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
16 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
18 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
19 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
26 026-0063-00 026-0063-00 - 2019-2022 Revolt Access Panel Plate
$35.48
28 030-0015-00 030-0015-00 - 1/4-20 x 3/4 Knurled Thumb Screw
$16.04
