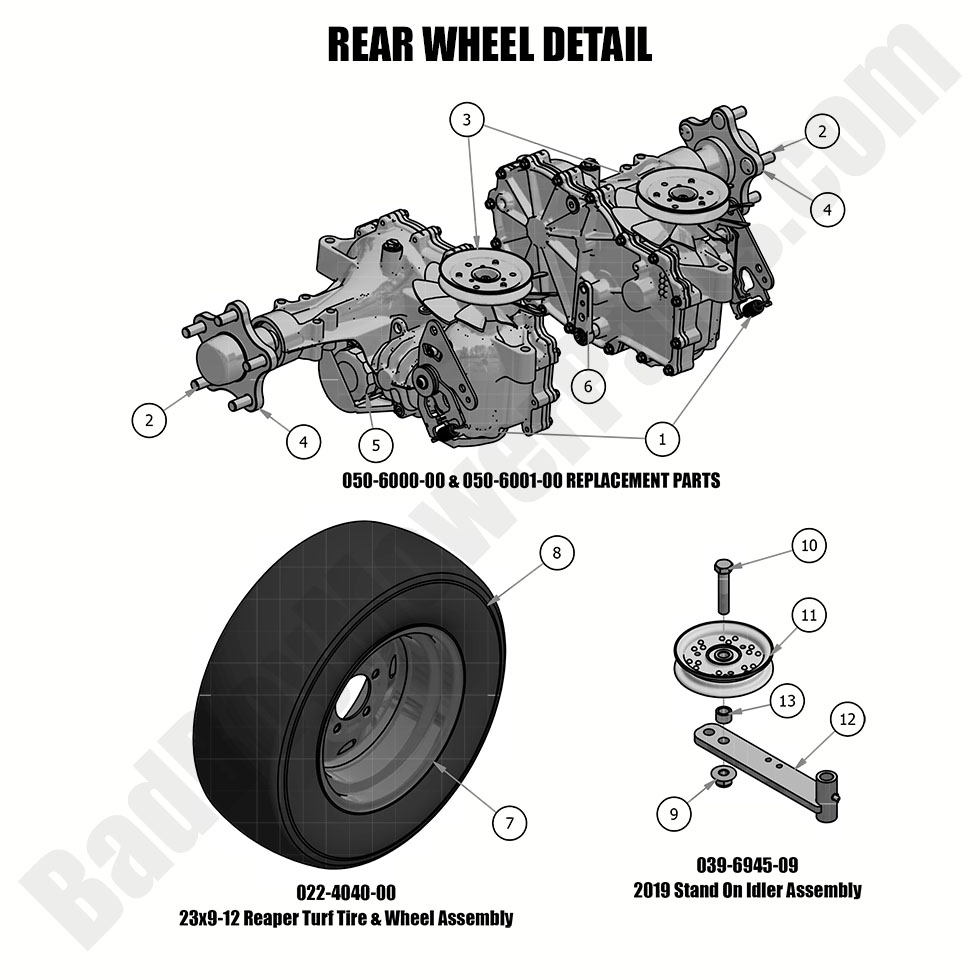

2019 Revolt - Rear Wheel Detail

2019 Revolt - Rear Wheel Detail

The 2019 Revolt Rear Wheel Detail system provides stability, traction, and smooth maneuverability across different terrains. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including rear wheels, wheel bearings, axles, and securing hardware to maintain peak performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for long-lasting reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct rear wheel components for easy installation. Routine maintenance enhances traction, prevents wear, and improves mower stability. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Revolt Rear Wheel Detail is now more cost-effective. Order today for a smoother ride and enhanced mowing control.

Bad Boy Mower Parts Lookup

2019 Revolt - Rear Wheel Detail
  Position Number SKU Product Title Price
1.0 050-6000-00 050-6000-00 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-02
$819.99
1.1 050-6001-00 050-6001-00 - ZT3400 Transaxle - Right (obsolete)
use part #050-6001-02
$819.99
1 034-1050-00 034-1050-00 - Transaxle Spring for Stand On (See Models Used On For Details)
$7.28
2 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
3 050-2072-00 050-2072-00 - Fan/Pulley Kit
$63.96
4 050-2077-00 050-2077-00 - 5 Bolt Hub Kit (See Models Used On For Details)
$102.71
5 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
6 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
7.0 022-4040-00 022-4040-00 - 23x9-12 Reaper Turf (See Models Used On for Details)
$329.99
7 022-3011-00 022-3011-00 - 12x7" Black Wheel-48" EZT Only
$109.99
8 022-4035-00 022-4035-00 - 23x9 - 12 Reaper Turf Tire Only
$201.99
9.0 039-6945-09 039-6945-09 - Pump Idler Assembly
$58.84
9 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
10 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
11 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
12 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
13 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
