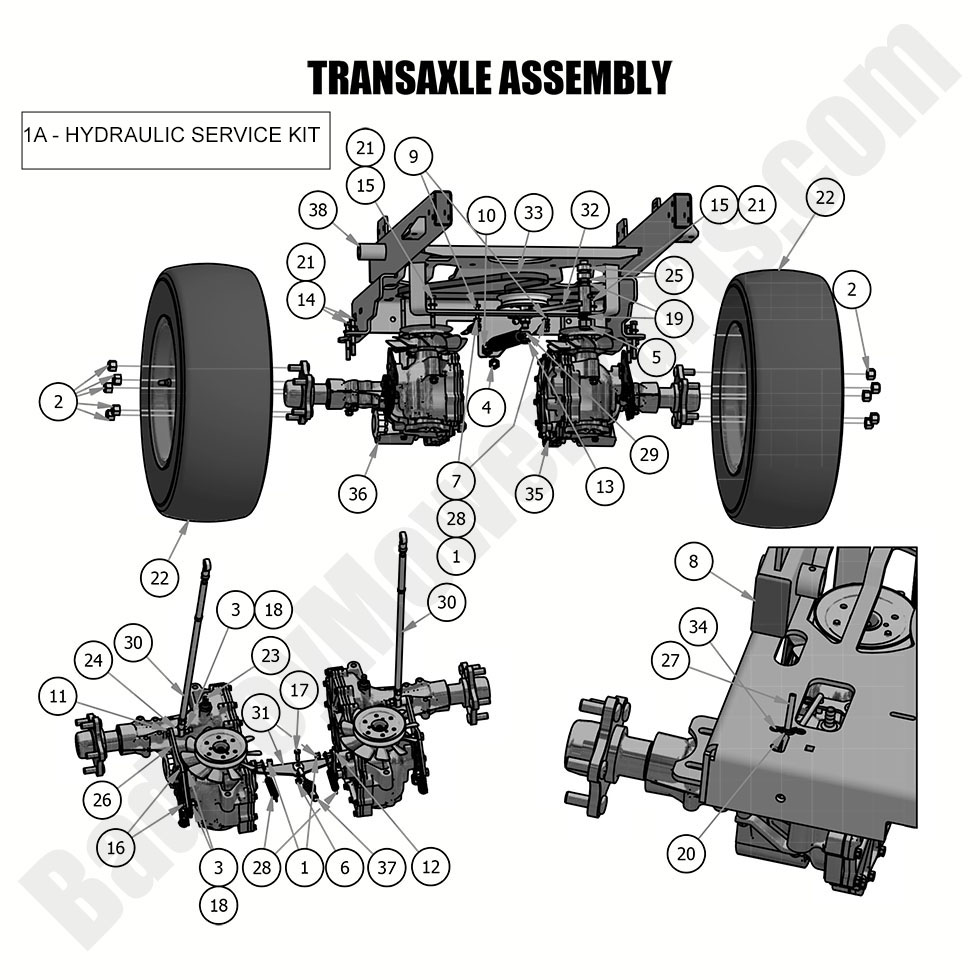

2019 Revolt - Transaxle Assembly

2019 Revolt - Transaxle Assembly

The 2019 Revolt Transaxle Assembly is responsible for delivering power to the wheels for smooth operation and superior traction. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including transaxles, hydraulic pumps, drive belts, and mounting brackets for durability and efficiency. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements built for long-term reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct transaxle components for easy installation. Regular transaxle maintenance improves maneuverability, enhances speed control, and extends the lifespan of your mower. We offer Bad Boy Parts Online for fast replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Revolt Transaxle Assembly is now more affordable. Order today for smooth and efficient mower operation.

Bad Boy Mower Parts Lookup

2019 Revolt - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
6 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
7 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
8 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
9 018-0011-00 018-0011-00 - 1/4-20 x 2 Hex Bolt
$2.99
10 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
11 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
12 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
13 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
14 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
15 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
16 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
17 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
18 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
19 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
20 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
21 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
22 022-4040-00 022-4040-00 - 23x9-12 Reaper Turf (See Models Used On for Details)
$329.99
23 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
24 025-2004-00 025-2004-00 - ACS Spacer 3/4x3/8x1/2
$15.60
25 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
27 028-0071-00 028-0071-00 - Neutral Release Rod 2019-2024 Revolt
$29.95
28 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
29 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
30 035-0006-19 035-0006-19 - Push-Rod Assembly
$46.84
31 039-0212-00 039-0212-00 - Brake Bracket (See Models Used On For Details)
$25.54
32 039-6945-09 039-6945-09 - Pump Idler Assembly
$58.84
33 041-8052-00 041-8052-00 - 2019-2025 Revolt Drive Belt, 48", 54", 61" Decks Only
$80.24
34 044-2004-00 044-2004-00 - Bow Pin
$2.99
35 050-6000-00 050-6000-00 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-02
$819.99
36 050-6001-00 050-6001-00 - ZT3400 Transaxle - Right (obsolete)
use part #050-6001-02
$819.99
37 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
38 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
