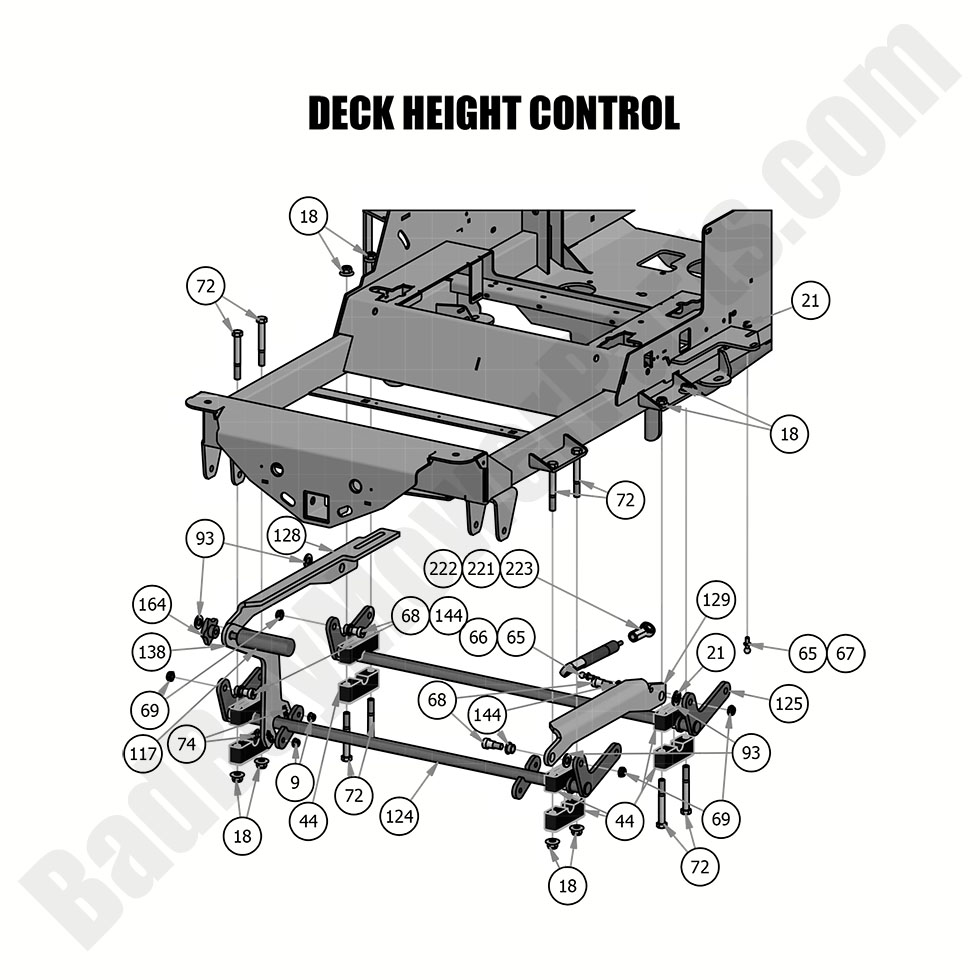

2019 Rogue - Deck Height Control

2019 Rogue - Deck Height Control

The 2019 Rogue Deck Height Control ensures precise cutting adjustments for an even mow. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including height control levers, adjustment rods, mounting brackets, and securing hardware for reliable functionality. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for long-term use. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct deck height control components for seamless installation. Routine maintenance improves cutting consistency, enhances mower efficiency, and prevents deck misalignment. We stock Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rogue Deck Height Control is now more budget-friendly. Order today for improved cutting control and long-lasting durability.

Bad Boy Mower Parts Lookup

2019 Rogue - Deck Height Control
  Position Number SKU Product Title Price
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
44 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
65 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
66 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
67 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
68 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
69 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
72 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
74 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
93 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
117 026-0026-00 026-0026-00 - Knurled Foot Pedal
$39.03
124 028-0026-00 028-0026-00 - Front Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$119.41
125 028-0027-00 028-0027-00 - Rear Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$82.38
128 028-6075-00 028-6075-00 - Actuator Linkage-Right 2019-2021 Rebel, Renegade & Rogue
$53.49
129 028-6076-00 028-6076-00 - Actuator Linkage-Left 2019-2021 Rebel, Renegade & Rogue
$12.94
138 031-0120-00 031-0120-00 -2019-2021 Rebel/Rogue/Renegade Foot Lift Upright Lever (obsolete)
use part #031-0003-00
$17.11
144 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
164 045-6044-00 045-6044-00 - Foot Pedal Knob 1/2-13
$12.48
221 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
222 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
223 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40
