2019 Rogue - Engine - Yamaha EFI

2019 Rogue - Engine - Yamaha EFI

The 2019 Rogue Engine - Yamaha EFI is designed for superior fuel efficiency, power, and smooth operation. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including Yamaha EFI components such as fuel injectors, cooling fans, ignition systems, and oil filters to ensure optimal performance. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements for long-lasting durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct Yamaha EFI engine components for easy installation. Proper maintenance improves engine response, enhances fuel efficiency, and extends lifespan. We stock Bad Boy Parts Online for fast replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rogue Engine - Yamaha EFI is now more affordable. Order today for reliable and efficient mowing performance.

Bad Boy Mower Parts Lookup

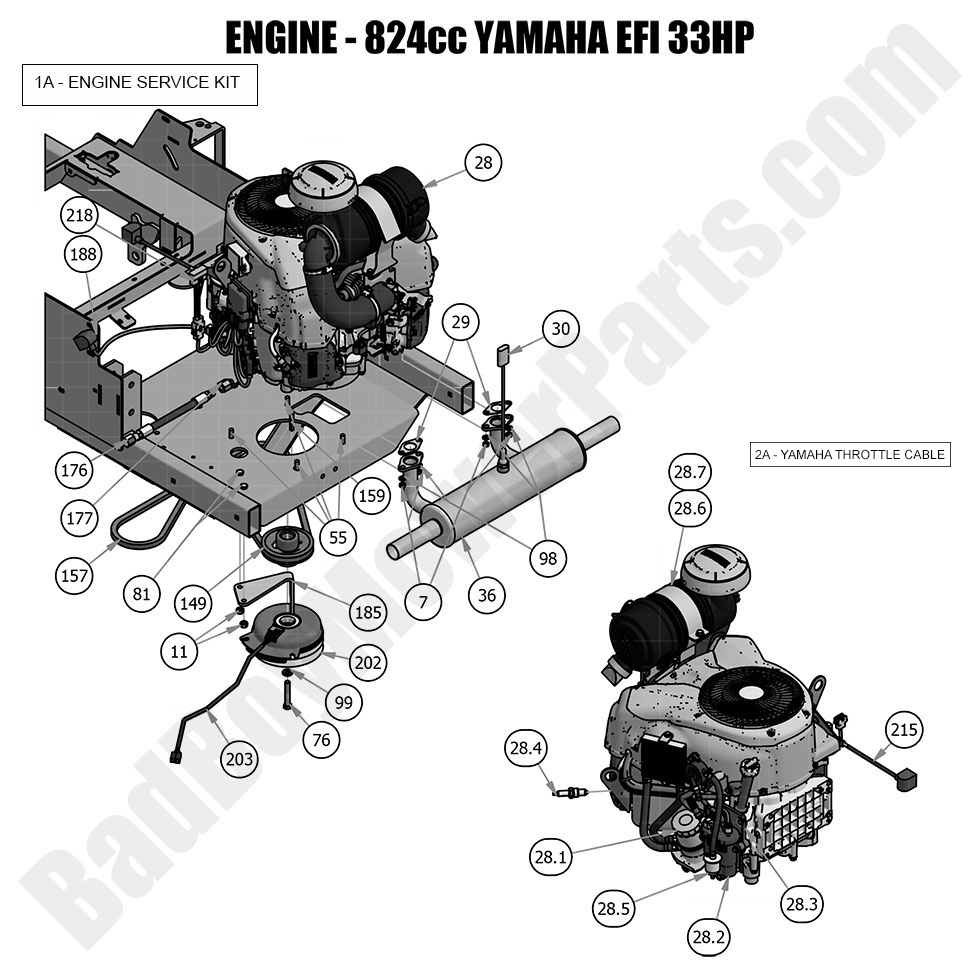

2019 Rogue - Engine - Yamaha EFI
  Position Number SKU Product Title Price
1A 063-2000-11 063-2000-11 - Yamaha 824cc Engine Service Kit
$134.86
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
7 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
11 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
28.0 015-0053-00 015-0053-00 - Yamaha Engine-33hp (See Models Used On For Details)
$2999.00
28.1 015-0053-02 015-0053-02 - 2017-2022 Yamaha Oil Filter
$34.23
28.2 015-0053-03 015-0053-03 - 2017-2022 Yamaha High Pressure Fuel Pump
$569.99
28.3 015-0053-04 015-0053-04 - Yamaha Fuel Pump Bracket
$53.49
28.4 015-0053-06 015-0053-06 - 2017-2022 Yamaha Spark Plug
$10.99
28.5 015-0053-21 015-0053-21 - Fuel Filter for Yamaha MX825VJ7X6
$10.99
28.6 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
28.7 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
29 015-0053-01 015-0053-01 - 2017-2022 Yamaha Exhaust Gasket
$8.01
30 015-0053-05 015-0053-05 - Yamaha O2 Sensor
$256.99
36 015-1015-00 015-1015-00 - 2019 - 2022 Rebel/Rogue Yamaha 824 EFI/Carb Muffler Catalytic Combustion # 582984-MUF17
$108.90
55 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
76 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
81 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
98 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
99 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
149 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
157 041-8051-00 041-8051-00 - Rogue Pump Belt 68"
$80.24
159 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
176 051-5403-00 051-5403-00 - Yamaha Oil Drain
$35.84
177 051-5406-00 051-5406-00 - Yamaha EFI Oil Drain Adaptor 2019-2021 Rogue
$21.28
185 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
188 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
202 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
203 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
215 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
218 086-9006-19 086-9006-19 - 2019-2021 Wiring Harness Adaptor-Yamaha & Kohler EFI
$42.58
