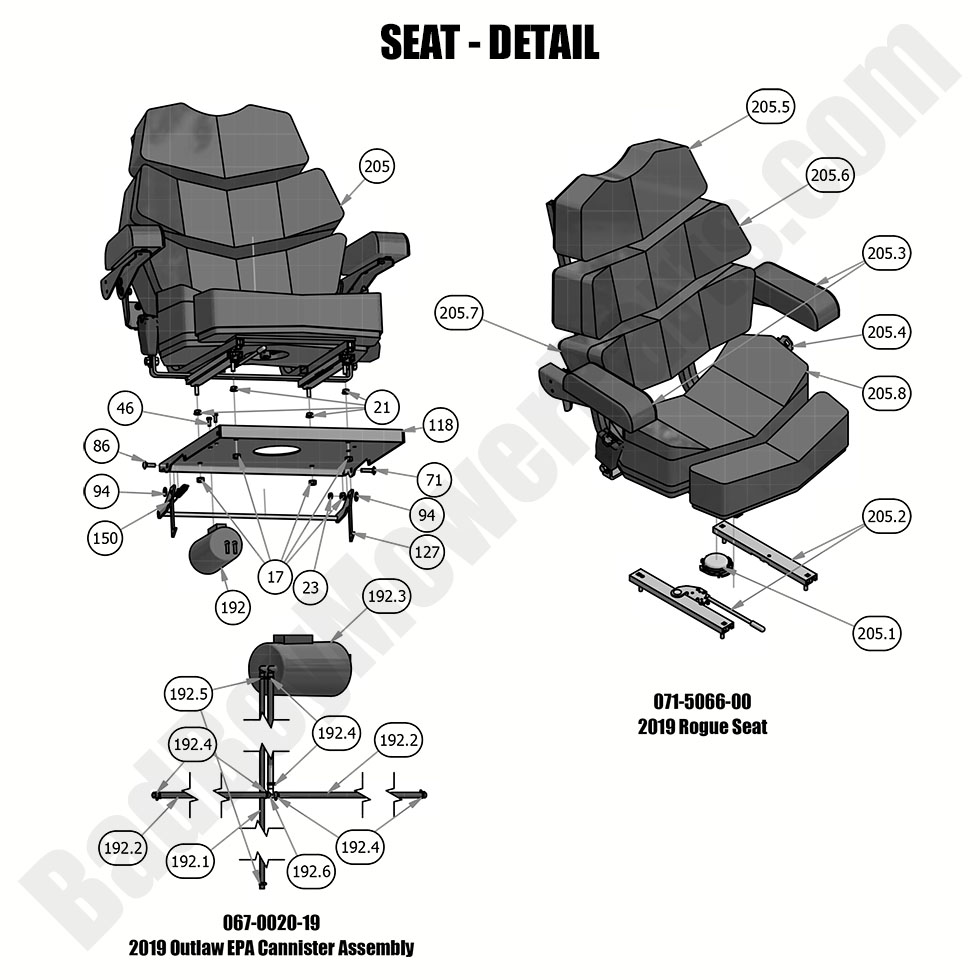

2019 Rogue - Seat  - Detail

2019 Rogue - Seat - Detail

The 2019 Rogue Seat - Detail system is designed for maximum comfort and operator support during extended mowing sessions. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including ergonomic seats, seat brackets, cushions, and armrests to ensure durability and comfort. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for long-lasting reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct seat components for easy installation. Routine maintenance prevents wear, enhances operator comfort, and improves overall mower usability. We provide Bad Boy Parts Online for quick replacements and seamless ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rogue Seat - Detail is now more budget-friendly. Order today for superior seating comfort and extended durability.

Bad Boy Mower Parts Lookup

2019 Rogue - Seat  - Detail
  Position Number SKU Product Title Price
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
23 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
46 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
71 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
86 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
94 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
118 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
127 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
150 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
192.0 067-0020-19 067-0020-19 - EPA Cannister Assembly Rebel/Renegade Gas/Rogue (See Models Used On For Details)
$47.62
192.1 051-2025-66 051-2025-66 - 66" 3/16 Vinyl EPA Line
$13.26
192.2 051-8072-38 051-8072-38 - 38" 1/4 Vinyl Tubing
$28.39
192.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
192.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
192.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
192.6 073-8068-00 073-8068-00 - Fuel Line T
$9.70

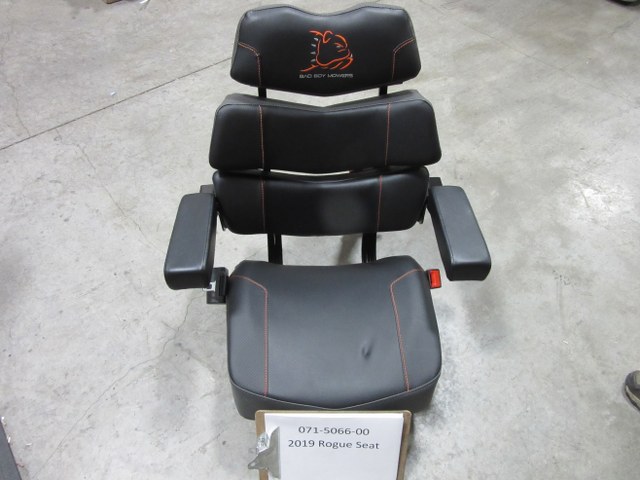

205.0 071-5066-00 071-5066-00 - 2019-2021 Rogue Seat
$729.99
205.2 071-5015-00 071-5015-00 - Seat Rails
$93.69

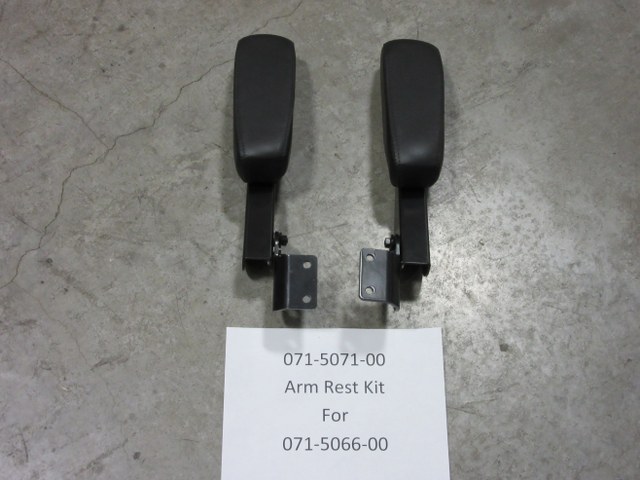

205.3 071-5071-00 071-5071-00 - Arm Rest Kit for 071-5066-00 (See Models Used On For Details)
$197.99

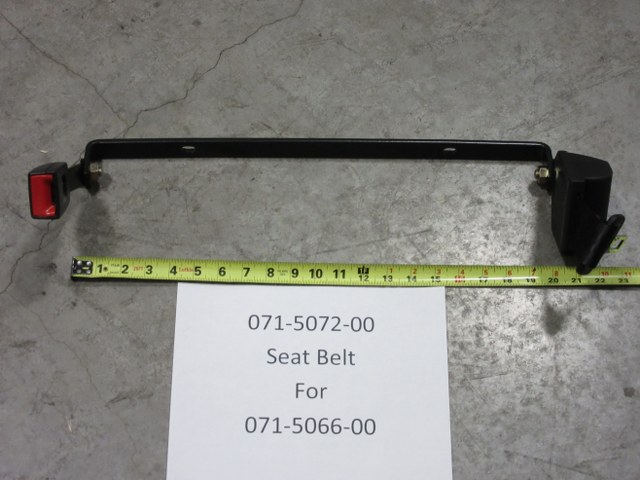

205.4 071-5072-00 071-5072-00 - Seat Belt for 071-5066-00
$132.69

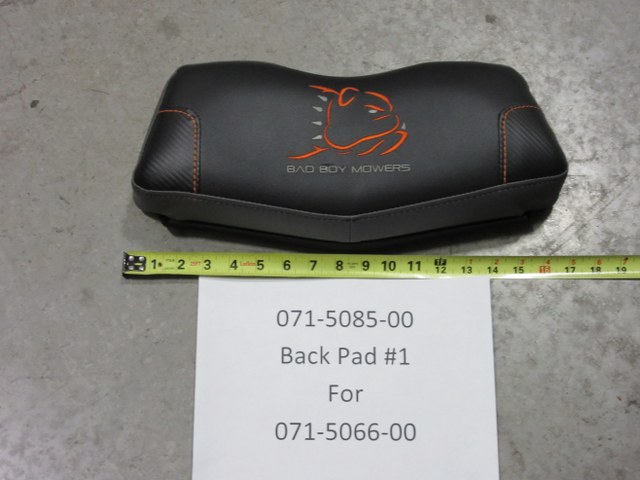

205.5 071-5085-00 071-5085-00 - Back Pad #1 for 071-5066-00 (See Models Used On For Details)
$223.99
205.6 071-5086-00 071-5086-00 - Back Pad # 2 for 071-5066-00
$223.99
205.7 071-5087-00 071-5087-00 - Back Pad # 3 for 071-5066-00
$232.99
205.8 071-5088-00 071-5088-00 - Seat Pad Assembly for 071-5066-00
$245.99
