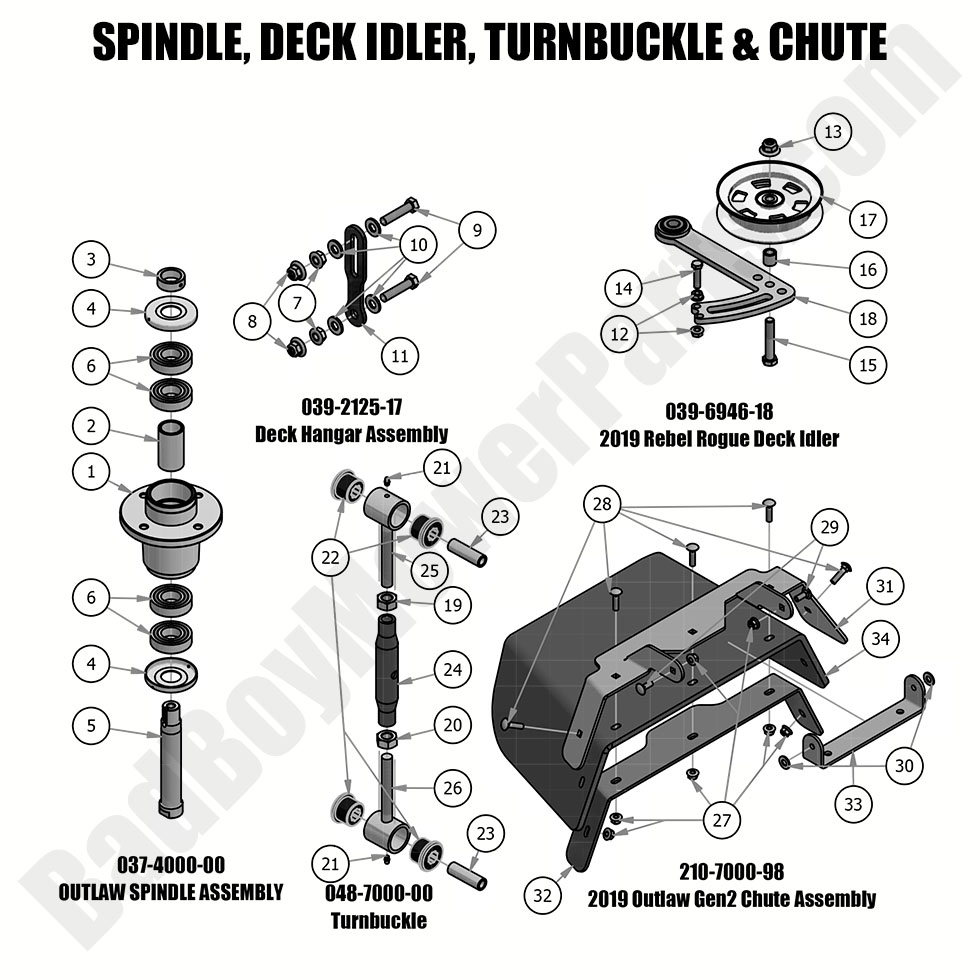

2019 Rogue - Spindle, Turnbuckle, Idler & Chute

2019 Rogue - Spindle, Turnbuckle, Idler & Chute

The 2019 Rogue Spindle, Turnbuckle, Idler & Chute system ensures smooth blade rotation and efficient grass discharge. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts, including durable spindles, high-tension idler pulleys, reinforced turnbuckles, and discharge chutes for optimal performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements built for precision and efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct spindle, turnbuckle, idler, and chute components for easy installation. Routine maintenance prevents belt slippage, enhances blade rotation, and ensures even grass dispersal. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rogue Spindle, Turnbuckle, Idler & Chute is now more cost-effective. Order today for superior cutting performance and long-term durability.

Bad Boy Mower Parts Lookup

2019 Rogue - Spindle, Turnbuckle, Idler & Chute
  Position Number SKU Product Title Price
1.0 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
2 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
3 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
5 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
6 037-6029-00 037-6029-00 - Spindle Bearing (See Models Used On For Details)
$42.58
7 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
10 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
11.0 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
11 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
12 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
14 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
15 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
16 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
17.0 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
17 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
18 039-6946-00 039-6946-00 - Deck Tensioner 2019-2025 Rebel, Renegade & Rogue
$35.48
19 013-0007-00 013-0007-00 - 11/16-12 Hex Nut Toplink
$2.99
20 013-0008-00 013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink
$2.99
21 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
22 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
23 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
24.0 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
24 048-7020-00 048-7020-00 - Outlaw Toplink Body (See Models Used On For Details)
$28.32
25 048-7021-00 048-7021-00 - Outlaw Toplink RH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
26 048-7022-00 048-7022-00 - Outlaw Toplink LH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
27 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
28 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
29 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
30 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
31.0 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
31 039-4893-00 039-4893-00 - Upper Chute Bracket (See Models Used On For Details)
$46.84
32 039-4894-00 039-4894-00 - Lower Chute Bracket (See Models Used On For Details)
$43.72
33 206-6018-00 206-6018-00 - Chute Hanger 2019-2025 Rebel, Revolt, Renegade & Rogue
$9.67
34 210-6025-00 210-6025-00 - Belted Chute with Logo 2019-& Up Rebel, Revolt, Renegade & Rogue
$62.40
