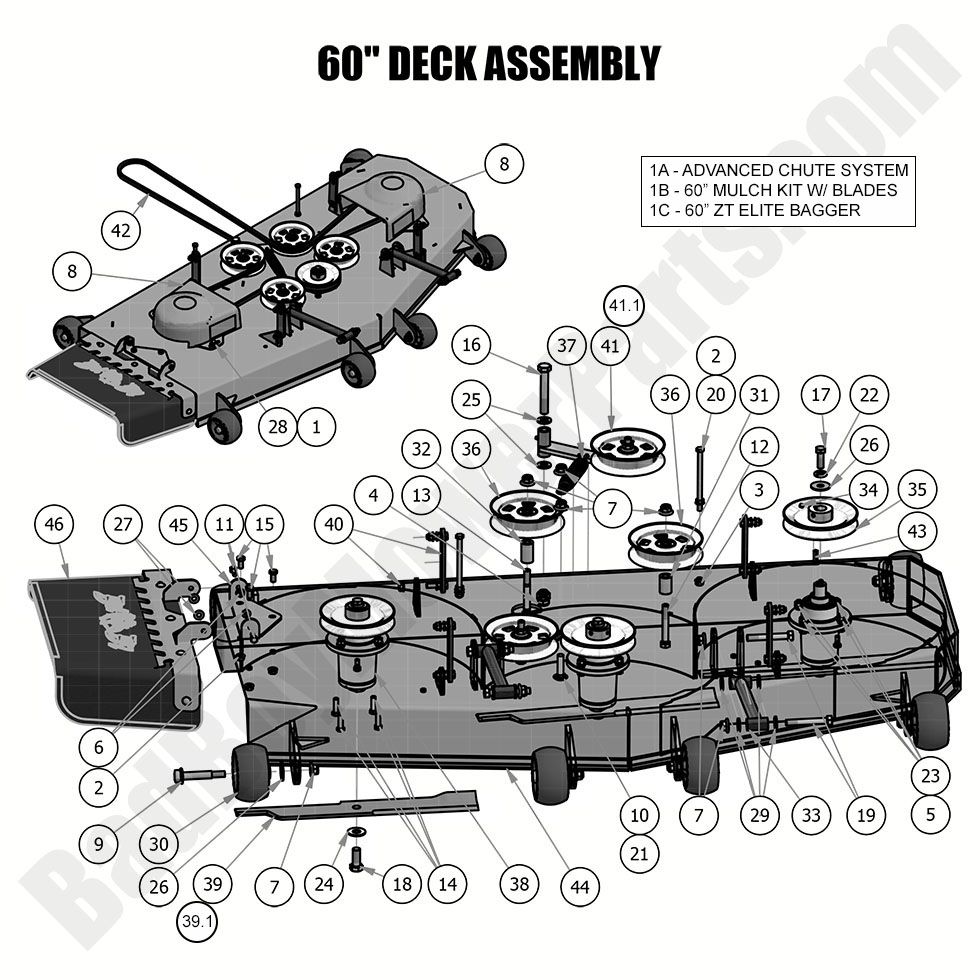

2019 ZT Elite - 60" Deck Assembly

2019 ZT Elite - 60" Deck Assembly

The 2019 ZT Elite 60" Deck Assembly is built for maximum efficiency, delivering a broader cutting range for faster mowing times. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts, including durable spindles, reinforced blades, belt kits, and pulleys for optimal performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements that offer superior durability. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct components for easy installation. Routine deck maintenance enhances cutting precision, prevents uneven mowing, and extends component longevity. We offer Bad Boy Parts Online, so you can conveniently order all necessary parts. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 ZT Elite 60" Deck Assembly is now more cost-effective. Order today for long-lasting, high-performance mowing efficiency.

Bad Boy Mower Parts Lookup

2019 ZT Elite - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0260-50 210-0260-50 - 2017-2025 60" Mulch Kit w/Blades (Not for MZ or Avenger)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
11 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
15 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
16 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
19 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
20 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
21 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
24 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
25 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
26 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
27 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
28 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
29 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
30A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
30 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
31 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
32 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
33 028-0004-00 028-0004-00 - 2017-2021 ZT/MZ/MZ Magnum Deck Locator (obsolete)
use part #028-0004-22
$46.84
34 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
35 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
36 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
37 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
38 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
39.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
39 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
40 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
41.1 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
41 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
42 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
43 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
44 060-6017-00 060-6017-00 - 60" Deck Shell 2017-2022 ZT & 2018-2022 Maverick
$1399.99
45 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
46 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
