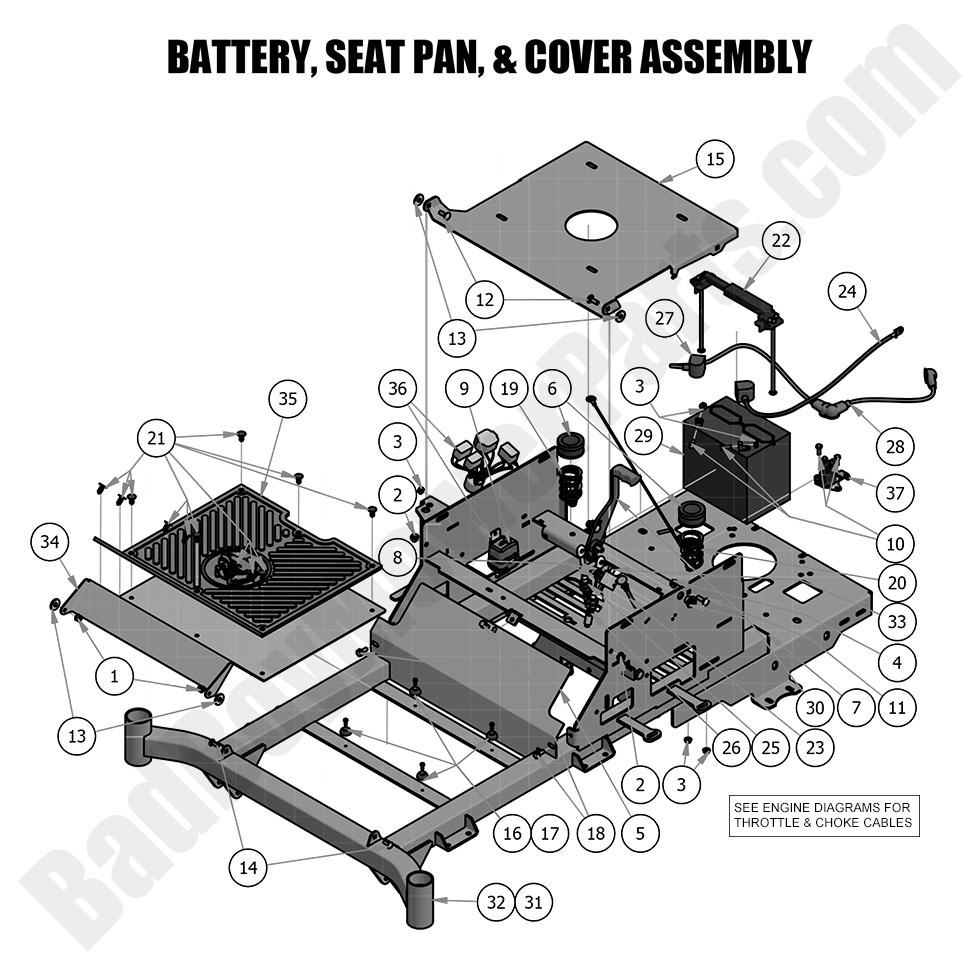

2019 ZT Elite - Battery, Seat Pan & Covers

2019 ZT Elite - Battery, Seat Pan & Covers

The 2019 ZT Elite Battery, Seat Pan & Covers are essential components that protect key mower parts and ensure operator comfort. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts, including seat pan covers, durable battery replacements, and protective coverings designed for longevity. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements built for durability and superior performance. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct battery, seat pan, or cover replacements for easy installation. Routine maintenance of these parts prevents wear, enhances seating comfort, and keeps your mower looking professional. We provide Bad Boy Parts Online, making it easy to order and receive everything you need. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 ZT Elite Battery, Seat Pan & Covers is now more cost-effective. Order today for superior protection, reliability, and long-lasting comfort.

Bad Boy Mower Parts Lookup

2019 ZT Elite - Battery, Seat Pan & Covers
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
5 014-3417-00 014-3417-00 - 2017-2021 ZT Elite & 2018-2020 Compact Outlaw Cooler Cover
$76.50
6 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
7 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
8 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
9 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
10 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
11 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
12 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
13 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
14 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
15 026-1016-00 026-1016-00 - Seat Plate
$102.11
16 029-4010-00 029-4010-00 - Button Bumper
$2.99
17 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
18 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
19 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
20 034-8045-04 034-8045-04 - 2017 Seat Spring Assy. With Cable
$31.09
21 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
22 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
24 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
25 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
26 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
27 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
28 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
30 069-1050-01 069-1050-01 - Brake Handle Assembly
$21.39
31 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
33 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
34 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
35 081-4000-00 081-4000-00 - 2017-2021 Floor Mat (See Models Used On For Details)
$62.48
36 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
37 108-0001-00 108-0001-00 - Solenoid
$29.41
