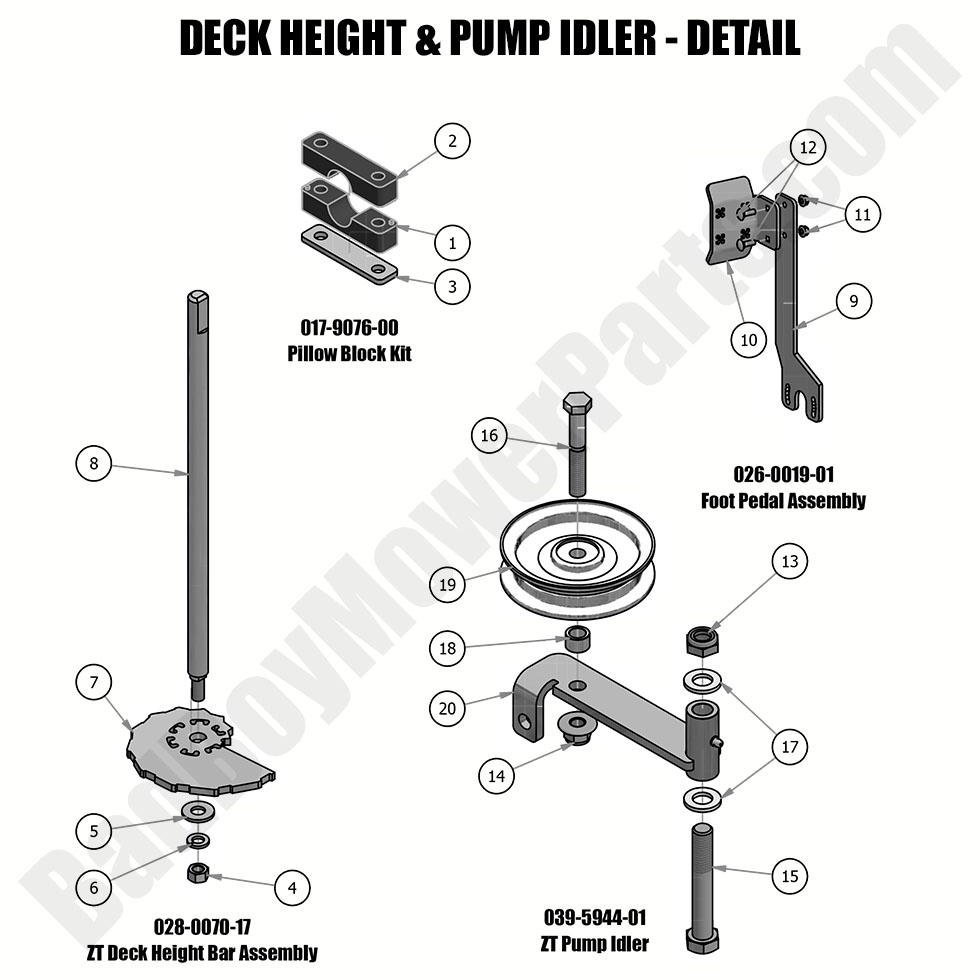

2019 ZT Elite - Deck Height & Pump Idler Detail

2019 ZT Elite - Deck Height & Pump Idler Detail

The 2019 ZT Elite Deck Height & Pump Idler Detail ensures precise cutting height adjustments and smooth belt operation. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts, including idler pulleys, height adjustment levers, bushings, and securing hardware to maintain peak performance. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements for long-term durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct deck height and idler components for seamless installation. Routine maintenance improves cutting precision, enhances belt tension, and prevents uneven mowing. We also offer Bad Boy Parts Online, making it easy to find and order essential parts. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 ZT Elite Deck Height & Pump Idler Detail is now more affordable. Order today for enhanced control, precision cutting, and long-lasting performance.

Bad Boy Mower Parts Lookup

2019 ZT Elite - Deck Height & Pump Idler Detail
  Position Number SKU Product Title Price
1.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
2 017-9078-00 017-9078-00 - Pillow Block-Female (obsolete)
use part #017-9077-00
$21.28
3 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
4.0 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
4 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
5 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
6 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
7 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
8 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
9.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
9 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
10 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
11 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
12 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
13.0 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
13 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
14 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
17 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
18 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
19 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
20 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
