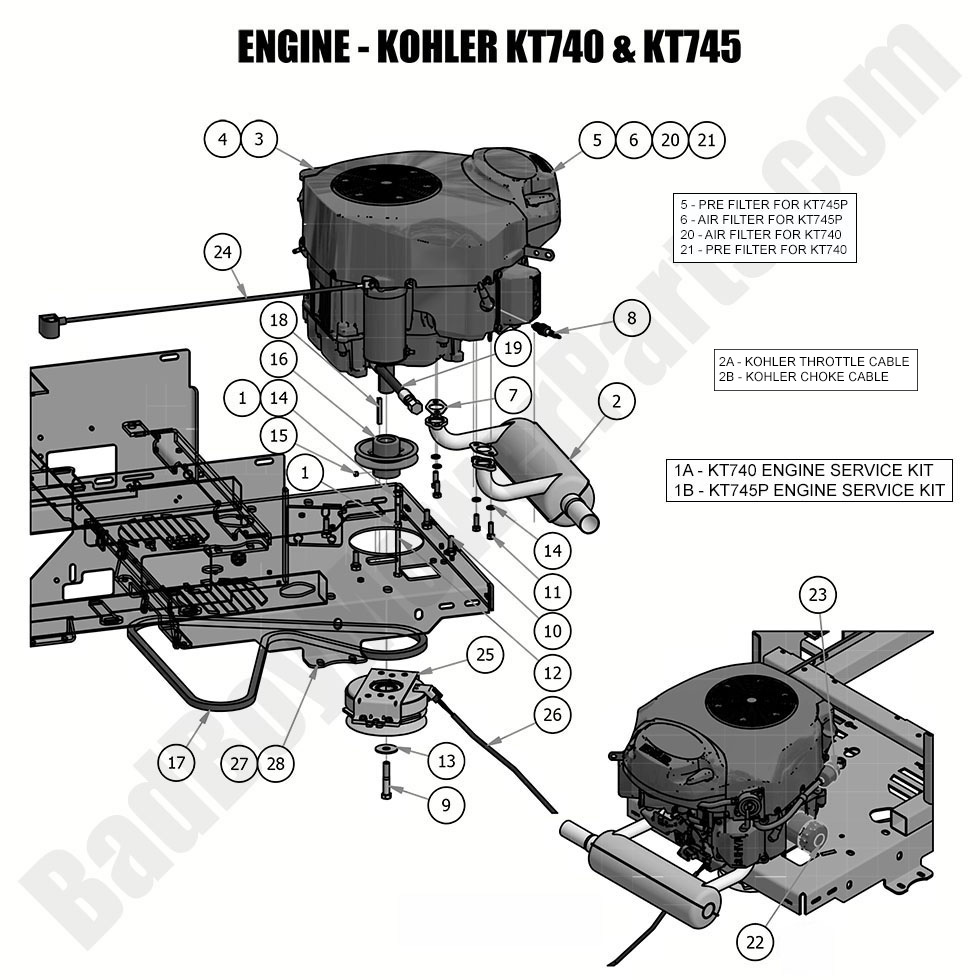

2019 ZT Elite - Engine - Kohler KT740 & KT745

2019 ZT Elite - Engine - Kohler KT740 & KT745

The 2019 ZT Elite Engine - Kohler KT740 & KT745 is a high-efficiency engine requiring routine maintenance to stay in peak condition. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including spark plugs, air filters, cooling components, and fuel injectors for optimal engine function. Our Bad Boy Lawn Mower Parts inventory provides factory-grade replacements built for durability. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct Kohler KT740 & KT745 engine components for easy installation. Routine maintenance enhances engine response, prevents overheating, and extends the mower's lifespan. We also provide Bad Boy Parts Online, making it simple to find and order essential parts. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 ZT Elite Engine - Kohler KT740 & KT745 is now more cost-effective. Order today for high-powered performance and long-term reliability.

Bad Boy Mower Parts Lookup

2019 ZT Elite - Engine - Kohler KT740 & KT745
  Position Number SKU Product Title Price
1A 063-2000-06 063-2000-06 - Kohler 7000 Series Engine Service Kit
$94.47
1B 063-2000-12 063-2000-12 - Engine Service Kit For Kohler 7000 Series PRO
$106.06
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 015-0051-00 015-0051-00 - 2017-2024 Kohler Exhaust MZ/ZT/Maverick
$217.48
3 015-2020-00 015-2020-00 - 25hp Kohler-48" 2014-2022 ZT KT740-3030 (obsolete)
use part #015-2018-00
$2399.99
4 015-2026-00 015-2026-00 - 26hp Kohler-2018-2022 ZT-KT745-3088 (obsolete)
use part #015-2018-00
$2399.99
5 015-2026-02 015-2026-02 - Air Pre-Cleaner for Kohler
$10.91
6 015-2026-03 015-2026-03 - Air Filter Element for Kohler
$37.44
7 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
8 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
9 018-5450-00 018-5450-00 - 7/16-20 x 1 1/2 Fine Thread Bolt Gr8
$2.99
10 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
11 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
13 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
14 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
15 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
16 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
17 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
18 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
19 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
20 063-5002-00 063-5002-00 - 25/26 HP Koh Precleaner ZT/MZ
$9.89
21 063-5003-00 063-5003-00 - 25/26 HP Koh Air Filter ZT/MZ
$34.23
22 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
23 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
24 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
25 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
26 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
27 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
28 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
