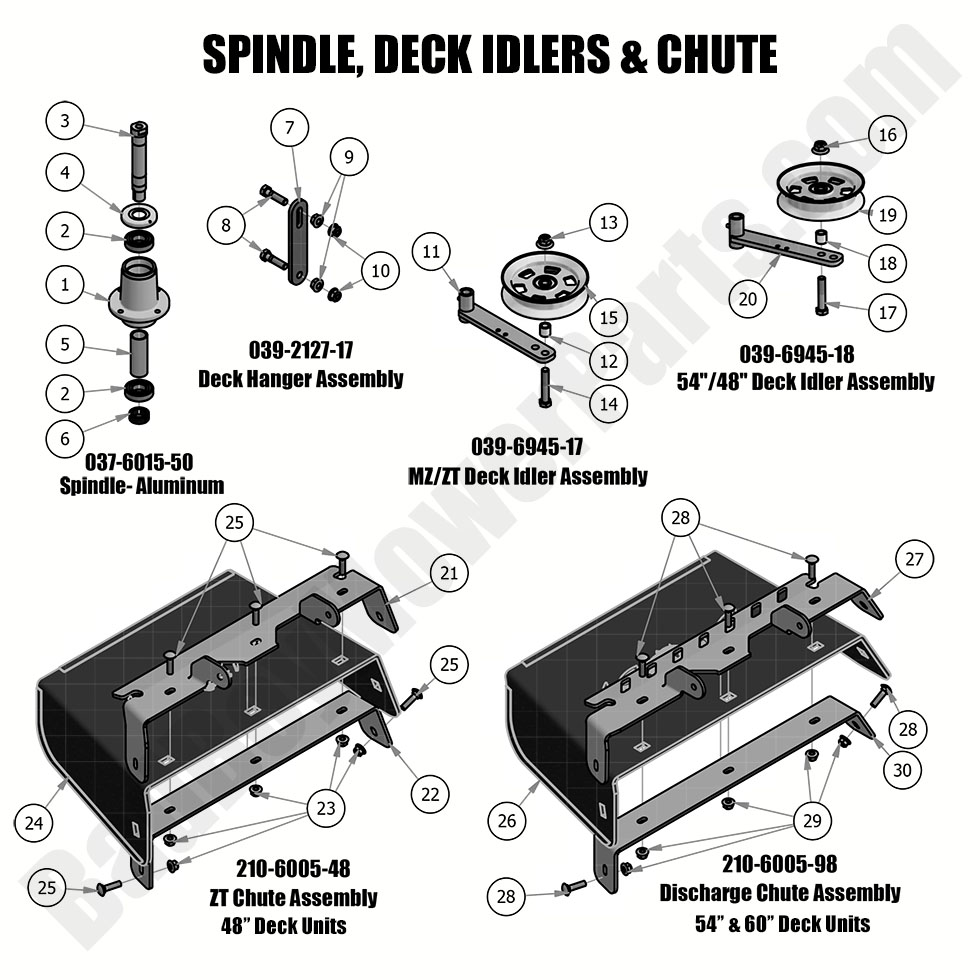

2019 ZT Elite - Spindle, Deck Idlers & Chute

2019 ZT Elite - Spindle, Deck Idlers & Chute

The 2019 ZT Elite Spindle, Deck Idlers & Chute are essential for maintaining smooth blade rotation and efficient grass discharge. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts, including durable spindles, high-tension idler pulleys, and reinforced discharge chutes for maximum efficiency. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for precision and longevity. Using our Bad Boy Mower Part diagrams, you can easily find and order the necessary spindle, idler, and chute components for simple installation. Routine maintenance prevents belt slippage, improves blade rotation, and ensures even grass dispersal. We stock Bad Boy Parts Online, making ordering replacements fast and convenient. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 ZT Elite Spindle, Deck Idlers & Chute is now more affordable. Order today for professional-quality mowing and long-lasting performance.

Bad Boy Mower Parts Lookup

2019 ZT Elite - Spindle, Deck Idlers & Chute
  Position Number SKU Product Title Price
1.0 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
1 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$199.99
2 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
3 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
5 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
7.0 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
7 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
8 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11.0 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
11 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
12 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
14 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
15 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
16.0 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
21.0 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
21 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
22 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
23 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
24 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
25 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
26.0 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
27 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
30 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
