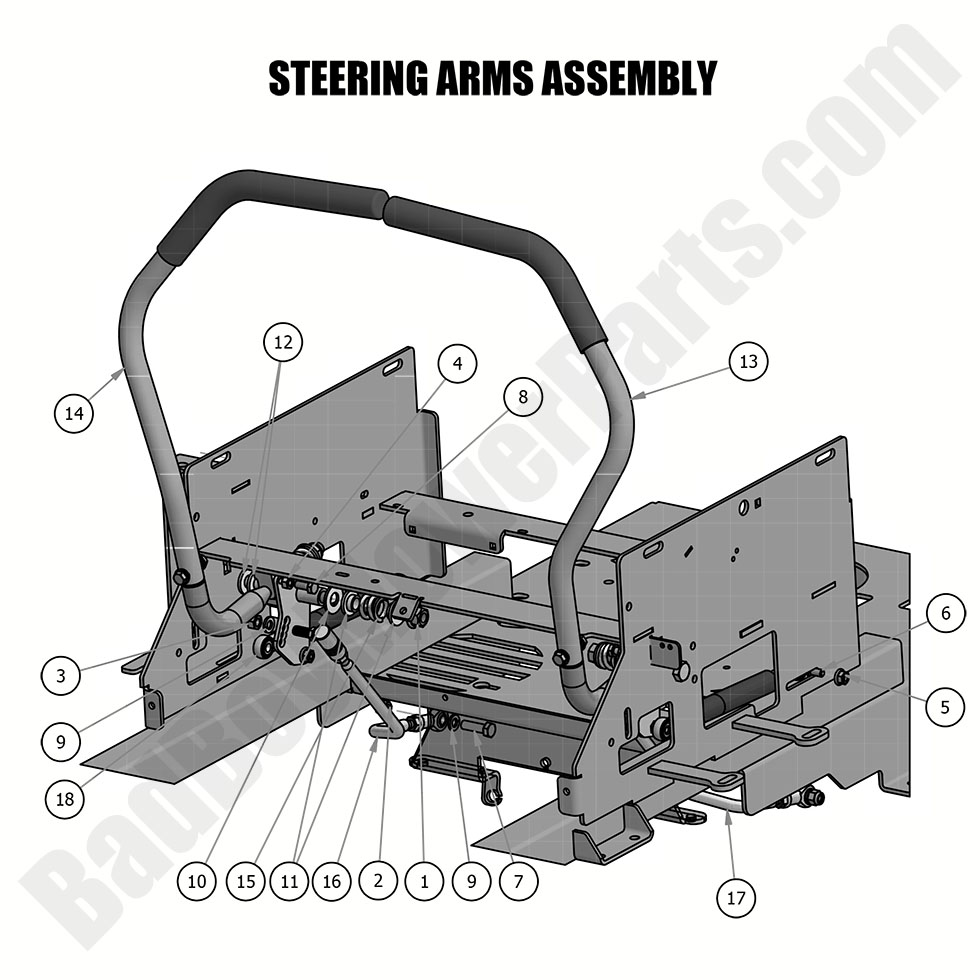

2019 ZT Elite - Steering Arm Assembly

2019 ZT Elite - Steering Arm Assembly

The 2019 ZT Elite Steering Arm Assembly plays a critical role in ensuring smooth control and easy maneuverability. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts, including high-strength steering arms, durable bushings, and secure mounting brackets for precision steering. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary steering assembly components for seamless installation. Routine maintenance improves mower handling, prevents misalignment, and ensures long-term performance. We also offer Bad Boy Parts Online, so finding and ordering replacement parts is easy. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 ZT Elite Steering Arm Assembly is now more affordable. Order today to enjoy improved steering precision, effortless control, and long-lasting performance.

Bad Boy Mower Parts Lookup

2019 ZT Elite - Steering Arm Assembly
  Position Number SKU Product Title Price
1 013-0010-00 013-0010-00 - 1/2-13 Mechanical Lock Nut
$2.99
2 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
4 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
7 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
8 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
11 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
12 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
13 031-0017-01 031-0017-01 - Left Steering Arm Assembly (See Models Used On for Details)
$145.99
14 031-0018-01 031-0018-01 - Right Steering Arm Assembly (See Models Used On for Details)
$145.99
15 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
16 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
17 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
18 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
