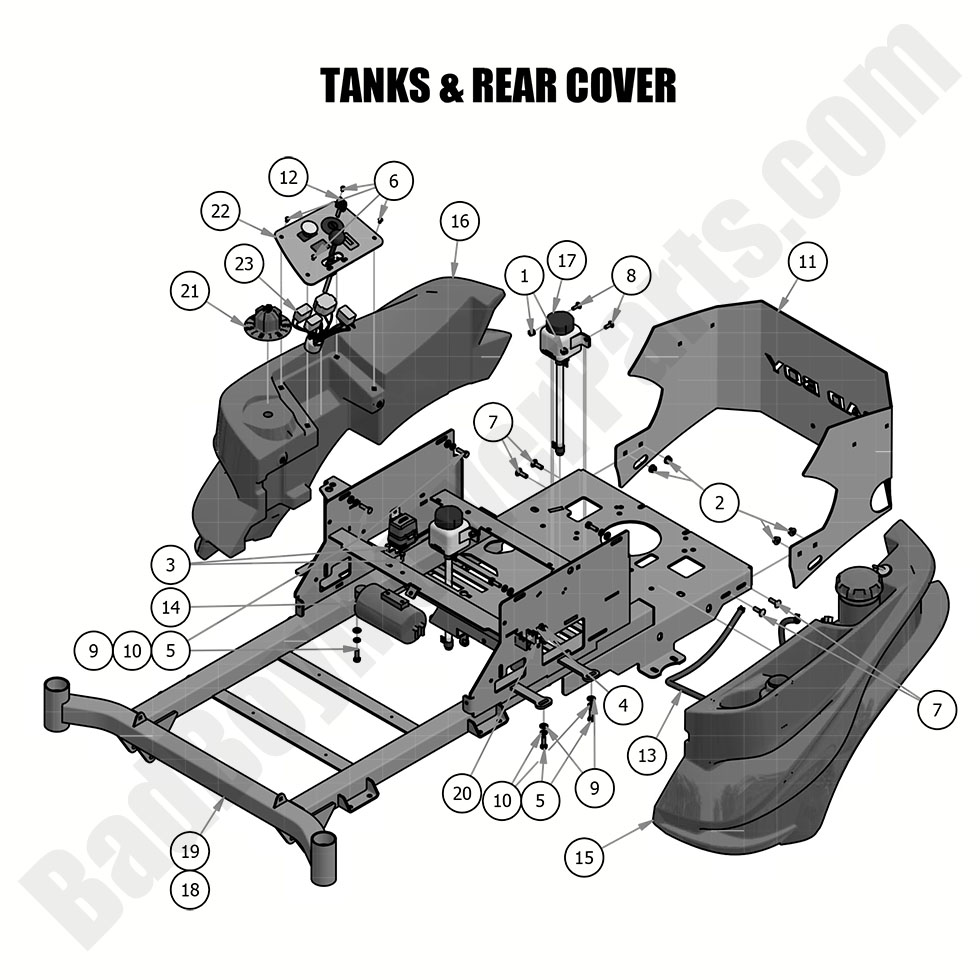

2019 ZT Elite - Tanks & Rear Covers

2019 ZT Elite - Tanks & Rear Covers

The 2019 ZT Elite Tanks & Rear Covers provide essential protection for fuel storage and engine components. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including fuel tanks, gas caps, rear protective covers, and mounting hardware for durability. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for longevity. With our Bad Boy Mower Part diagrams, you can quickly locate and order the correct tank and rear cover components for easy installation. Routine maintenance prevents fuel leaks, protects internal components, and ensures safe operation. We provide Bad Boy Parts Online, allowing you to find and order the necessary replacements anytime. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 ZT Elite Tanks & Rear Covers is now more cost-effective. Order today for long-lasting protection and reliable fuel storage.

Bad Boy Mower Parts Lookup

2019 ZT Elite - Tanks & Rear Covers
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
4 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
5 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
6 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
7 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
8 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
11 026-0090-00 026-0090-00 -Rear Plate (See Models Used On For Details)
$219.99
12 042-9000-00 042-9000-00 - Ignition Key
$4.06
13 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
14 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
15 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
16 067-2070-50 067-2070-50 - Right Side Console
$228.99
17 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
18 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
19 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
20 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
21 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
22 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
23 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
