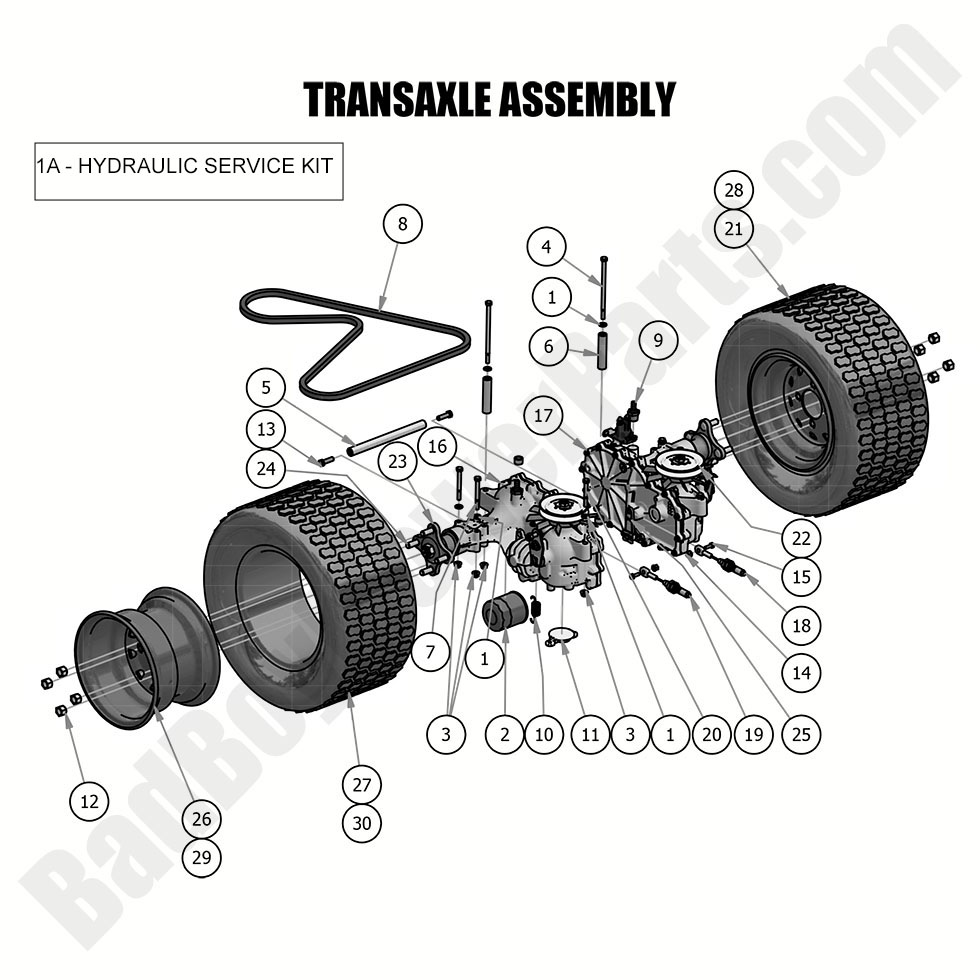

2019 ZT Elite - Transaxle Assembly

2019 ZT Elite - Transaxle Assembly

The 2019 ZT Elite Transaxle Assembly ensures smooth and efficient power transfer to the wheels, providing excellent maneuverability and speed control. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts, including hydro pumps, transaxle housings, filters, seals, and hydraulic fluid to keep your transmission in peak condition. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for durability. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct transaxle components for easy installation. Routine maintenance helps prevent gear wear, improves transmission efficiency, and extends the mower’s lifespan. We also offer Bad Boy Parts Online, so ordering replacement parts is fast and hassle-free. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 ZT Elite Transaxle Assembly is now more affordable. Order today for superior power transfer, smoother operation, and long-lasting reliability.

Bad Boy Mower Parts Lookup

2019 ZT Elite - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
2 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
5 025-0017-00 025-0017-00 - Transaxle Spacer (See Models Used On For Detail)
$14.04
6 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
7 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
8 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
9 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
10 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
11 050-2071-00 050-2071-00 - ZT Transaxle Charge Plate
$98.43
12 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
13 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
14 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
15 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
16 050-2095-00 050-2095-00 - 2017-2021 Right ZT Elite Transaxle & 36" 2020-2021 Revolt (obsolete)
use part #050-2095-01
$729.99
17 050-2096-00 050-2096-00 - 2017-2021 Left ZT Elite Transaxle & 36" 2020-2021 Revolt (obsolete)
use part #050-2096-01
$729.99
18 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
19 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
20 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
21 022-2015-00 022-2015-00 - ZT Black Assy 22x11-10 (See Models Used On For Details)
$320.99
22 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
23 050-2076-00 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details)
$90.56
24 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
25 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
26 022-2015-50 022-2015-50 - ZT Wheel for 54" and 60" decks, fits 022-2015-00 & 022-2215-00
$114.99
27 022-2020-00 022-2020-00 - ZT Tire Only 22x11-10 Carlisle
$289.99
28 022-2018-00 022-2018-00 - ZT Black Assy 22x10-10 48" Deck (See Models Used On For Details)
$320.99
29 022-2019-17 022-2019-17 - 10" Black Wheel for 48" ZT
$99.50
30 022-2024-17 022-2024-17 - 22x10-10 Tire for the 48" ZT fits the 022-2018-00
$175.99
