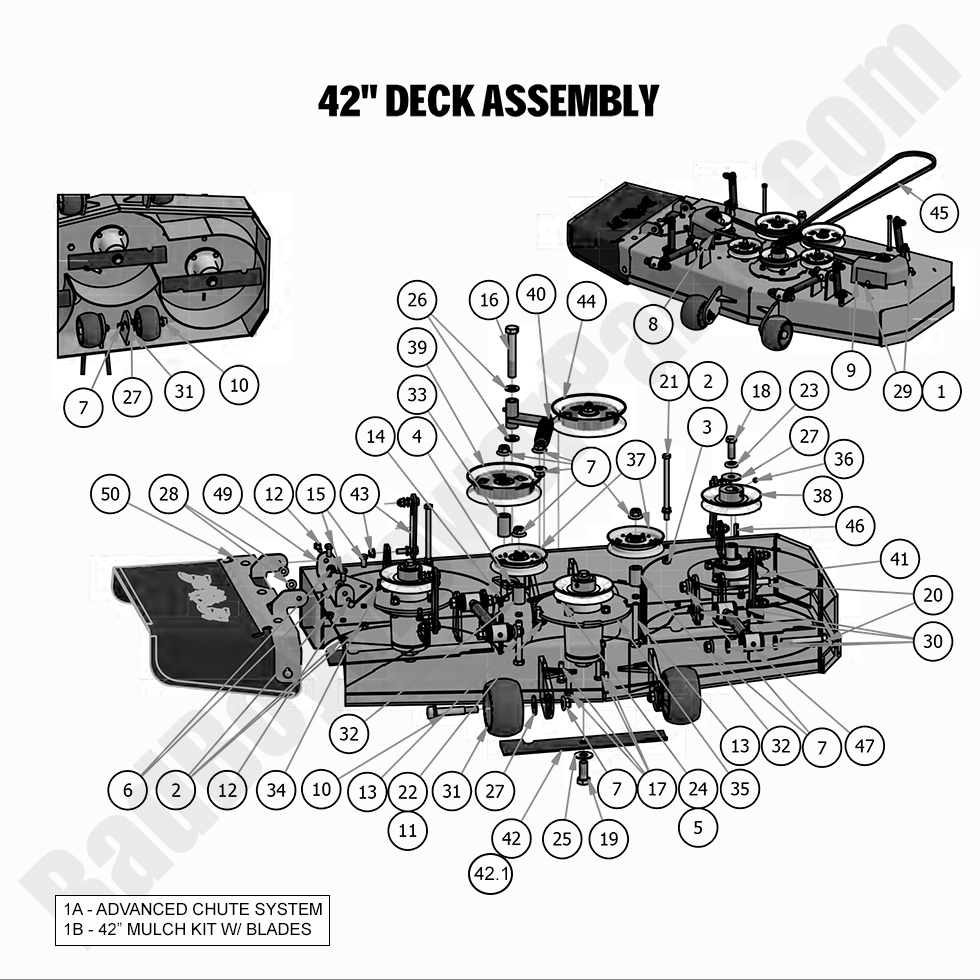

2020 Compact Outlaw - 42" Deck Assembly

2020 Compact Outlaw - 42" Deck Assembly

The 2020 Compact Outlaw 42" Deck Assembly is a critical component for your mower’s cutting performance. If you need to replace or repair the deck assembly, our extensive selection of Bad Boy Mower Parts will provide you with the right parts for the job. The Bad Boy Mower Part diagrams available on our website allow you to quickly locate all the parts you need for the deck assembly. With a complete inventory of Bad Boy Lawn Mower Parts for the 2020 Compact Outlaw, from spindles to belts, you’ll find everything to restore your mower’s cutting power. Ordering is simple with Bad Boy Parts Online, and you’ll also benefit from Free Shipping On Orders Over $100. Get the right parts and keep your mower in top shape by visiting BadBoyMowerParts.com for all your 2020 Compact Outlaw deck assembly needs.

Bad Boy Mower Parts Lookup

2020 Compact Outlaw - 42" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0042-50 210-0042-50 - 2017 -2021 42" Compact Outlaw Kit w/ Blades (Will Not Fit 42" Maverick HD)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
9 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
10 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
11 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
12 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
15 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
16 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
17 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
21 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
22 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
23 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
24 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
25 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
26 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
28 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
29 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
30 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
31 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
32 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
33 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
34 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
35 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
36 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
37 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
38 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
39 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
40 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
41 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
42.1 038-4227-00 038-4227-00 - 42" Gator Blade
$21.99
42 038-4226-00 038-4226-00 - 42" High Lift Blade-Outlaw
$21.99
43 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
44 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
45 041-4022-00 041-4022-00 - B138 Deck Belt (See Models Used On For More Details, Not For 54" CZT/Stand-On)
$78.01
46 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
47 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
49 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
50 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
