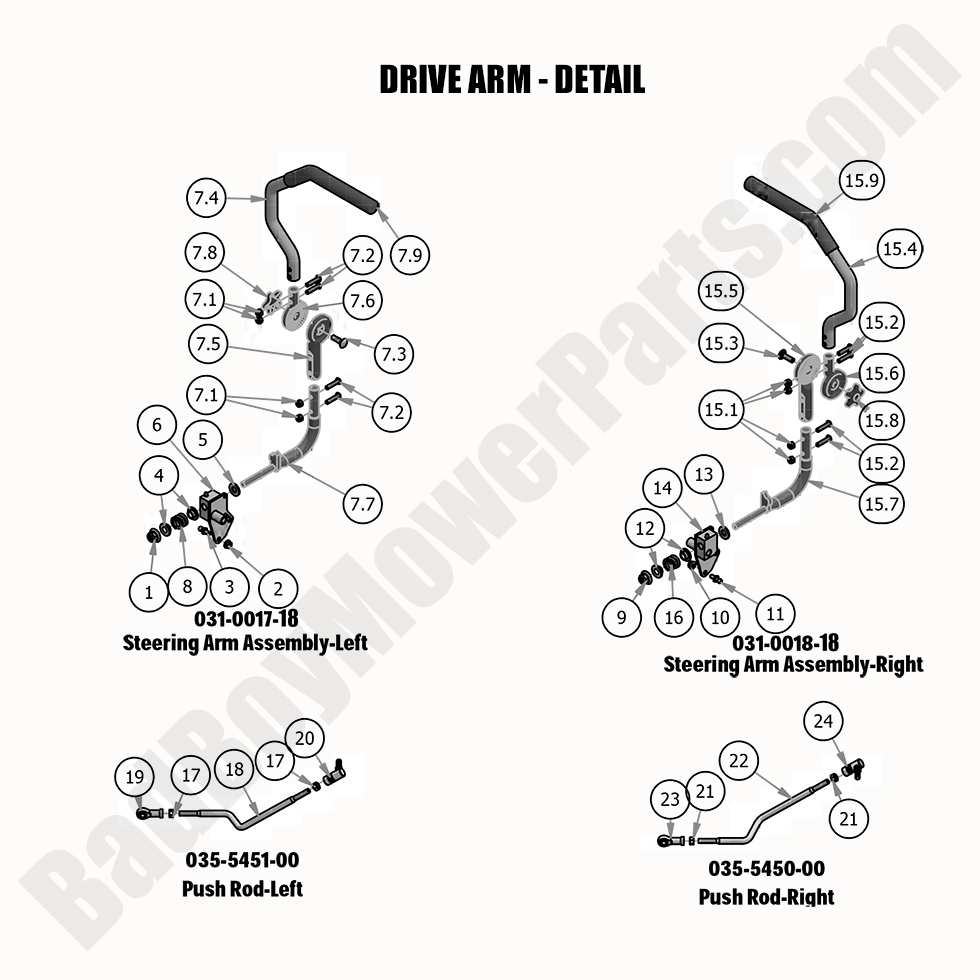

2020 Compact Outlaw - Drive Arm - Detail

2020 Compact Outlaw - Drive Arm - Detail

The 2020 Compact Outlaw Drive Arm is essential for transferring power from the engine to the wheels. If you need to replace or repair the drive arm, we have a wide range of Bad Boy Mower Parts to choose from. Our Bad Boy Mower Part diagrams are designed to help you find exactly what you need with ease. You’ll find all the necessary components to fix the 2020 Compact Outlaw Drive Arm in our selection of Bad Boy Lawn Mower Parts. Shopping is made convenient with Bad Boy Parts Online, where you can access detailed information and order directly from our site. Plus, with Free Shipping On Orders Over $100, your parts will be delivered quickly and at no extra cost. Visit BadBoyMowerParts.com to get the right parts for your 2020 Compact Outlaw Drive Arm and keep your mower working at its best.

Bad Boy Mower Parts Lookup

2020 Compact Outlaw - Drive Arm - Detail
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
2 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
3 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
4 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
5 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
6 031-0017-98 031-0017-98 - 2017-2023 Left Drive Lever Housing (See Models Used On For Details)
$31.23
7.0 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
7.1 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
7.2 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
7.3 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
7.4 031-9010-18 031-9010-18 - Upper Steering Arm (See Models Used On For Details)
$28.32
7.5 031-9014-18 031-9014-18 - Black Lower Adjuster Steering Arm 2019-2022 Maverick, Compact Outlaw
$53.24
7.6 031-9017-18 031-9017-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
7.7 031-9020-18 031-9020-18 - Left Black Steering Arm Elbow
$85.17
7.8 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
7.9 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
8 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
14 031-0018-98 031-0018-98 - 2017-2023 Right Drive Lever Housing (See Models Used On For Details)
$23.42
15.0 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
15.5 031-9015-18 031-9015-18 - Left Lower Steering Arm Adjuster Black
$53.24
15.6 031-9016-18 031-9016-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
15.7 031-9025-18 031-9025-18 - 2019 and Newer Black Steering Arm Elbow - Right
$85.17
17.0 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
17 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
19 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
20 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
21.0 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
