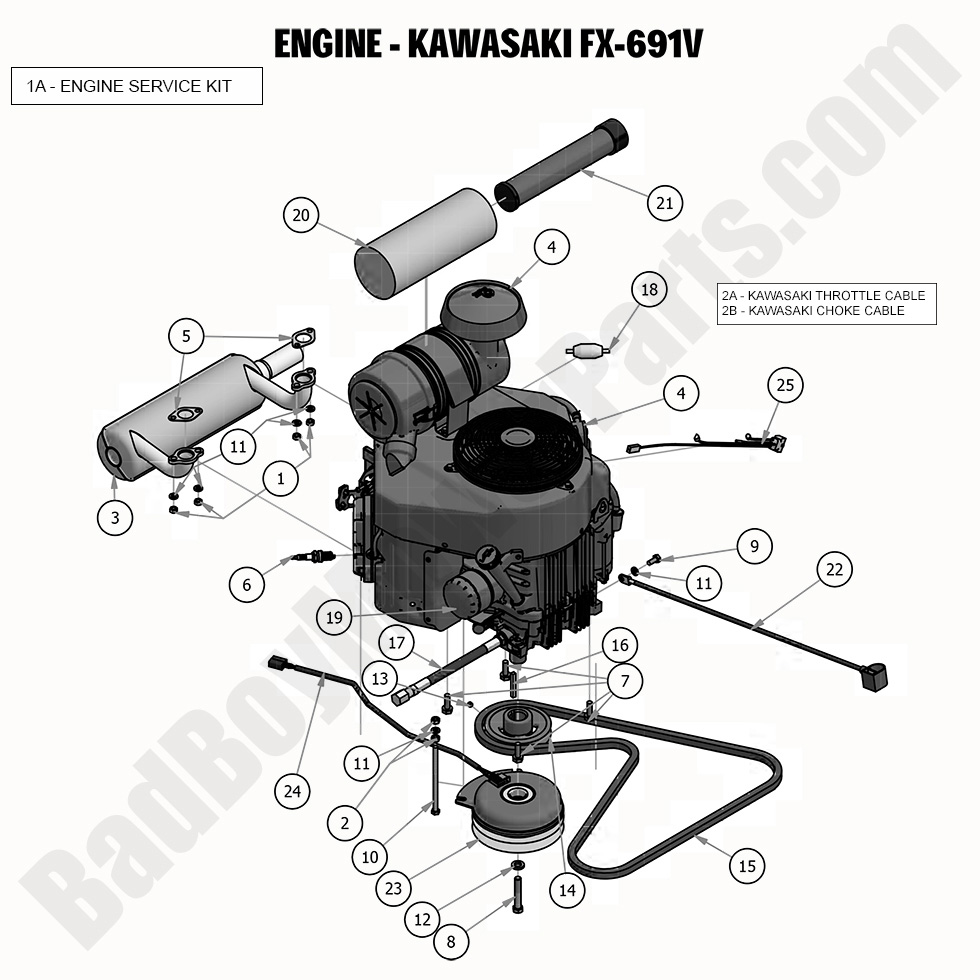

2020 Compact Outlaw - Engine - Kawasaki FX691V

2020 Compact Outlaw - Engine - Kawasaki FX691V

If you're looking for 2020 Compact Outlaw Engine - Kawasaki FX691V parts, we have a wide range of Bad Boy Mower Parts to keep your engine running at its best. The Kawasaki FX691V is known for its reliability, and when it needs replacement parts, our Bad Boy Mower Part diagrams will help you identify exactly what you need. From air filters to spark plugs, we stock all the essential Bad Boy Lawn Mower Parts that ensure your engine operates efficiently. With Bad Boy Parts Online, shopping for these parts is fast and simple. We also offer Free Shipping On Orders Over $100, so you can save on shipping while getting the right parts. Trust BadBoyMowerParts.com to provide high-quality components for your 2020 Compact Outlaw Engine - Kawasaki FX691V, keeping your mower running strong for years.

Bad Boy Mower Parts Lookup

2020 Compact Outlaw - Engine - Kawasaki FX691V
  Position Number SKU Product Title Price
1A 063-2000-14 063-2000-14 - Kawasaki FX691V & FX730V Engine Service Kit
$127.15
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
3 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
4 015-0691-00 015-0691-00 - FX691 Kawasaki Compact Outlaw
$2599.00
5 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
6 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
7 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
8 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
9 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
10 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
11 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
12 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
13 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
14 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
15 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
16 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
17 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
18 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
19 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
20 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
21 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
22 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
23 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
24 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
25 086-9002-00 086-9002-00 - Harness Adaptor-Outlaw FX-All
$46.84
