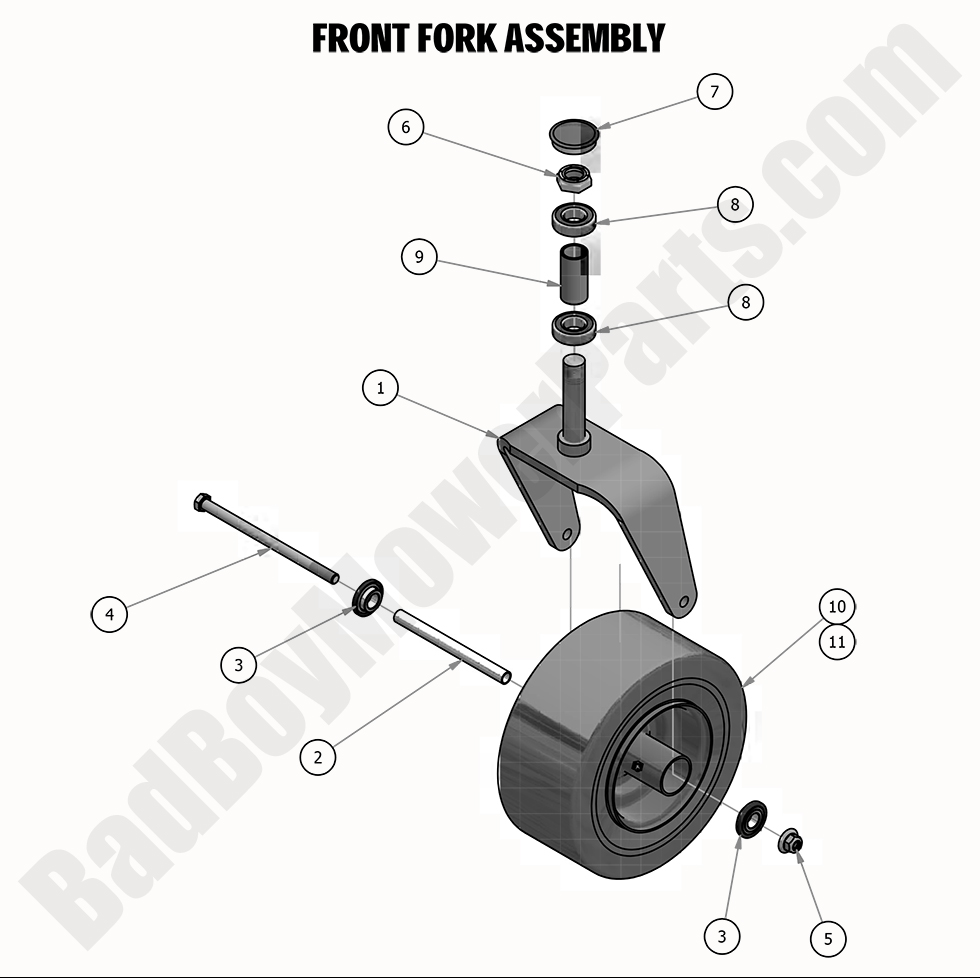

2020 Compact Outlaw - Front Fork Assembly

2020 Compact Outlaw - Front Fork Assembly

The 2020 Compact Outlaw Front Fork Assembly is vital for the stability and maneuverability of your mower. If it needs replacing or repairing, we offer a full selection of Bad Boy Mower Parts to get your mower back in action. Our easy-to-use Bad Boy Mower Part diagrams will guide you to the right components for your front fork assembly. Whether you need a replacement fork or related parts like bushings or bearings, we have everything you need. With Bad Boy Lawn Mower Parts, you'll find high-quality parts that fit your 2020 Compact Outlaw perfectly. Ordering is simple with Bad Boy Parts Online, and we offer Free Shipping On Orders Over $100, so you can get your parts without added shipping costs. Visit BadBoyMowerParts.com for the best selection of parts and accessories for your 2020 Compact Outlaw Front Fork Assembly.

Bad Boy Mower Parts Lookup

2020 Compact Outlaw - Front Fork Assembly
  Position Number SKU Product Title Price
1 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$139.99
2 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
3 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
4 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
7 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
8 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
9 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
10 022-3085-00 022-3085-00 - 13x6.50-6 LARGE BORE-Black Front Assembly
$112.99
11 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
