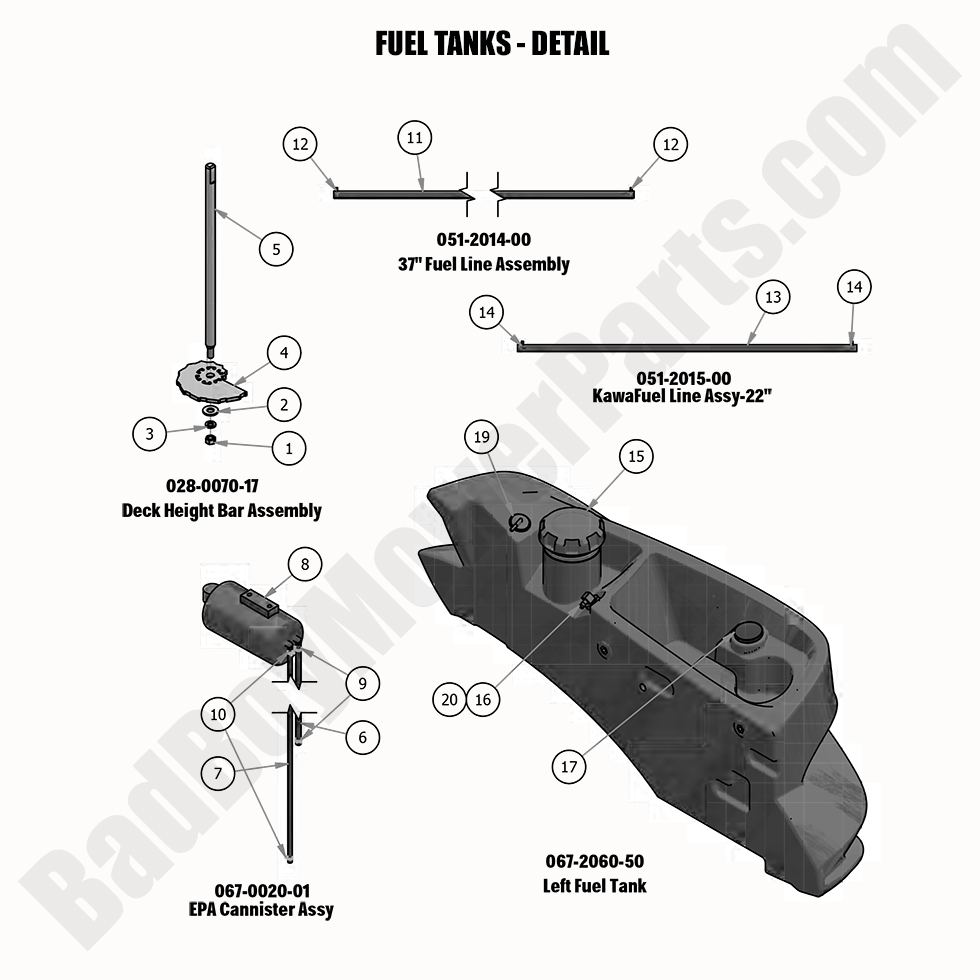

2020 Compact Outlaw - Fuel Tanks - Detail

2020 Compact Outlaw - Fuel Tanks - Detail

If you're experiencing issues with your fuel tank, the 2020 Compact Outlaw Fuel Tanks - Detail page offers the detailed components and parts you need. At BadBoyMowerParts.com, we carry a wide range of Bad Boy Mower Parts specifically designed for your mower’s fuel system. From tanks to hoses, gaskets, and fuel filters, we have everything you need to keep your fuel system running smoothly. Our Bad Boy Mower Part diagrams will help you easily identify and order the right parts. With Bad Boy Lawn Mower Parts, you're guaranteed quality components that fit your 2020 Compact Outlaw. When shopping Bad Boy Parts Online, enjoy the added benefit of Free Shipping On Orders Over $100 to save on delivery costs. Visit us today for all your 2020 Compact Outlaw Fuel Tanks - Detail needs.

Bad Boy Mower Parts Lookup

2020 Compact Outlaw - Fuel Tanks - Detail
  Position Number SKU Product Title Price
1.0 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
3 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
4 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
5 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
6.0 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
6 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
7 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48
8 067-0020-00 067-0020-00 - Carbon Canister
$62.40
9 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
10 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
11.0 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
11 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
12 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
13.0 051-2015-00 051-2015-00 - Fuel Line Assy. 22"
$30.55
13 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
15.0 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
15 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
16 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
17 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
19 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
20 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
