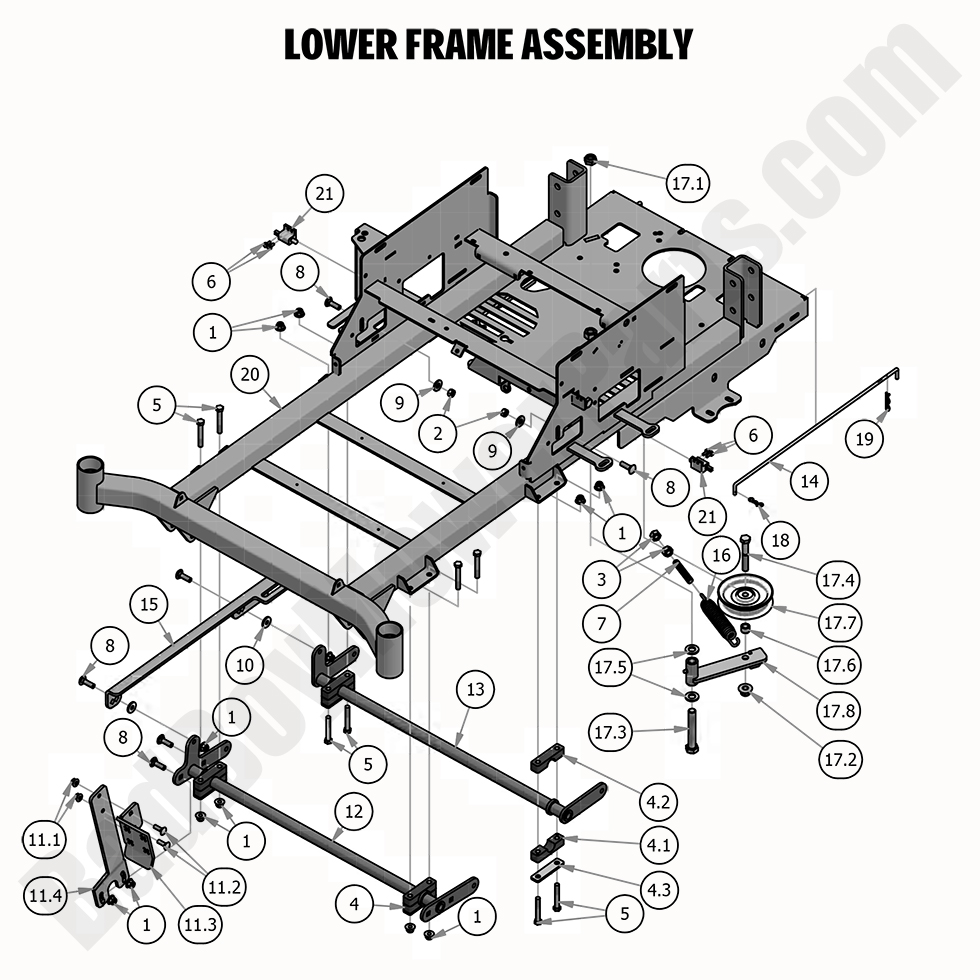

2020 Compact Outlaw - Lower Frame Assembly

2020 Compact Outlaw - Lower Frame Assembly

For a secure and reliable base, the 2020 Compact Outlaw Lower Frame Assembly is essential for the structural integrity of your mower. If it requires replacement or repair, our site offers a large selection of Bad Boy Mower Parts that are designed for durability and performance. Our detailed Bad Boy Mower Part diagrams make it easy to locate the necessary components for the frame assembly. From bolts to the full frame, we have all the Bad Boy Lawn Mower Parts you need to restore your mower. Bad Boy Parts Online ensures you can order everything you need quickly and efficiently. Plus, with Free Shipping On Orders Over $100, you’ll save even more on your purchase. Visit BadBoyMowerParts.com for all your 2020 Compact Outlaw Lower Frame Assembly parts, and keep your mower performing like new.

Bad Boy Mower Parts Lookup

2020 Compact Outlaw - Lower Frame Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
4.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
4.2 017-9078-00 017-9078-00 - Pillow Block-Female (obsolete)
use part #017-9077-00
$21.28
4.3 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
5 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
6 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
7 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
8 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
9 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
10 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
11.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
11.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
11.2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
11.3 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
11.4 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
12 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
13 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
14 031-0060-00 031-0060-00 - 2012-2016 CZT/ZT, 2016-2018 Maverick, 2016-2021 Compact Outlaw Neutral Lever/Rod
$14.19
15 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
16 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
17.0 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
17.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
17.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17.3 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
17.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
17.5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
17.6 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
17.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
17.8 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
18 044-2004-00 044-2004-00 - Bow Pin
$2.99
19 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
20 070-5500-18 070-5500-18 - 2018-2021 Compact Outlaw Frame
$1099.99
21 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
