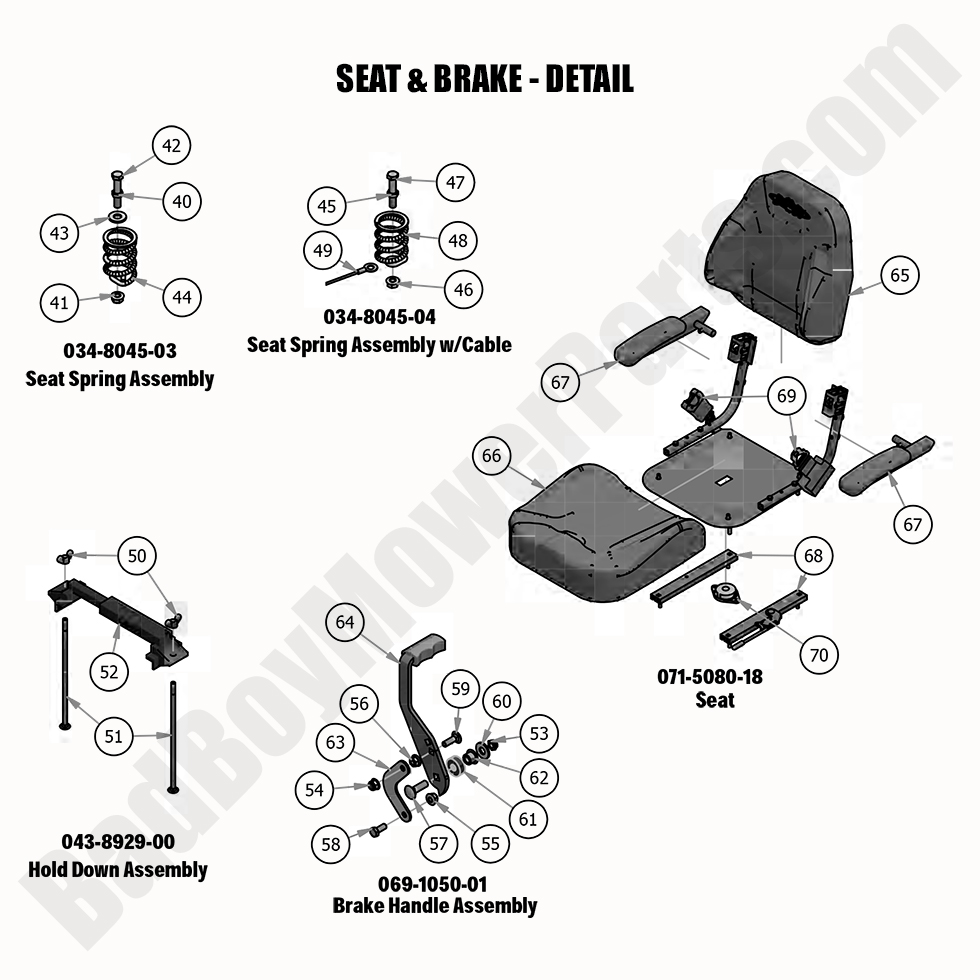

2020 Compact Outlaw - Seat and Brake - Detail

2020 Compact Outlaw - Seat and Brake - Detail

For a comfortable and safe riding experience, the 2020 Compact Outlaw Seat and Brake - Detail parts are critical. If your seat or brake components need maintenance, we provide high-quality Bad Boy Mower Parts to keep everything in top shape. Our Bad Boy Mower Part diagrams offer a clear view of the necessary parts for both the seat and brake systems, making it easier for you to find exactly what you need. With Bad Boy Lawn Mower Parts, you can replace or upgrade your seat, brake, and related components with confidence. Ordering Bad Boy Parts Online ensures fast and secure delivery, and we offer Free Shipping On Orders Over $100, so you can save on shipping costs. Visit BadBoyMowerParts.com for all the parts you need for your 2020 Compact Outlaw Seat and Brake - Detail.

Bad Boy Mower Parts Lookup

2020 Compact Outlaw - Seat and Brake - Detail
  Position Number SKU Product Title Price
40.0 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
40 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
41 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
42 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
43 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
44 034-8045-00 034-8045-00 - Seat Spring
$20.49
45.0 034-8045-04 034-8045-04 - 2017 Seat Spring Assy. With Cable
$31.09

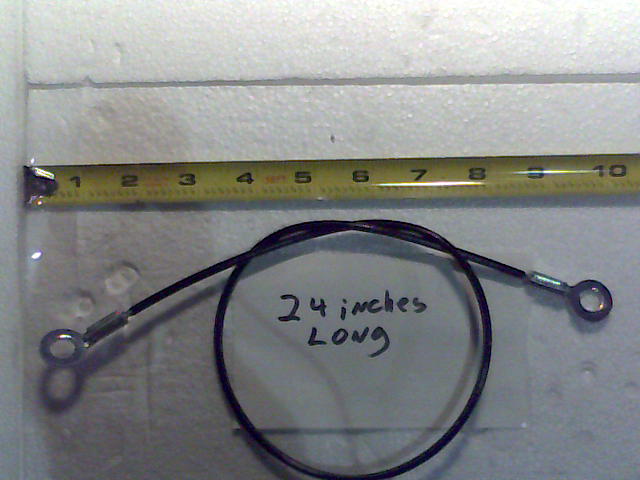

49 064-8081-00 064-8081-00 - Seat Cable
$15.60
50.0 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
50 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
51 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
53 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
54.0 069-1050-01 069-1050-01 - Brake Handle Assembly
$21.39

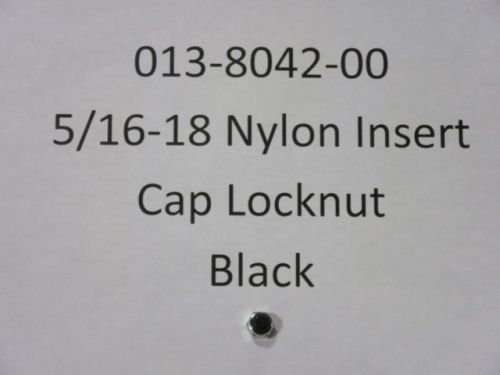

54 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
55 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
56 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
57 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
58 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
59 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
61 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
62 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
63 039-0150-00 039-0150-00 - Brake Cable Adapter Bracket (See Models Used On For Details)
$18.72
64 069-1050-00 069-1050-00 - Brake Handle Cam Over (See Models Used On For Details)
$18.45
65.0 071-5080-18 071-5080-18 - 2019-2020 Maverick Seat/Compact Outlaw Seat
$599.99

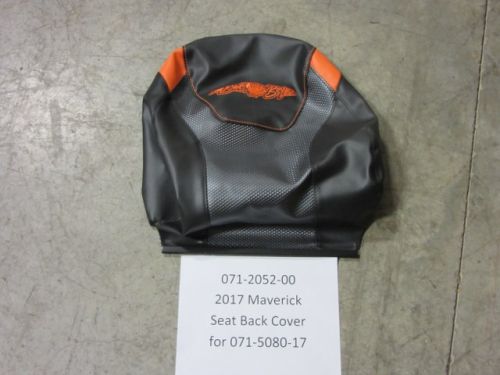

65 071-2052-00 071-2052-00 - Back Cover For 071-5080-17
$132.68

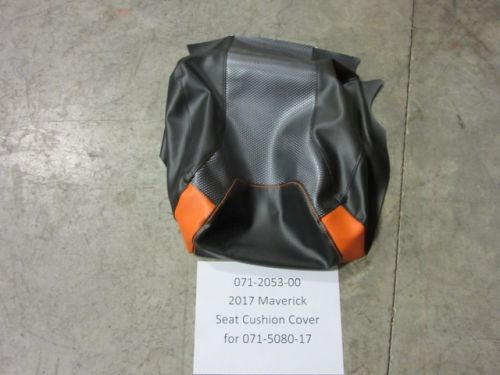

66 071-2053-00 071-2053-00 - Maverick Seat Cover 071-5080-17
$149.99

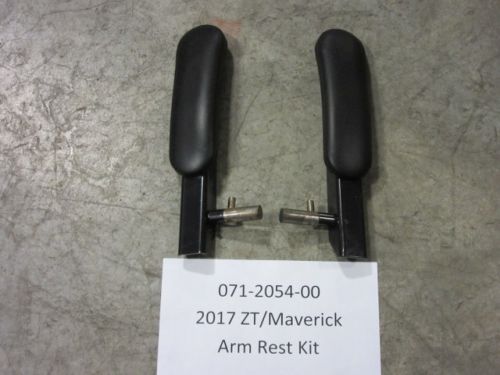

67 071-2054-00 071-2054-00 - Arm Rest Kit (See Models Used On For Details) (obsolete)
use part #071-2119-00
$139.99

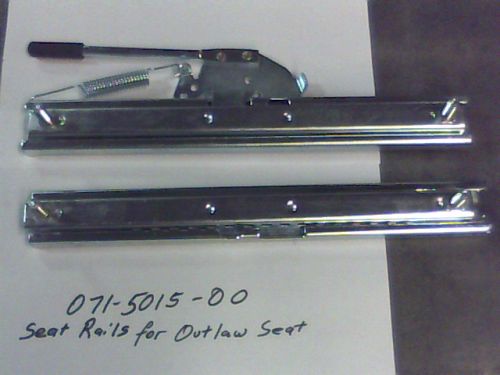

68 071-5015-00 071-5015-00 - Seat Rails
$93.69

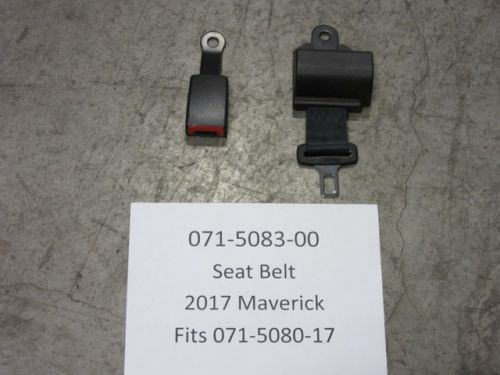

69 071-5083-00 071-5083-00 - Seat Belt (See Models Used On For Details)
$106.14
