2020 Compact Outlaw - Seat & Floorpan

2020 Compact Outlaw - Seat & Floorpan

The 2020 Compact Outlaw Seat & Floor Pan is an important part of your mower’s comfort and functionality. If you're looking for replacements or upgrades, we offer a wide selection of Bad Boy Mower Parts to keep you comfortable during use. Our Bad Boy Mower Part diagrams will help you quickly identify and locate the exact parts for your seat and floor pan. From cushioned seats to floor pan replacements, Bad Boy Lawn Mower Parts provide the high-quality solutions you need. Shopping Bad Boy Parts Online is simple, and we also offer Free Shipping On Orders Over $100, so you can get your parts delivered right to your door at no extra cost. Visit BadBoyMowerParts.com to find everything you need for your 2020 Compact Outlaw Seat & Floor Pan, ensuring comfort and performance with every ride.

Bad Boy Mower Parts Lookup

2020 Compact Outlaw - Seat & Floorpan
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
5 014-3417-00 014-3417-00 - 2017-2021 ZT Elite & 2018-2020 Compact Outlaw Cooler Cover
$76.50
6 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
7 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
8 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
9 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
10 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
11 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
12 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
13 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
14 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
15 026-1016-00 026-1016-00 - Seat Plate
$102.11

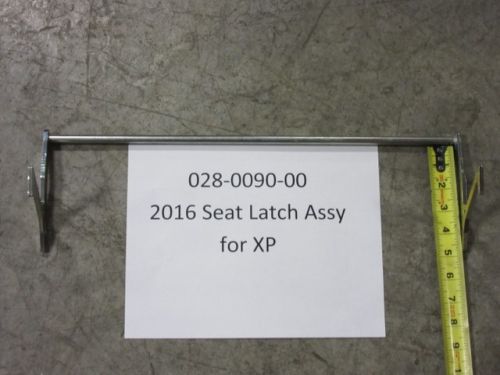

16 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
17 029-4010-00 029-4010-00 - Button Bumper
$2.99
18 029-7038-00 029-7038-00 - 8 Bumper
$28.32
19 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99

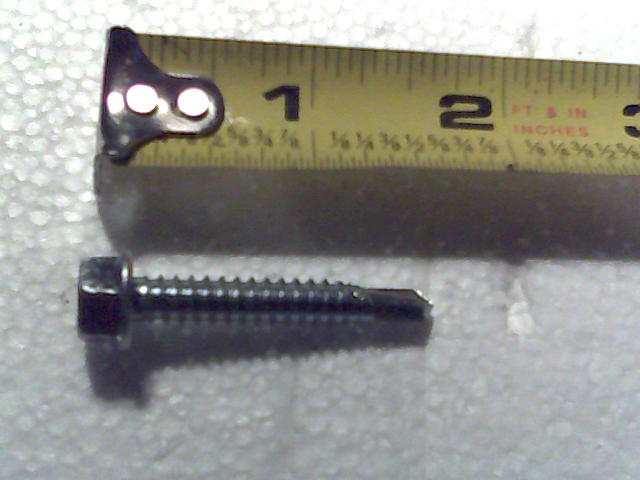

20 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
21 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
22 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
23 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09

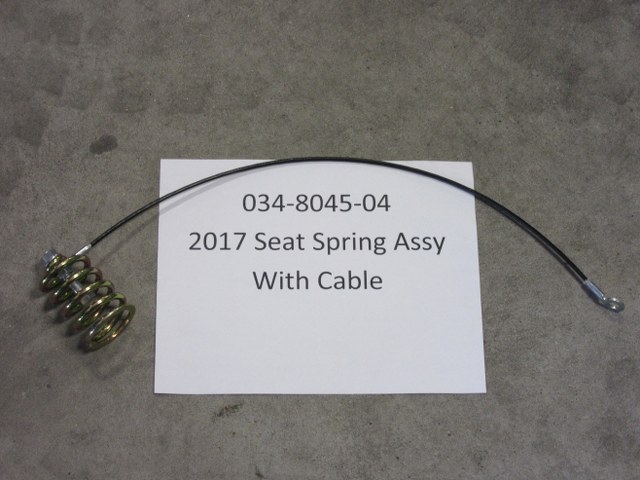

24 034-8045-04 034-8045-04 - 2017 Seat Spring Assy. With Cable
$31.09

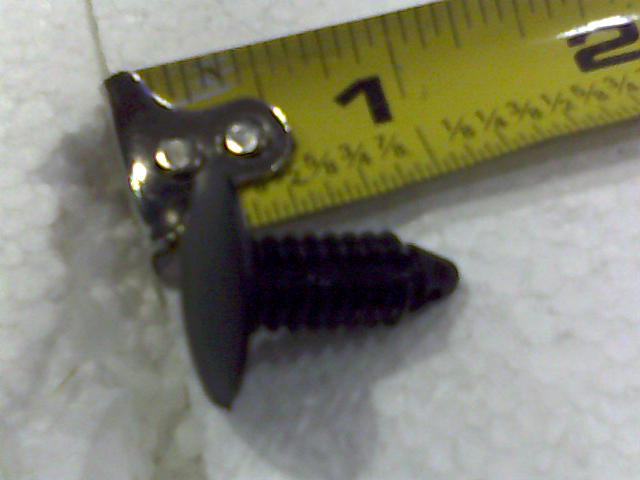

25 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
26 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
28 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
29 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
30 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
31 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
33 069-1050-01 069-1050-01 - Brake Handle Assembly
$21.39
34 070-5500-18 070-5500-18 - 2018-2021 Compact Outlaw Frame
$1099.99

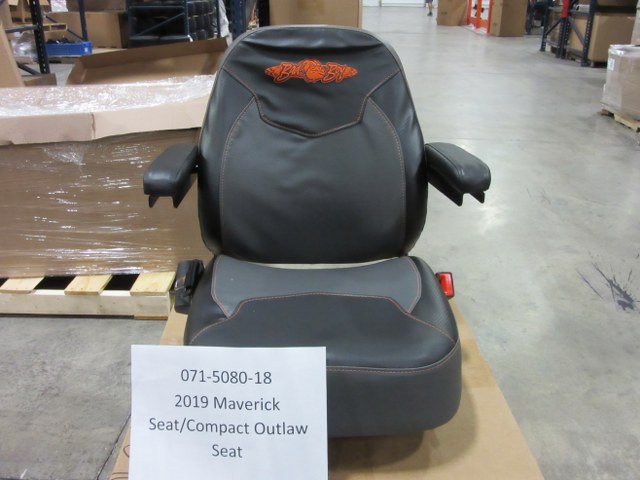

35 071-5080-18 071-5080-18 - 2019-2020 Maverick Seat/Compact Outlaw Seat
$599.99
36 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
37 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
38 081-4000-00 081-4000-00 - 2017-2021 Floor Mat (See Models Used On For Details)
$62.48
39 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
